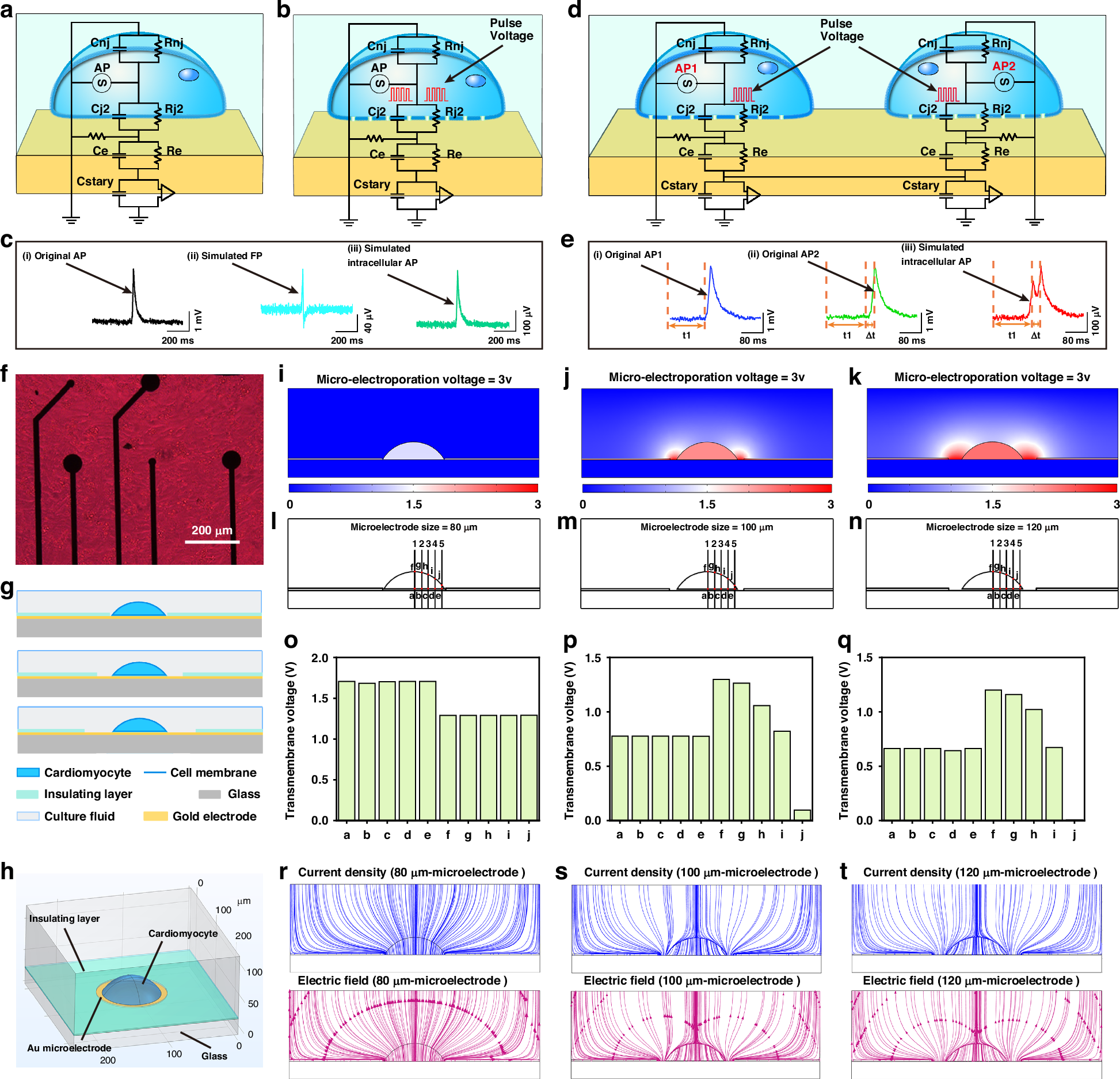

Fig. 2: Simulation model of intracellular AP recordings and cell-electrode interface for simulated micro-electroporation.
