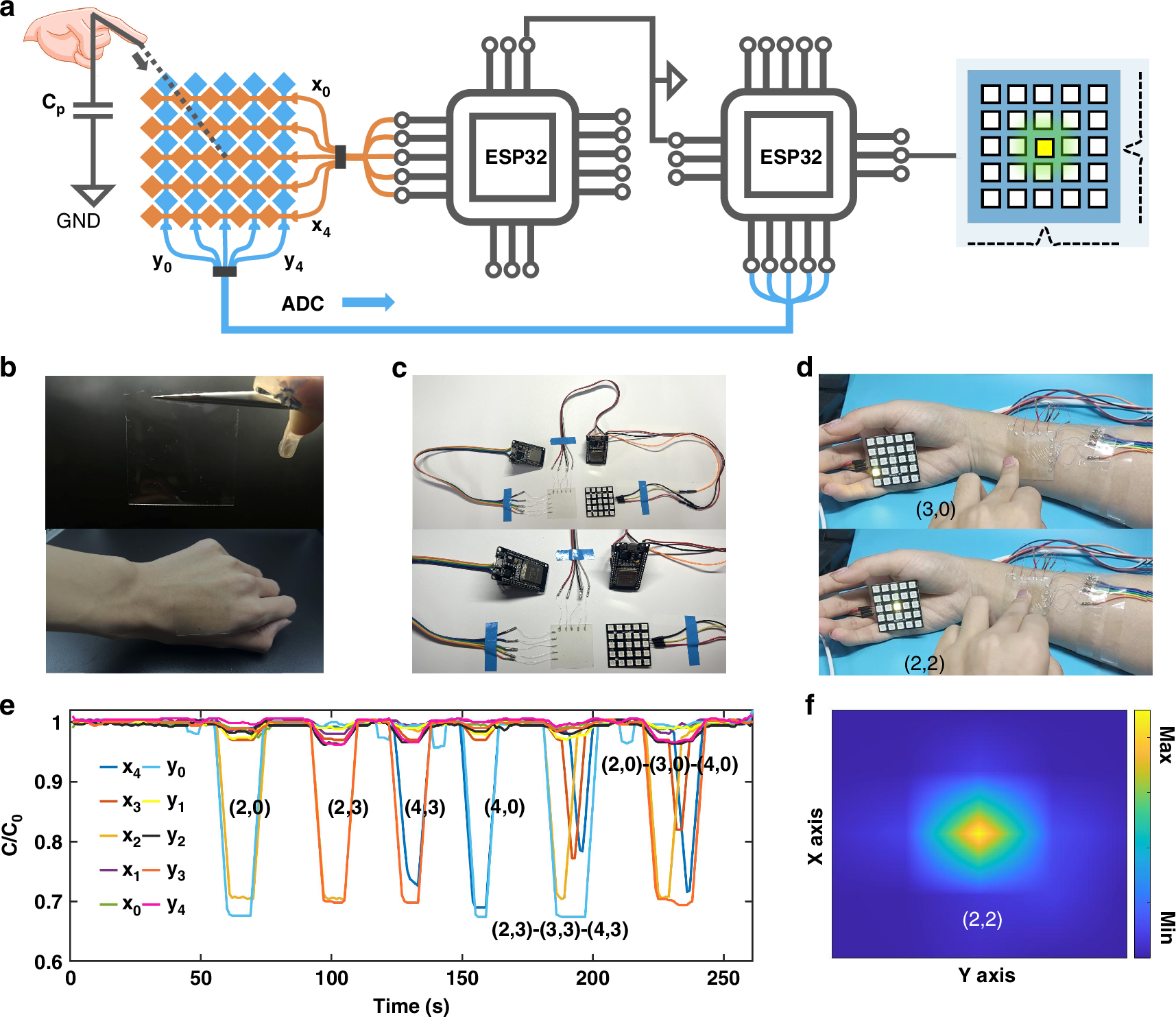

Fig. 5: Tactile system based on the DA-AgNW patterns.
From: Patterning silver nanowire network via the Gibbs–Thomson effect
a Schematic of the optoelectronic interactive tactile system. Photographs of b the tactile sensor on the skin, c the system, and d working demonstration of touch-responsive LED lighting. e Relative capacitance variation of the sensor array in response to single-pixel touch and sliding gestures along a row or column of pixels. f Capacitance map of ΔCXY/CX0Y0 induced by touching the position (2,2) showing the local capacitance variation during a single-point touch
