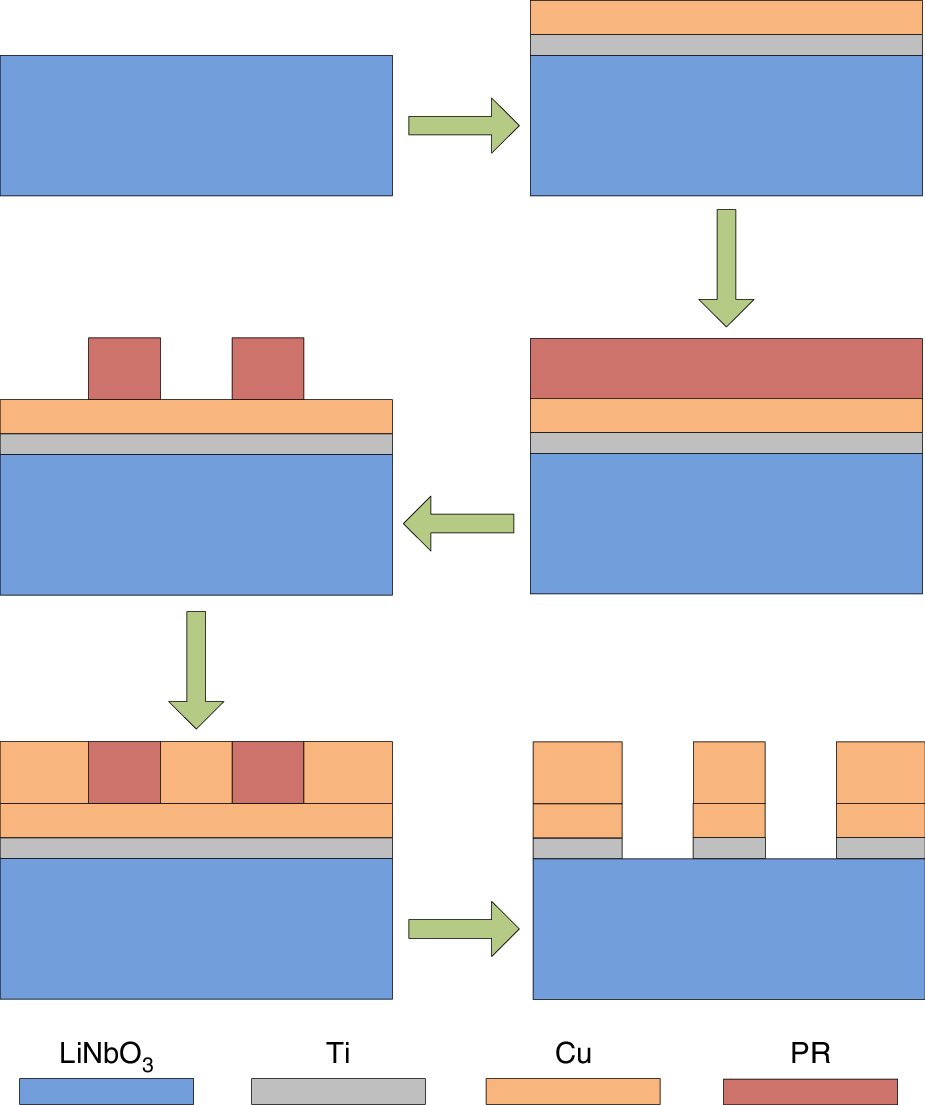

Fig. 6: Fabrication process flow of LN-based millimeter-wave BPF chips.
From: Ultra-small millimeter-wave filter chips based on high-K single-crystal lithium niobate
The fabrication process with high production efficiency, short processing cycle, and low cost is well suited for mass production of the LN-based millimeter-wave BPF chips
