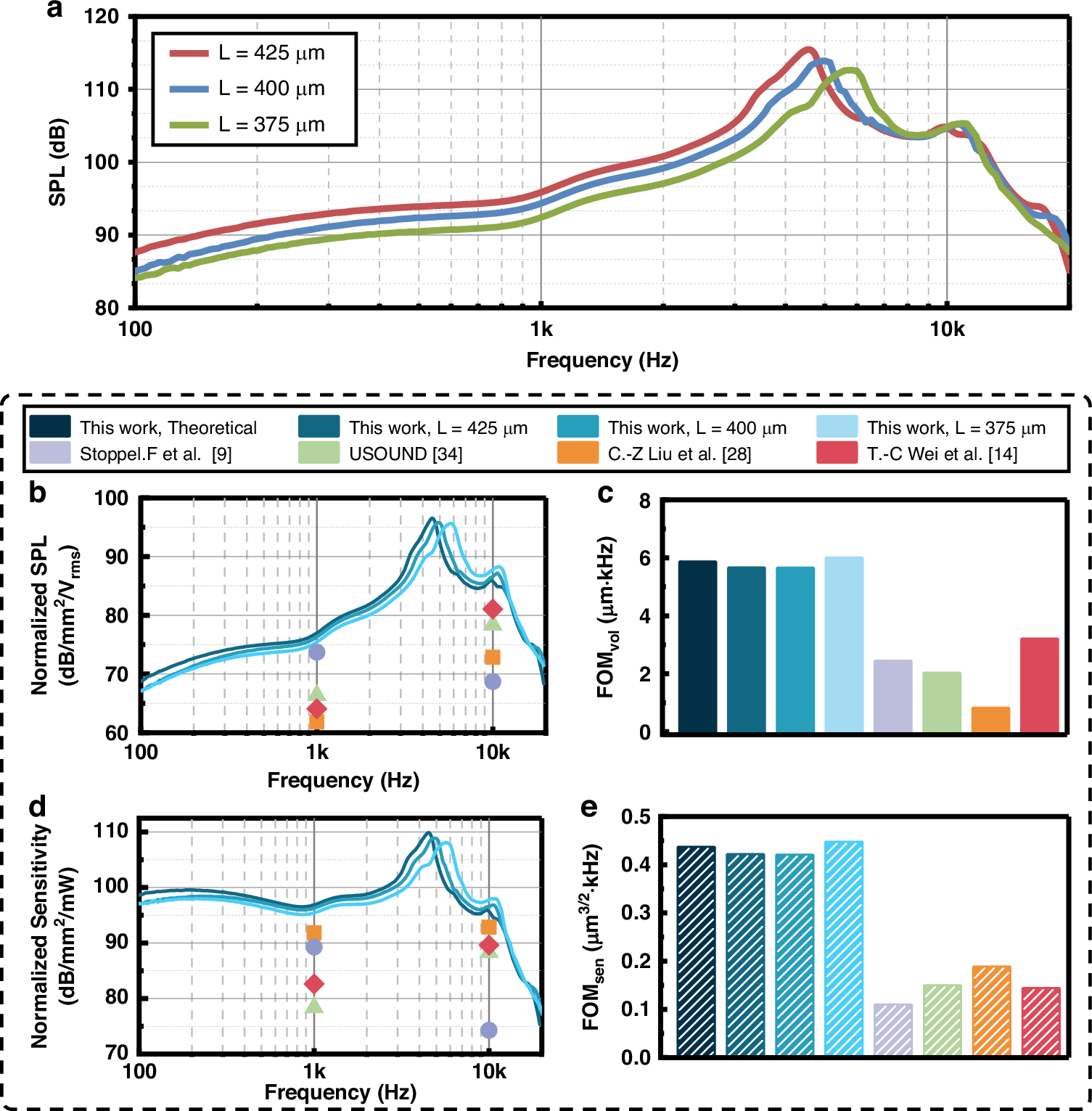

Fig. 7: Performance of the high-FOM speaker.

a SPL test results with a driving voltage of 2.5 V_rms. b–e Comparison of the proposed speaker with other designs^9,14,28,34 in terms of b normalized SPL, c FOM_vol, d normalized sensitivity, and e FOM_sen
