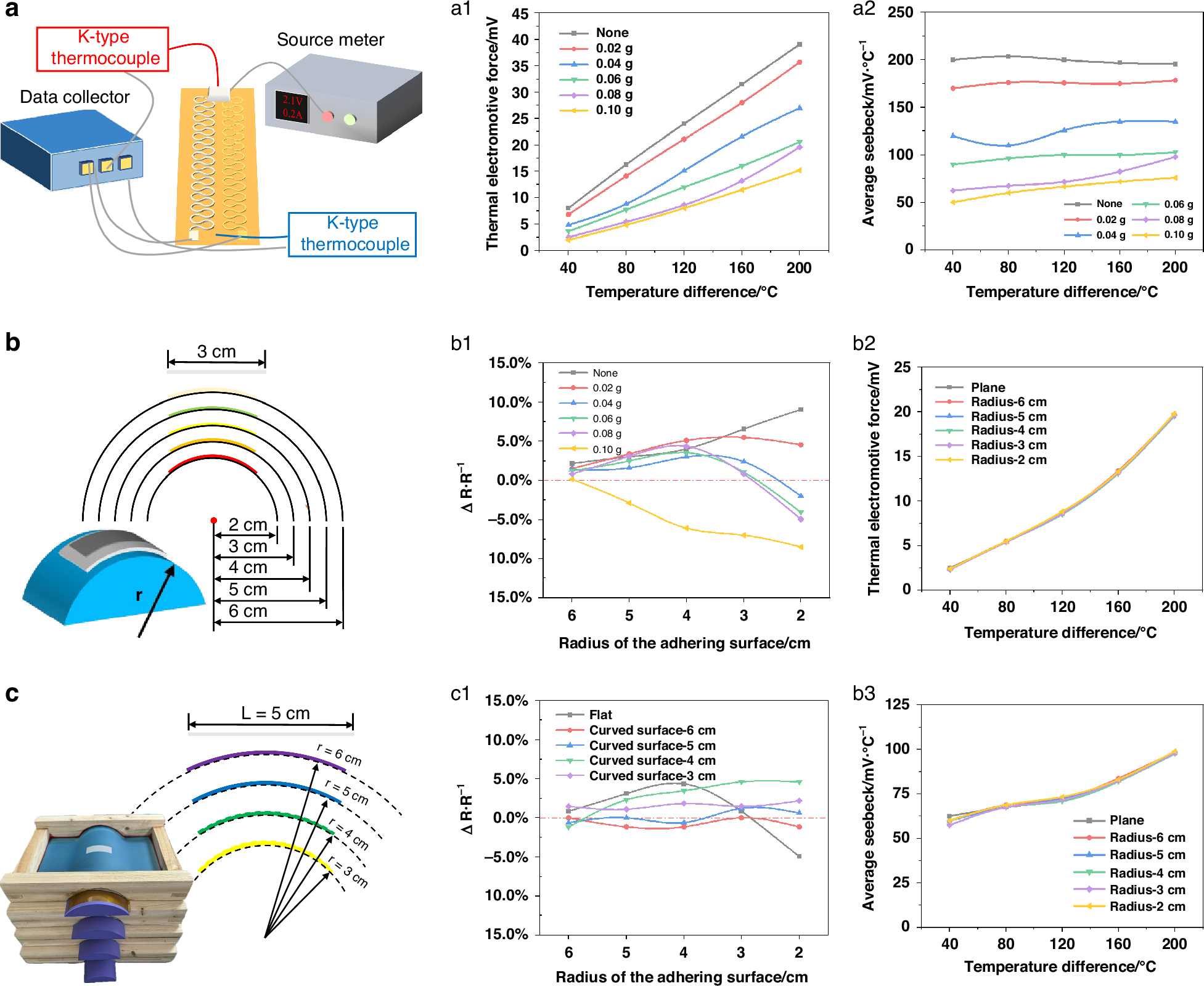

Fig. 2: Study on the co-conformal preparation process of In2O3-MWCNTs.
From: High-stability flexible thin-film temperature sensor using MWCNTs-toughened Peano structure
a Thermoelectric and Seebeck coefficient test system for the flexible temperature sensor. a1 Thermoelectric and a2 Seebeck coefficient of In2O3-MWCNTs thermo-electrodes with different gradients. b Application of the thin films (In2O3 containing different mass fractions of MWCNTs) to a circular/flat surface with a radius of 2–6 cm. b1 Resistance change rates of In2O3-MWCNTs thermo-electrodes under different curvature surfaces. b2 Thermoelectric and b3 Seebeck coefficient curves of In2O3-0.08gMWCNTs thermos-electrodes at different bending curvatures. c Co-conformal preparation process (flat surface, curved surfaces with a radius of 3–6 cm) based on screen-printing technology. c1 Relative resistance change rates of In2O3-0.08 gMWCNTs thermo-electrodes prepared on the substrates with different bending curvatures
