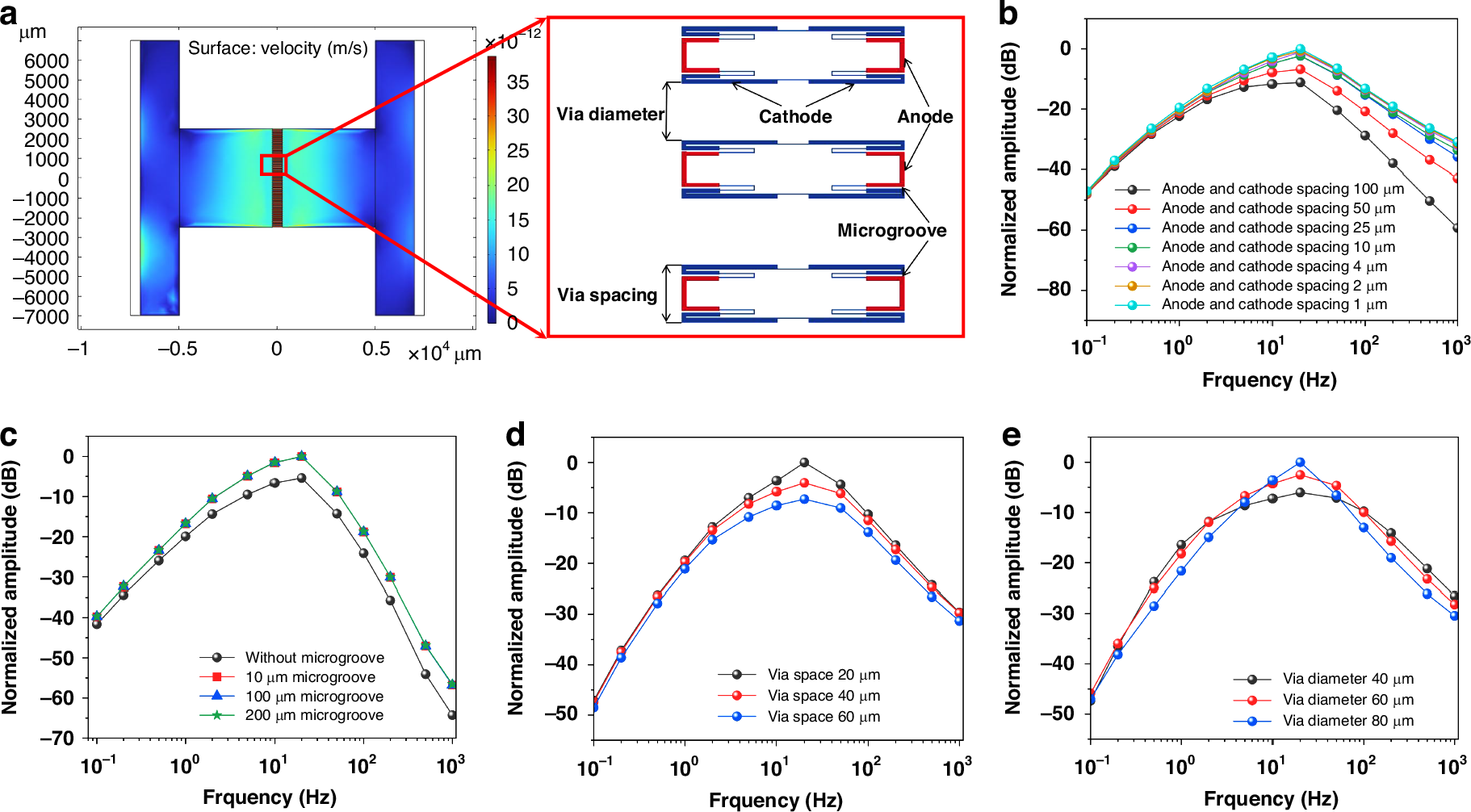

Fig. 2: Numerical simulations of the co-oscillating electrochemical vector hydrophone based on integrated microelectrodes with microgrooves.
a The simulation model. b–e Influence of the spacing between anode and cathode, microgrooves, via spacing and via diameter on overall transfer function respectively
