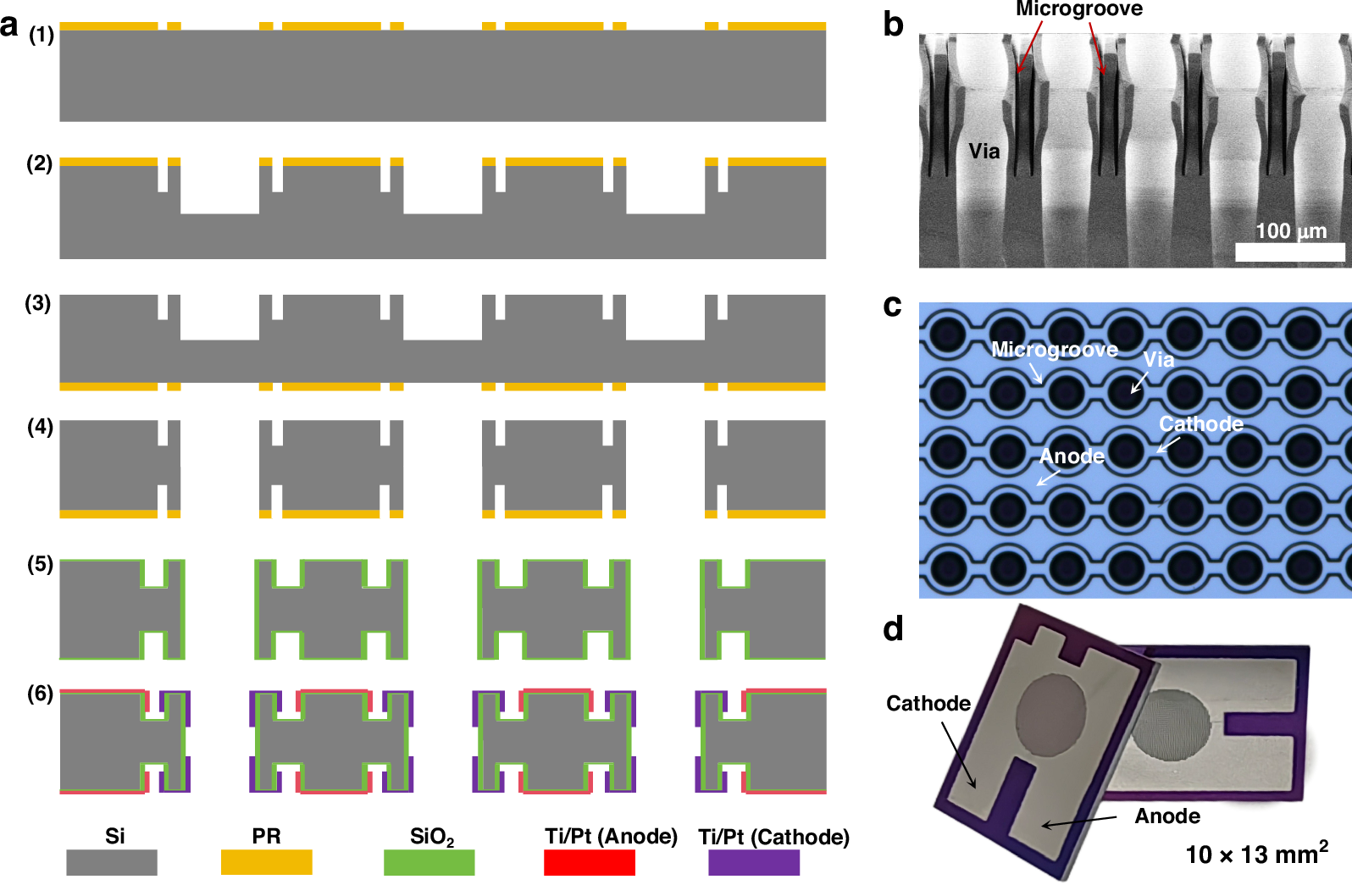

Fig. 3: Fabrication of the integrated microelectrodes with microgrooves.
The MEMS process flow chart, side SEM image, optical photograph and overall view of the proposed integrated microelectrodes are shown in (a–d) respectively
