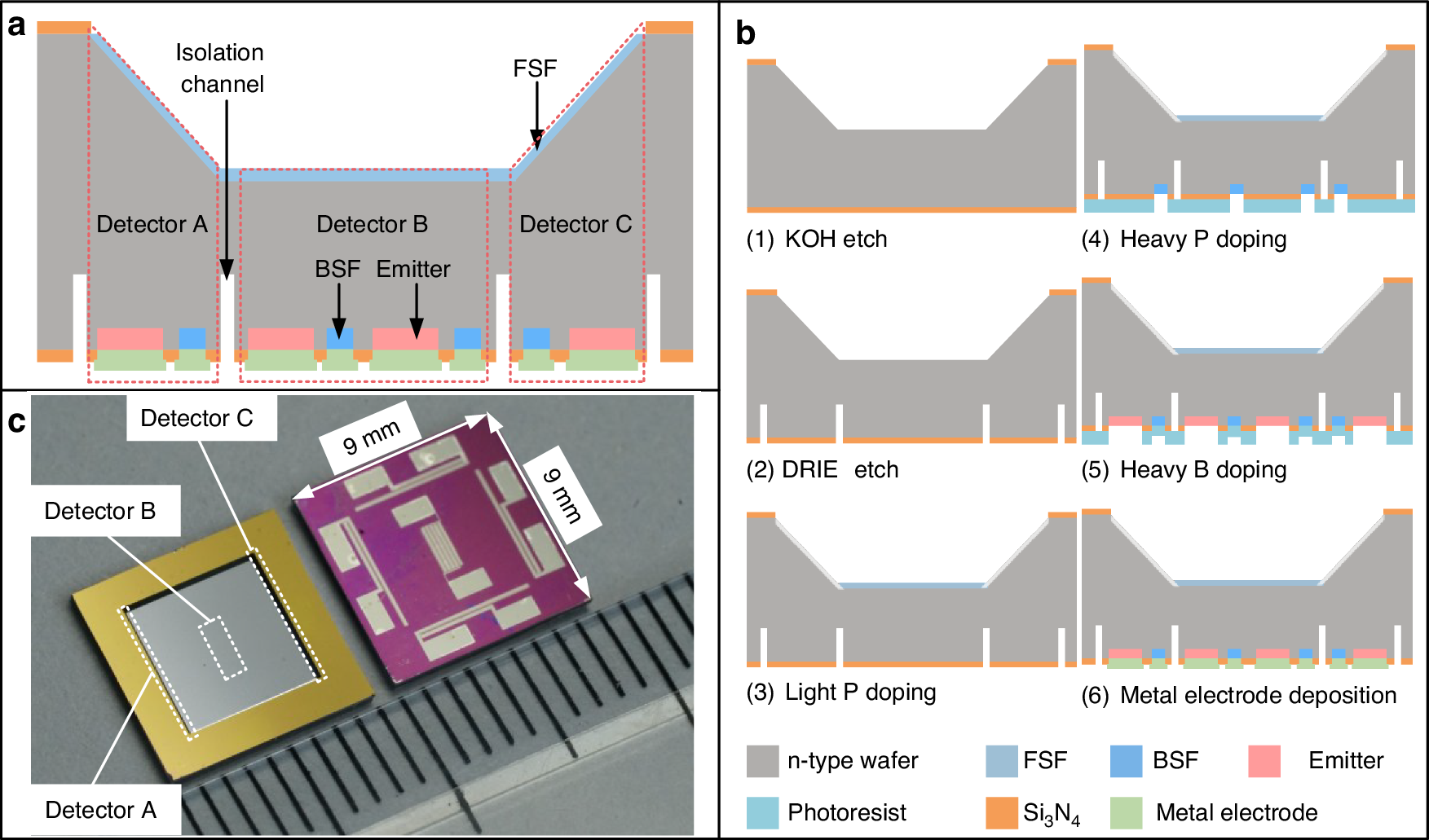

Fig. 2: Fabrication process flow and optical photograph of the MISS.

a The detailed cross-sectional view of the device. b The fabrication process of the device. c Top (left) and bottom (right) photographs of the MISS device fabricated on an n-type Si wafer
