Fig. 5: The mechanism of the noble metal species is decorating with the hollow polystyrene microspheres and TEM characterizations.

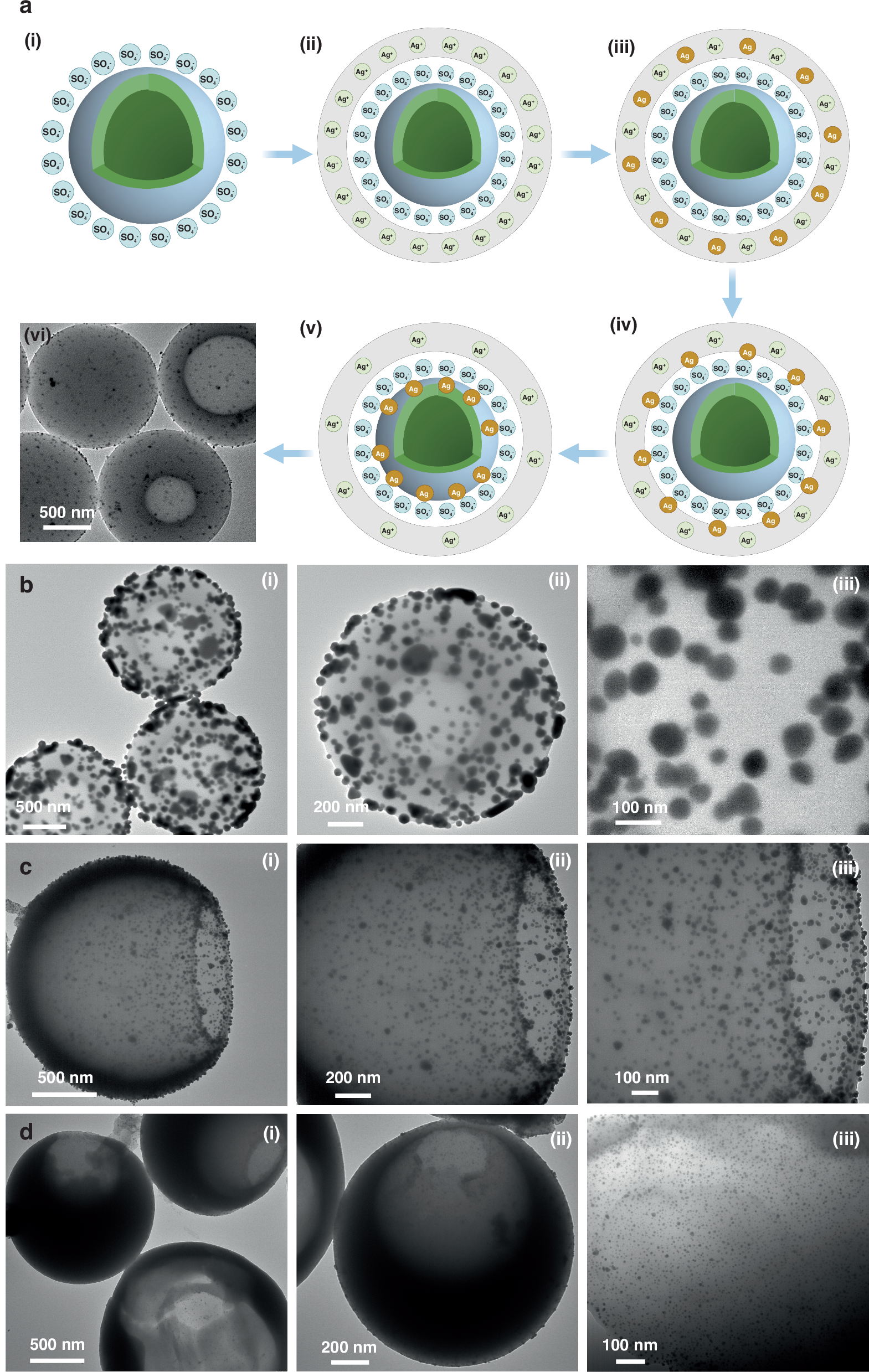

a The mechanism of Ag-loaded functional hollow polystyrene microspheres synthesis, b–d the TEM characterization results of the Ag-Au, Ag, Ag-Pt loaded PS microspheres at different magnifications
