Fig. 7: Experimental setup for impedance matching procession and temperature measurement.
From: Low-loss SAW RFID using the reflective multistrip coupler as reflectors

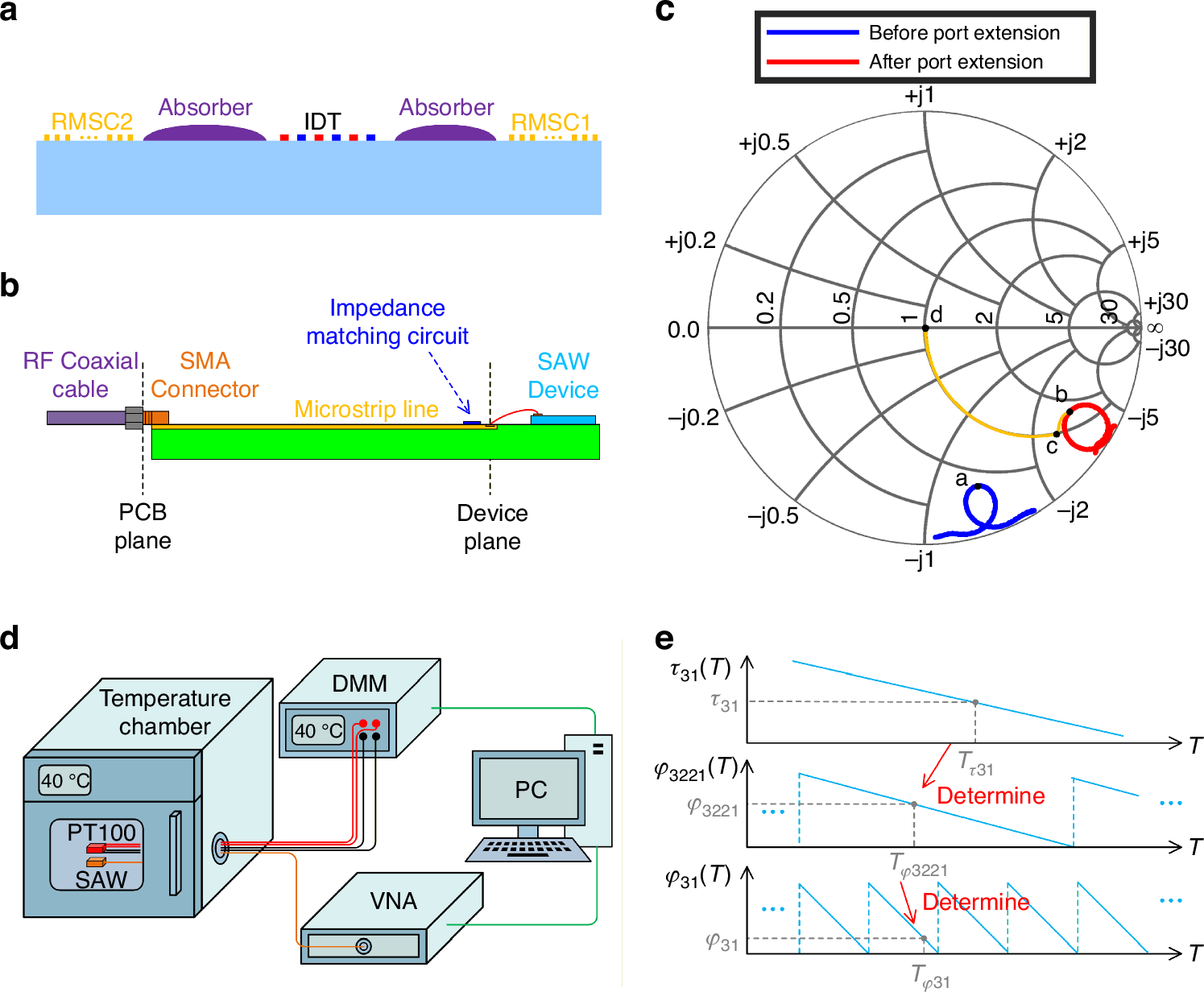

a SAW device configuration for IDTimpedance measurement. b Test fixture setup for characterizing SAW RFID properties. c Measured impedances before and afterport extension. d Schematic of the experimental setup for the RMSC SAW RFID temperature measurement. e Schematic diagramof the multistep evaluation scheme
