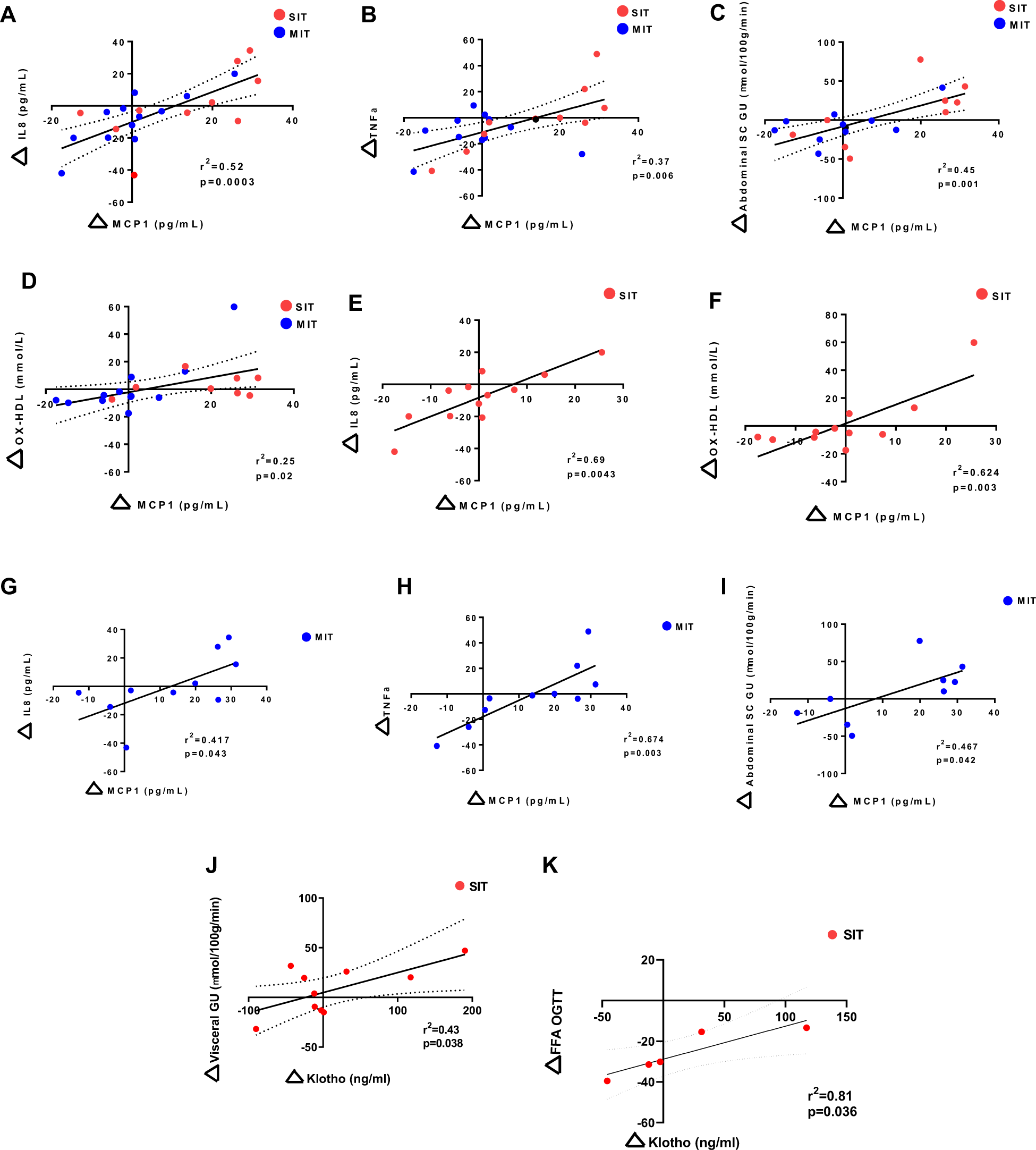

Fig. 3: Correlations between change in MCP-1 and Klotho concentrations with change in metabolic parameters.
From: Exercise intensity regulates cytokine and klotho responses in men
Pearson’s correlations between change in concentrations of MCP-1 in both training groups with change in concentrations of IL8 (a), TNF-α (b), change in abdominal subcutaneous adipose tissue glucose uptake (c), and oxidized HDL (d) in both training groups combined. Correlation after sprint interval training (SIT) between change in MCP-1 concentrations and change in concentrations of IL8 (e) and Oxidized HDL (f). Correlation after moderate intensity training (MIT) between change in MCP-1 concentrations and change in concentrations of IL8 (g), TNF-α (h), and change in abdominal subcutaneous adipose tissue glucose uptake (i). Correlation after SIT training between change in Klotho concentrations and change in visceral subcutaneous adipose tissue glucose uptake (j) and free fatty acids measured during oral glucose tolerance test (k). N = 9–12/group.
