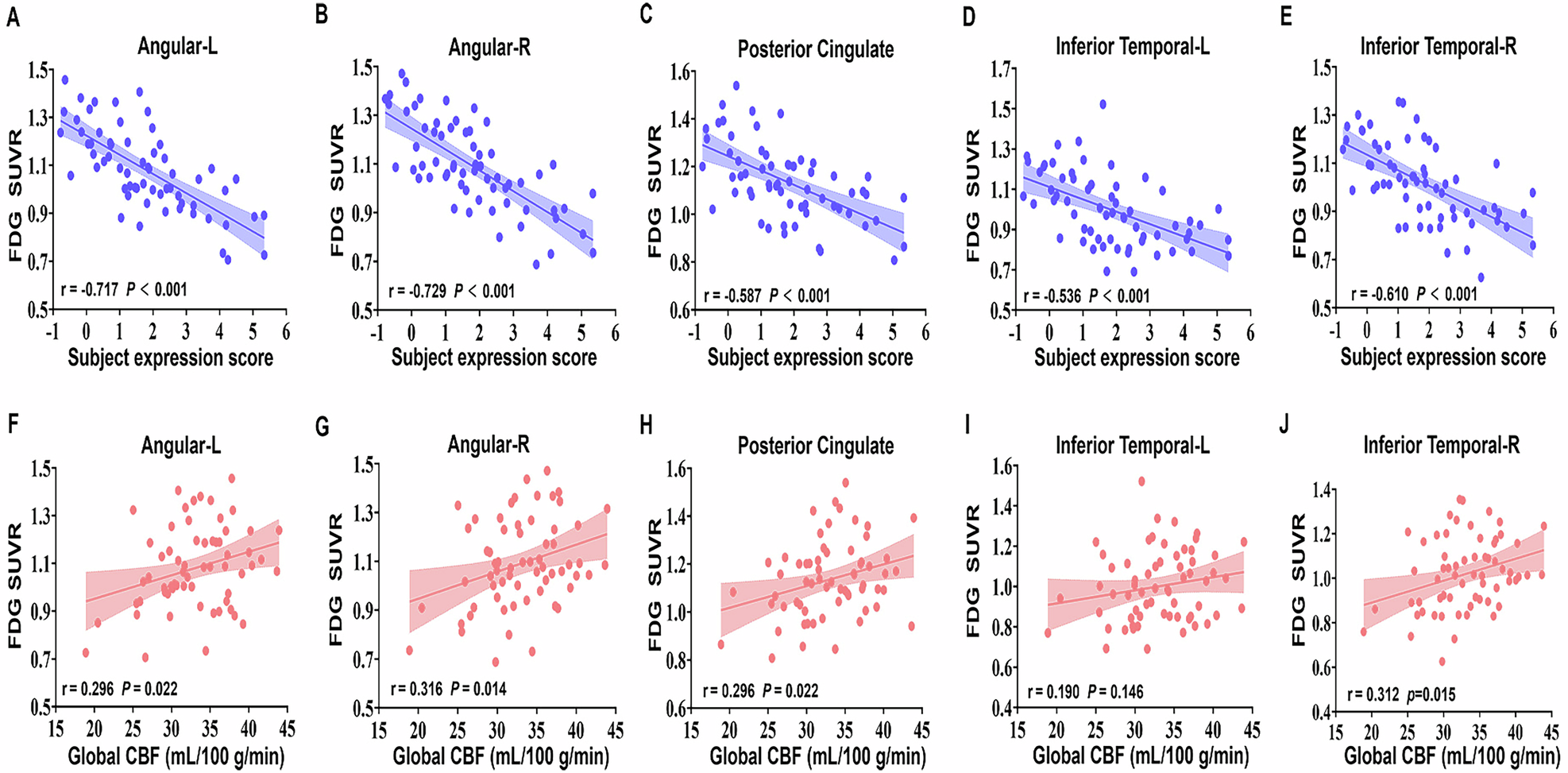

Fig. 3: Correlations between the subject expression score of the ADRP and global CBF and FDG SUVR in all ROIs in AD patients. | Translational Psychiatry

Fig. 3: Correlations between the subject expression score of the ADRP and global CBF and FDG SUVR in all ROIs in AD patients.

From: Cerebral perfusion is correlated with cerebral metabolism and amyloid deposition in Alzheimer’s disease

Fig. 3

There were negative correlations between the subject expression score of the ADRP and FDG SUVR in left angular (A), right angular (B), posterior cingulate (C), left inferior temporal (D), and right inferior temporal (E). Global CBF was positively correlated with FDG SUVR in left angular (F), right angular (G), posterior cingulate (H), and right inferior temporal (J), but not left inferior temporal (I). These correlations were identified after adjusting for age, sex and educational levels. ADRP AD-related perfusion pattern, FDG fluorodeoxyglucose, SUVR standardized uptake value ratio, CBF cerebral blood flow, L left, R right.
