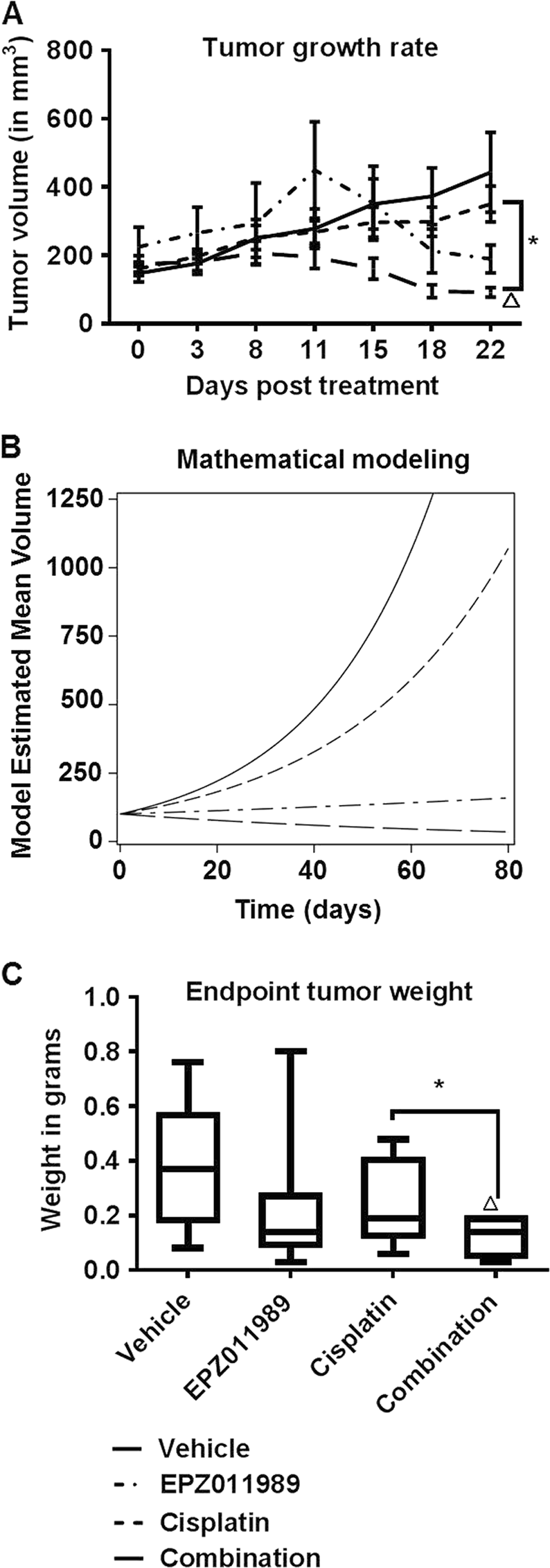

Fig. 3
HT1376 xenografts with KDM6A and ARID1A mutations are sensitive to EZH2 inhibition alone and in combination with cisplatin. a 500 mg/kg EPZ011989 alone or in combination with 3 mg/ml cisplatin reduced HT1376 tumor volume in nude mice. The Y-axis represents tumor volume in mm3 and the X-axis represents number of days in the study. There is a significant difference in the tumor growth rate between the combination treatment and cisplatin alone treatment. b Mathematical modeling of tumor growth rate indicated that the vehicle, Cisplatin, EPZ011989 would grow tumors from 100 to 1000 mm3 in 58.5, 77.7, and 399.8 days, respectively. The combination treatment is predicted to not reach 1000 mm3. c End-point tumor weights showed that the combination treatment had significantly lower tumor weight as compared cisplatin alone treatment. The Y-axis represents the tumor weight in grams and the X-axis represents the different groups. Error bars represent standard error of means of all the mice in each group. One-way ANOVA model with pairwise comparisons made as appropriate were performed to test differences between single and combination treatments. *p < 0.05, **p < 0.01, ***p < 0.001, triangle indicates significant difference as compared to vehicle, hash indicates significant difference between the EPZ011989 and cisplatin alone treatments
