Fig. 4: Mutant KBTBD4 enhances stemness of medulloblastoma cells. | Cell Death & Differentiation

Fig. 4: Mutant KBTBD4 enhances stemness of medulloblastoma cells.

From: Disease-associated KBTBD4 mutations in medulloblastoma elicit neomorphic ubiquitylation activity to promote CoREST degradation

Fig. 4: Mutant KBTBD4 enhances stemness of medulloblastoma cells.

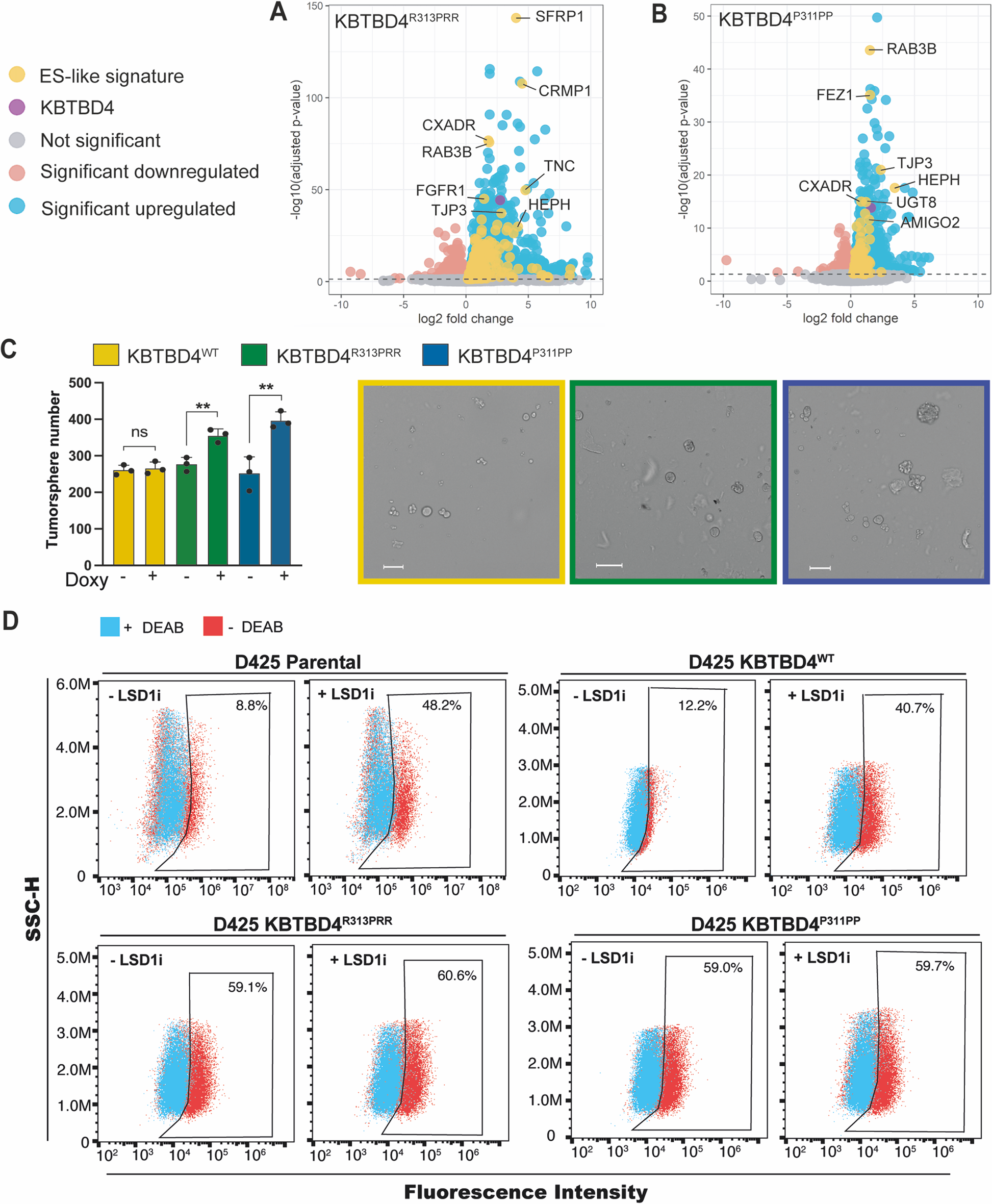

Volcano plot showing upregulated ES-like signature genes (yellow dots). RNA-seq upregulated genes (P-adjust <0.05) between (A) KBTBD4R313PRR and (B) KBTBD4P311PP treated with doxycycline compared to untreated samples. C Tumorsphere-forming capacity of D283Med cells in which KBTBD4WT, KBTBD4R313PRR or KBTBD4P311PP expression was induced with doxycycline (doxy+) compared to untreated controls (doxy−). Quantification of 3 independent experiments (bar chart) and representative pictures of doxycycline-induced cells (scale bar denotes 100 µm). D Aldehyde dehydrogenase (ALDH) activity, measured as percentage of ALDH positive cells, of D425Med parental cells or, D425Med cells expressing KBTBD4WT, KBTBD4R313PRR or KBTBD4P311PP+/− LSD1i treatment (0.5 µM for 24 h). [N,N-diethylaminobenzaldehyde (DEAB), ALDH inhibitor]. P values (**P < 0.005 and ****P < 0.00005) were calculated by paired and two‐tailed t‐test.
