Introduction

Solid tumors are complex tissues comprising cancer cells and various components of the tumor microenvironment (TME). The TME includes resident and infiltrating cells, as well as extracellular matrix (ECM), which provides a structural scaffold for cells while dynamically influencing cancer growth, progression, and metastasis. Beyond defining tumor architecture, the ECM contributes to the mechanical properties of tumors, such as stiffness and elasticity, and serves as a reservoir of soluble factors, including growth factors [1, 2].

Both cancer and stromal cells maintain the ECM homeostasis through continuous deposition and remodeling. Aberrant ECM deposition and structural modifications contribute to the mechanical and biochemical properties of the tumor, fostering a pro-tumorigenic microenvironment [3]. Alterations in ECM composition and organization are increasingly recognized as drivers of tumor progression and metastasis, with enhanced ECM deposition, or desmoplasia, often correlating with poor clinical outcomes in cancers such as colorectal, renal, cervical, lung, and breast cancers [4,5,6].

Vascular Endothelial Growth Factor Receptor 2 (VEGFR2) is a classical tyrosine kinase receptor involved in tumor vascularization. However, increasing evidence highlights its pro-oncogenic effects independent of its pro-angiogenic role. VEGFR2 regulates cancer cell proliferation, migration, and metabolic adaptation [7].

An aberrant VEGFR2 activation has been described in different cancers, including colon cancer and melanoma [8, 9]. Pan cancer analysis suggests that this activation can result from somatic mutations and gene amplifications in VEGFR2 gene highlighting these alterations in melanoma samples, as well as from the ligand dysregulation such as the overexpression of VEGF in ovarian cancer [9,10,11]. Despite these observations, the direct involvement of tumor cell-intrinsic VEGFR2 in ECM remodeling and its implications for cancer progression remain largely unexplored.

In this study, we investigate how aberrant VEGFR2 activation in tumor cells, through the expression of an oncogenic mutant or dysregulation of receptor levels, impacts on ECM composition and dynamics in melanoma and ovarian cancer models. We demonstrate that VEGFR2 in the tumor regulates tumor ECM remodeling, contributing to an altered tumor microenvironment that promotes tissue fluidity, tumor growth, and progression, promoting alterations that support at least in part tumor growth.

These effects are mediated, at least in part, through ERK/MAPK signaling, a key pathway downstream of VEGFR2 activation. Furthermore, we identify that VEGFR2-targeting tyrosine kinase inhibitors, such as lenvatinib, at least partially reversing these ECM alterations, reducing its deposition and restoring its structural organization both in vitro and in vivo.

Results

Aberrant activation of VEGFR2 drives the remodeling of tumor extracellular matrix

Recently we showed that the presence of substitution R1032Q in VEGFR2 induced receptor aberrant activation and enhanced tumor growth [8, 12]. To deepen the effects of this hyperactivation VEGFR2WT or VEGFR2R1032Q receptors were stably expressed in Sk-Mel-31 melanoma cells and subcutaneously injected in NOD/SCID mice. The expression of VEGFR2R1032Q resulted in a significantly faster Sk-Mel-31 tumor growth (Fig. 1A), with a mean tumor volume measured at the endpoint of 237.1 ± 151.3 mm3 in VEGFR2WT Sk-Mel-31-derived tumors compared to 564.3 ± 238.9 mm3 in VEGFR2R1032Q Sk-Mel-31 group. This data was further corroborated by increased tumor weight at 40 days (Fig. 1B), confirming enhanced tumorigenic potential in a human skin melanoma model.

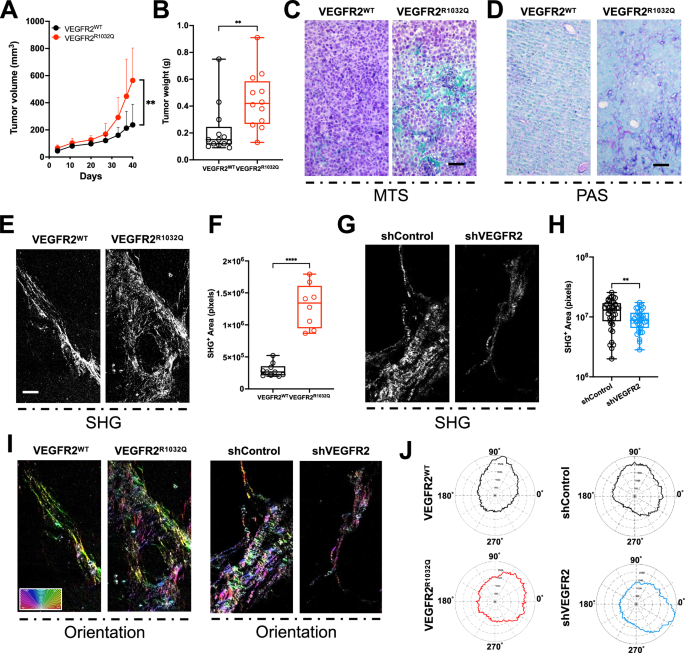

Fig. 1: Collagen fibers lost their orderly arrangement in the VEGFR2 hyperactive tumor.
figure 1

A Tumor growth curve of VEGFR2WT and VEGFR2R1032Q Sk-Mel-31-derived tumor. Data are presented as the mean ± standard deviation (n = 11–12). Statistical significance was determined by mixed-effects analysis with uncorrected Fisher’s LSD, **P < 0.01. B Tumor weight of VEGFR2WT and VEGFR2R1032Q Sk-Mel-31-derived tumor. Single data are represented as empty dots in Min to Max box & whiskers plot (n = 12–13). Statistical significance was determined by Unpaired t test, **P < 0.01. C Representative MTS staining of FFPE slices from VEGFR2WT and VEGFR2R1032Q Sk-Mel-31-derived tumors (n = 5). Scale bars, 50 µm. D Representative PAS staining of FFPE slices from VEGFR2WT and VEGFR2R1032Q Sk-Mel-31-derived tumors. Scale bars, 50 µm. E Second harmonic generation (SHG) imaging of collagen fibers in FFPE slices from VEGFR2WT and VEGFR2R1032Q Sk-Mel-31-derived tumors. Scale bars, 50 µm. F Quantification of SHG+ area in VEGFR2WT and VEGFR2R1032Q Sk-Mel-31-derived tumors. Single data are represented as empty dots in Min to Max box & whiskers plot (n = 8–10). Statistical significance was determined by two-way ANOVA ***P < 0.001. G Second harmonic generation (SHG) imaging of collagen fibers in FFPE slices from shControl and shVEGFR2 OVCAR3-derived tumors. Scale bars, 50 µm. H Quantification of SHG+ area in shControl and shVEGFR2 OVCAR3-derived tumors. Single data are represented as empty dots in Min to Max box & whiskers plot (n = 25–35). Statistical significance was determined by two-way ANOVA, **P < 0.01. I Collagen fiber orientation maps of FFPE slices from VEGFR2WT and VEGFR2R1032Q Sk-Mel-31-derived tumors. Color coding indicates fiber orientation. Scale bars, 50 µm. J Representative distribution of collagen fiber orientation angles from SHG images in VEGFR2WT and VEGFR2R1032Q Sk-Mel-31-derived tumors and from shControl and shVEGFR2 OVCAR3-derived tumors in polar plot coordinates.

Full size image

Histological analysis of tumor sections revealed distinct differences in tumor architecture. Masson’s Trichrome Stain (MTS) highlighted prominent collagen-rich fibrotic regions in VEGFR2R1032Q-derived tumors compared to VEGFR2WT samples. Notably, VEGFR2R1032QSk-Mel-31-derived tumors exhibited irregular, variable-sized nest-like structures surrounded by extracellular matrix (ECM), whereas VEGFR2WT tumors displayed smaller, more uniform nests. (Fig. 1C). In skin melanoma, the presence of nest-like structures is often associated with rapid ECM remodeling [13]. Periodic acid-Schiff (PAS) staining further confirmed the higher accumulation of collagen, polysaccharides, and other matrix components in VEGFR2R1032Q expressing tumors (Fig. 1D).

To provide a more detailed characterization of the ECM, we performed label-free second harmonic generation (SHG) imaging on paraffin-embedded (FFPE) tissue sections. Quantitative analysis of SHG-positive areas indicated a greater signal in VEGFR2R1032Q-derived tumor sections compared to VEGFR2WT (Fig. 1E, F). This induced us to investigate the ECM remodeling in an alternative VEGFR2-dependent cancer model. To this we analyzed ovarian cancer (OVCAR3) cell tumor-derived in which VEGFR2 was silenced by shRNA lentiviral particles. Of note, in OVCAR3-derived tumors, VEGFR2 phosphorylation was high (Supplementary Fig. 1A) with a parallel abundance of ECM as demonstrated by H&E and Masson’s staining (Supplementary Fig. 1B, C).

As anticipated, the VEGFR2 silencing reduced the SHG-positive area in xenograft tumors (Fig. 1G, H). Then, we investigated the fibril orientation in ECM in Sk-Mel-31 and OVCAR3-derived tumor sections using the OrientationJ plugin of ImageJ, which provide a visual representation of fibril orientation distribution within the ECM [14]. The color-coded angle distribution (Fig. 1I), along with the polar coordinate representations (Fig. 1J), confirmed a disorganized distribution of fiber pattern and a significant difference in ECM orientation in tumors with aberrant VEGFR2-activations.

To reconstruct 3D tissue structure SHG analysis was performed on optically cleared Sk-Mel-31-derived tumors (Fig. 2A). Collagen fibers orientation was quantified using a MATLAB script calculating the variance index and azimuthal angles [15].

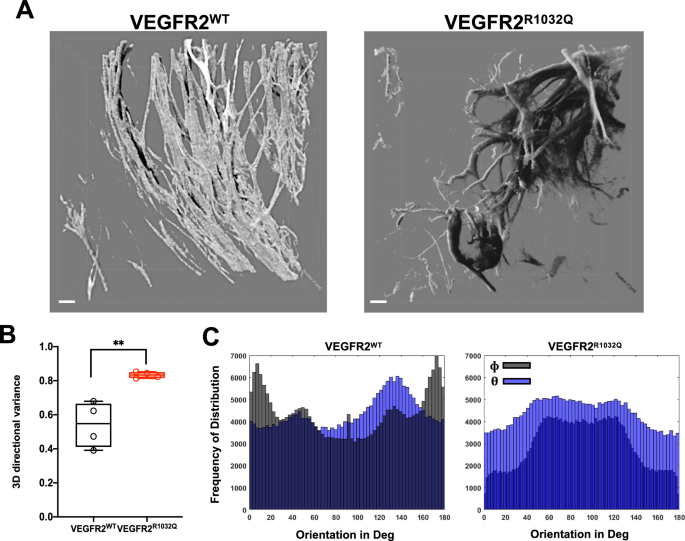

Fig. 2: Collagen fibers reorganized random in VEGFR2R1032Q Sk-Mel-31 derived tumors.
figure 2

A Representative 3D renderings of collagen organization using SHG analysis in VEGFR2WT and VEGFR2R1032Q Sk-Mel-31-derived tumors. Scale bars 20 µm (n = 4). B Quantification of 3D directional variance of collagen orientation. Single data are represented as empty dots in Min to Max box & whiskers plot (n = 4). C Representative frequency distribution of collagen orientation angles (Φ and Θ) in VEGFR2WT and VEGFR2R1032Q tumors (n = 4). Statistical significance was determined by two-way ANOVA, **P < 0.01.

Full size image

Consistent with the 2D findings, VEGFR2R1032Q Sk-Mel-31-derived tumors exhibited higher variance in 3D spatial topology, reflecting a more random ECM arrangement (Fig. 2B). In line with this data, the distribution of azimuthal angles φ and θ was more widely distributed in SK-Mel-31-VEGFR2R1032Q samples (Fig. 2C).

Expression of VEGFR2R1032Q alters the gene expression profile of melanoma

To investigate the effects of VEGFR2R1032Q expression on ECM dynamics, the transcriptomic profile of Sk-Mel-31 derived tumors were generated using Clariom_S Affymetrix microarray chips. The analysis identified 893 human genes differentially expressed in VEGFR2R1032Q Sk-Mel-31-expressing tumors compared to those expressing VEGFR2WT. Among these, 296 genes (33.15%) were upregulated. In comparison, 597 genes (66.85%) were downregulated (Fig. 3A and Supplementary Table 1). Gene ontology (GO) enrichment analysis for biological processes, performed using ShinyGO 0.76, highlighted extracellular structure organization, extracellular matrix organization, and external encapsulating structure organization as the top-ranked enriched pathways. These pathways exhibited enrichment FDR values ranging from 0.000559 and 0.00404. The corresponding −Log (FDR) values for the top three enriched processes were 2.49, 2.43, 2.41, respectively, as illustrated in the lollipop chart (Fig. 3B) and the hierarchical clustering tree (Fig. 3C). While transcriptomic analysis did not reveal significant changes in the expression of structural ECM proteins, as confirmed by qPCR (Fig. 3D), several genes related to ECM dynamics were significantly modulated in VEGFR2R1032Q Sk-Mel-31-derived tumors (Fig. 3E). Among the upregulated genes were ITGA11, ADAMTS6, and P3H2, which are involved in ECM remodeling. ADAMTS6 [16] encodes a disintegrin involved in protein metabolism and post-translational O-glycosylation of mucins, while P3H2 contributes to post-translational collagen IV modification [17], and ITGA11 plays a role in integrin-mediated collagen adhesion [18].

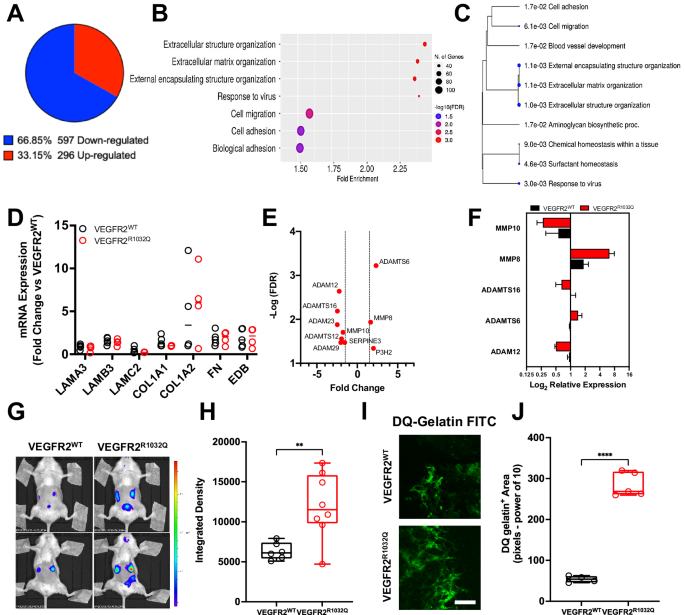

Fig. 3: Transcriptomic and functional analysis of ECM remodeling in VEGFR2WT and VEGFR2R1032Q Sk-Mel-31-derived tumors.
figure 3

A Pie chart of differentially expressed genes in VEGFR2R1032Q Sk-Mel-31-derived tumors vs VEGFR2WT, upregulated (red) and downregulated (blue) genes (n = 4). B Gene ontology (GO) enrichment analysis of differentially expressed genes. Bubble size represents the number of genes associated with each term, and color indicates significance. C Hierarchical clustering of enriched biological processes. D mRNA expression levels of ECM components. Data are presented as fold change relative to VEGFR2WT Sk-Mel-31-derived tumors. Data comes from n = 2 independent experiment and from n = 4–5 replicates. E Volcano plot of differentially expressed ECM-modifying enzymes. Dashed lines indicate significance thresholds. F Log2 relative expression of MMPs and ADAMTS proteases in VEGFR2WT -and VEGFR2R1032Q Sk-Mel-31-derived tumors. Data comes from n = 2 independent experiment and from n = 3 replicates. G In vivo imaging of proteolytic activity using MMPSense probes in tumor-bearing mice. H Quantification of fluorescence signal intensity. Single data are represented as empty dots in Min to Max box & whiskers plot (n = 6–8). Statistical significance was determined by two-way ANOVA, **P < 0.01. I Ex vivo imaging of proteolytic activity using DQ-gelatin probe. Scale bar, 50 µm. J Quantification of DQ-gelatin degradation area. Single data are represented as empty dots in Min to Max box & whiskers plot (n = 4–5). Statistical significance was determined by two-way ANOVA, ***P < 0.001.

Full size image

Conversely, several ECM-related genes were downregulated, including ADAM12, COL18A1, AGRN, MATN3, ITGB6, ITGB8, and TGFβ1. These genes are associated with structural ECM integrity and cell-matrix interactions. COL18A1 [19], AGRN [20] and MATN3 [21] play a role in ECM structure contributing to the formation of extracellular filamentous networks, while ITGB6 and ITGB8 mediate integrin-dependent cell-fibronectin interactions [22]. ADAM12 encodes a protease with a cysteine-rich domain involved in ECM remodeling and cell adhesion [23], whereas TGFβ1 plays a crucial regulatory role in ECM composition and fibrosis [24]. The expression of these ECM-related genes was validated by qPCR (Fig. 3F). Matrix remodeling activity was further investigated in vivo using the MMPsense 750 Fast Fluorescent Imaging Agent. Luminescence was significantly higher in VEGFR2R1032Q Sk-Mel-31-derived tumors reflecting increased matrix remodeling activity (Fig. 3G, H). These results were corroborated ex vivo by probing tumor fragments with DQ-gelatin FITC, where from enzymatic cleavage of the substrate release fluorescence, further confirming matrix remodeling in VEGFR2R1032Q Sk-Mel-31-derived tumors (Fig. 3I, J).

ECM controls tissue fluidity

To mimic the effects of a remodeled ECM on cancer cell behavior in vitro, we established a decellularization protocol to obtain ECM (dECM) produced by cancer cells in vitro (Fig. 4A). Since ECM remodeling influences tissue fluidity, the transition of tissue from a solid-like state to a fluid-like state, we analyzed the fluidity of confluent monolayers of VEGFR2WT and VEGFR2R1032Q Sk-Mel-31. To this, VEGFR2WT Sk-Mel-31 monolayer cells, followed by time-lapse video microscopy for 16 h, displayed higher fluidity compared to the Sk-Mel-31 expressing mutated VEGFR2 (Fig. 4B–D). Next, the syngeneic Sk-Mel-31 cells were plated onto dECM derived from VEGFRWT Sk-Mel-31 or VEGFRR1032Q Sk-Mel-31 cells. Adhesion to dECM derived from VEGFR2R1032Q SK-Mel-31 cells significantly increased the fluidity of VEGFR2WT Sk-Mel-31 monolayer (Fig. 4B–D), while adhesion to dECM from VEGFR2WT cells, did not alter their behavior. In contrast, the fluidity of VEGFR2R1032Q Sk-Mel-31 cells remained unchanged regardless of the dECM origin (Fig. 4B–D). Mechanistically, tissue fluidity is governed by signaling pathways that regulate cytoskeletal dynamics and cellular motility. Mitochondria provides energy and biosynthetic precursors required for cytoskeletal remodeling and adaptation to the dynamic extracellular matrix. In keeping with results presented above, VEGFRWT Sk-Mel-31 cells showed alteration of the mitochondria network, with a balance shifted toward elongated structure, when adhered to dECM derived from VEGFR2R1032Q SK-Mel-31 cells. Again, VEGFR2R1032Q Sk-Mel-31 cells remained stable in their mitochondrial structure regardless of the dECM origin (Fig. 4E). These results confirmed the idea that ECM affected the behavior of tumor cells in tissues.

Fig. 4: Decellularized ECM from VEGFR2R1032Q cells impairs monolayer fluidity.
figure 4

A Brightfield images and DAPI stain of Sk-Mel-31 monolayer pre- and post-decellularization. B Velocity heatmaps with overlaid vector fields showing the direction and magnitude of monolayer fluidity of VEGFR2WT (top row) and VEGFR2R1032Q (bottom row) Sk-Mel-31 cells seeded on control substrates, dECM from VEGFR2WT cells, or VEGFR2R1032Q cells. Color scale indicates cell velocity (μm/h). C Quantification of monolayer fluidity average velocity. Data are represented in Min to Max box & whiskers plot (n = 400 cells) for n = 3 independent experiments. Statistical significance was determined by two-way ANOVA, *P < 0.05, ***P < 0.001, ****P < 0.0001. D Time course of average monolayer fluidity for VEGFR2WT (left) and VEGFR2R1032Q (right) Sk-Mel-31 cells migrating on control, dECM VEGFR2WT cells, or VEGFR2R1032Q cells substrates. Migration velocity was measured over an 18-h period (n = 3 independent experiments). E Mitochondrial networks of VEGFR2WT (left) and VEGFR2R1032Q (right) Sk-Mel-31 cells on dECM VEGFR2WT cells, or VEGFR2R1032Q cells substrates. Fragmented, tubular, and elongated mitochondria are represented as mean ± SD (n = 40–50 cells) for n = 2 independent experiments. Statistical significance was determined by two-way ANOVA, *P < 0.05, **P < 0.01.

Full size image

ERK and PI3K signaling pathways mediate ECM remodeling in VEGFR2R1032Q Sk-Mel-31 cells

To elucidate the potential signaling mechanisms underlying ECM remodeling in VEGFR2R1032Q Sk-Mel-31 cells, we compared in vitro data of phospho-kinase array obtained from both confluent isogenic cell lysates. These analyses identified significant activation of ERK1/2, p85, and AKT1/2/3 pathways in VEGFR2R1032Q Sk-Mel-31 cells (Fig. 5A and Supplementary Fig. 2A, B).

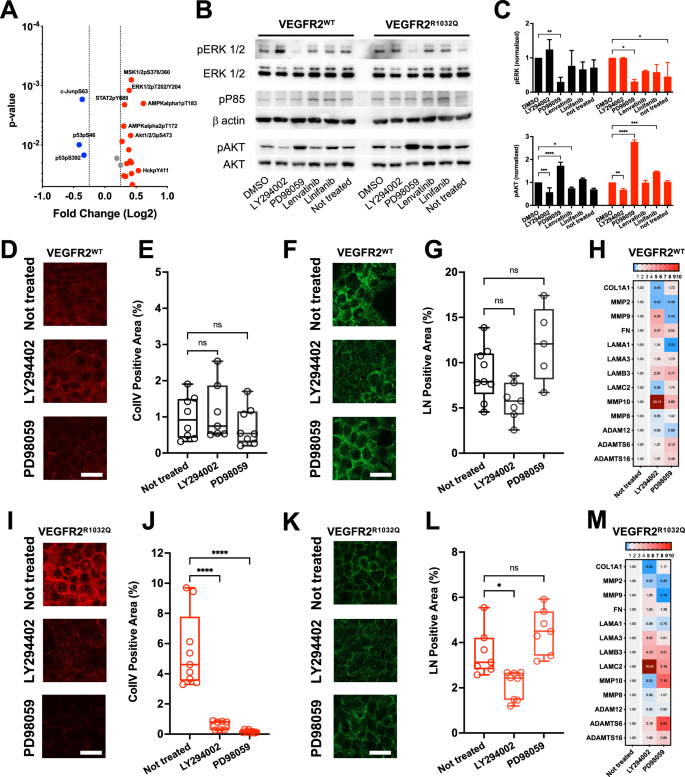

Fig. 5: Signaling pathway modulation and ECM remodeling in VEGFR2WT Sk-Mel-31 and VEGFR2R1032Q Sk-Mel-31 cells.
figure 5

A Volcano plot of differentially phosphorylated proteins in VEGFR2R1032Q Sk-Mel-31 cells vs VEGFR2WT Sk-Mel-31 cells, upregulated (red) and downregulated (blue) signaling nodes. B Western blot analysis of ERK and AKT signaling pathways in VEGFR2WTSk-Mel-31 and VEGFR2R1032Q Sk-Mel-31 cell treated with LY294002, PD98059, Linifanib, and Lenvatinib. β-actin serves as a loading control. ERK1/2 (both total and phosphorylated) were analyzed from 5 µg of total lysate. P85, actin, and AKT (both total and phosphorylated) were analyzed from 20 µg of total lysate. C Quantification of pERK and pAKT levels, normalized to total ERK and AKT, respectively. Data are presented as mean ± SD from two independent experiments. Statistical significance was determined by two-way ANOVA, *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001. D Representative images of collagen IV (ColIV) immunofluorescence staining in VEGFR2WT Sk-Mel-31 under treatment conditions where indicated. Scale bar, 20 µm. E Quantification of ColIV-positive area. Single data are represented as empty dots in Min to Max box & whiskers plot (n = 7–8). Statistical significance was determined by one-way ANOVA. F Representative images of laminin (LN) immunofluorescence staining in VEGFR2WTSk-Mel-31 under treatment conditions where indicated. Scale bar, 20 µm. G Quantification of LN-positive area. Single data are represented as empty dots in Min to Max box & whiskers plot (n = 5–9). Statistical significance was determined by one-way ANOVA, ****P < 0.0001. H Heatmap showing ECM-related gene expression in VEGFR2WTSk-Mel-31 tumors under different conditions. I Representative images of collagen IV (ColIV) immunofluorescence staining in VEGFR2R1032Q Sk-Mel-31 under treatment conditions where indicated. Scale bar, 20 µm. J Quantification of ColIV-positive area. Single data are represented as empty dots in Min to Max box & whiskers plot (n = 7–9). Statistical significance was determined by one-way ANOVA, ****P < 0.0001. K Representative images of laminin (LN) immunofluorescence staining in VEGFR2R1032Q Sk-Mel-31 cells treated as indicated. Scale bar, 20 µm. L Quantification of LN-positive area. Single data are represented as empty dots in Min to Max box & whiskers plot (n = 7–9). Statistical significance was determined by one-way ANOVA, *P < 0.05. M Heatmap showing ECM-related gene expression in VEGFR2R1032Q Sk-Mel-31 tumors under different conditions (n = 3–4).

Full size image

On the contrary, a marked reduction in p53 and c-Jun phosphorylation was observed in VEGFR2R1032Q Sk-Mel-31 cells (Fig. 5A). Consistent with these findings, VEGFR2R1032Q Sk-Mel-31 cells exhibited a significantly altered ECM profile compared to their VEGFR2WT counterparts, with increased deposition of fibronectin, and collagen IV, while laminin and other ECM components were reduced (Supplementary Fig. 2C–G). To determine whether the ECM remodeling driven by the expression of VEGFR2R1032Q is mediated via the PI3K and MAPK pathways, cells were treated with the PI3K inhibitor LY294002 and the MAPK inhibitor PD98059 and assessed for their effects on ECM gene expression and protein deposition. The efficacy of these treatments was confirmed by western blot analysis, showing significantly reduced phosphorylation of AKT at Ser473 (pS473) and pP85 following LY294002 treatment, and decreased ERK1/2 phosphorylation after PD98059 treatment (Fig. 5B, C). As expected, both Lenvatinib and Linifanib, two VEGFR2 inhibitors, prevented the activation of these signaling, confirming the role of VEGFR2 expression in their modulation [25, 26].

Interestingly, the treatment with LY294002 or PD98059 inhibitors reduced the expression of specific ECM components at both transcriptional and protein levels. Immunofluorescence analysis was employed to evaluate the effects of PI3K and MAPK pathway inhibitors on collagen IV and laminin deposition in Sk-Mel-31 cells. In VEGFRWT Sk-Mel-31 cells, ECM deposition remained mostly unaffected by treatment with either LY294002 or PD98059, with no significant changes observed in collagen IV (Fig. 5D, E) or in laminin subunit alpha-1 (LAMA1) (Fig. 5F, G) levels across untreated, LY294002-treated, and PD98059-treated groups. Moreover, both treatments only partially modified the composition of the matrix (Fig. 5H). In contrast, VEGFRR1032Q Sk-Mel-31 cells exhibited a marked reduction in ECM deposition following inhibitor treatments. Collagen IV deposition was significantly decreased after both LY294002 and PD98059 treatments (Fig. 5I, J). Laminin deposition was also markedly reduced in LY294002-treated VEGFRR1032Q Sk-Mel-31 cells. However, no statistically significant reduction in laminin levels was observed in PD98059-treated VEGFR2R1032Q Sk-Mel-31 cells (Fig. 5K, L). In keeping with these, both treatments markedly affect ECM remodeling (Fig. 5M).

Lenvatinib inhibited VEGFR2R1032Q -mediated ECM remodeling in vivo

To investigate whether VEGFR2 inhibitors mitigate ECM remodeling driven by VEGFR2R1032Q expression, both cell lines were grown as 3D aggregates and treated with LY294002, PD98059, and Lenvatinib (Fig. 6A–D). Quantification of spheroid size at day 10 revealed a significant reduction in growth in VEGFRR1032Q Sk-Mel-31 cells following Lenvatinib treatment (65% of control, Fig. 6D), with a less pronounced effect observed in VEGFRWT Sk-Mel-31 spheroids (79% of control Fig. 6B). These findings were corroborated in vivo. Lenvatinib treatment reduced tumor growth in both Sk-Mel-31-derived tumors (Fig. 6E–H), with marked suppression of VEGFRR1032Q Sk-Mel-31-derived tumors (Fig. 6G), stabilizing the architecture of the lesions (Fig. 6H). These observations were validated by SHG analysis (Fig. 6I). Lenvatinib treatment did not modify the collagen architecture in VEGFRWT Sk-Mel-31-derived tumors. However, significantly reduced SHG signal intensity was observed in VEGFRR1032Q Sk-Mel-31-derived tumors (Fig. 6I, J). Moreover, immunofluorescence analysis of phosphorylated ERK1/2 (p44/42 MAPK) showed diminished pathway activation in Lenvatinib-treated VEGFR2R1032Q samples, correlating with impaired ECM remodeling (Fig. 6K, L). These findings highlight that Lenvatinib effectively attenuates VEGFR2R1032Q-driven ECM remodeling in vivo, primarily through inhibition of the ERK/MAPK pathway.

Fig. 6: Lenvatinib treatment prevented ECM remodeling in VEGFR2R1032Q Sk-Mel-31 derived tumors in vivo.
figure 6

A Representative images of 3D spheroids treated with PD98059, LY294002, or Lenvatinib at day 10 of VEGFR2WTSk-Mel-31 cells. Scale bar 100 µm. B Quantification of inhibition at day 10. Single data are represented as empty dots in Min to Max box & whiskers plot (n = 12). Statistical significance was determined by two-way ANOVA, ****P < 0.0001. C Representative images of 3D spheroids treated with PD98059, LY294002, or Lenvatinib at day 10 of VEGFR2R1032Q Sk-Mel-31 cells. Scale bar 100 µm. D Quantification of inhibition at day 10. Single data are represented as empty dots in Min to Max box & whiskers plot (n = 12). Statistical significance was determined by two-way ANOVA, ****P < 0.0001. E Tumor growth curves of VEGFR2WT Sk-Mel-31-treated or not with Lenvatinib. Arrow indicates treatment start. Insets show representative ex vivo tumors at the endpoint. Data are presented as mean ± SD. F Representative H&E staining of FFPE slices from VEGFR2WTSk-Mel-31-derived tumors treated or not with Lenvatinib. Scale bars, 50 µm. G Tumor growth curves of VEGFR2R1032Q Sk-Mel-31 treated or not with Lenvatinib. Arrow indicates treatment start. Insets show representative ex vivo tumors at the endpoint. Data are presented as mean ± SD (n = 11–12). H Representative H&E staining of FFPE slices from VEGFR2R1032Q Sk-Mel-31-derived tumors treated or not with Lenvatinib. Scale bars, 50 µm. I Representative second-harmonic generation (SHG) microscopy images showing collagen fiber organization in VEGFR2WTSk-Mel-31 and VEGFR2R1032QSk-Mel-31-derived tumors treated or not with Lenvatinib. Scale bars, 50 µm. J Quantification of SHG-positive areas. Single data are represented as empty dots in Min to Max box & whiskers plot (n = 20–50). Statistical significance was determined by two-way ANOVA, ****P < 0.0001. K Representative immunofluorescence images of phosphorylated ERK (p44/42) Sk-Mel-31-derived tumors treated or not with Lenvatinib. Scale bars, 50 µm. L Quantification of p44/42-positive area. Single data are represented as empty dots in Min to Max box & whiskers plot (n = 20–25). Statistical significance was determined by two-way ANOVA, ****P < 0.0001.

Full size image

Discussion

ECM is an active and dynamic component of the tumor microenvironment. The interstitial matrix forms porous three-dimensional networks around cells that interconnect cells in the stroma and actively shapes cancer progression through modulation of tissue stiffness, growth, factor bioavailability, immune cell infiltration, and cell behavior [27]. Here, we uncover a mechanism by which aberrant VEGFR2 activation drives extensive ECM remodeling. Beyond its classical role in the angiogenic switch, VEGFR2 sustains oncogenic programs through autocrine signaling that enhances tumor cell survival, invasion, and stemness. Notably, the substitutions R1051Q and D1052N constitutively activate VEGFR2 kinase activity [9], whereas R1032Q induces aberrant signaling via heterodimerization with the wild-type receptor [12]. Our data demonstrate that, in a melanoma model, expression of VEGFR2R1032Q leads to increased collagen deposition, disorganized fibrillar networks, and transcriptional rewiring of ECM-modulating genes. Similar results were previously reported in the syngeneic Sk-Mel-31 melanoma model expressing constitutively active VEGFR2R1051Q [28]. The impact of VEGFR2 hyperactivation is further confirmed in OVCAR3-derived ovarian cancer cells, where VEGFR2 is highly phosphorylated and its downregulation restores ECM organization. Importantly, in ovarian cancer, ECM remodeling and distinct ECM-related signatures correlate with poor prognosis [29]. Indeed, signaling factors released by omental preadipocytes, inflammatory, and stromal cells promote ECM remodeling by driving upregulation of collagens, matrix metalloproteinases, and other remodeling enzymes. Inhibition of insulin-like growth factor (IGF1) signaling, for example, reduces collagen deposition and tumor burden in subcutaneous and intraperitoneal ovarian cancer models [30].

While the role of the ECM in modulating tumor behavior is increasingly recognized, its regulation by specific growth factors remains to be fully understood. TGFβ drives cancer-associated fibrosis by modulating the expression of collagen 1A1 and 3A1, fibronectin and tenascin c via SMAD pathways [31, 32], controlling collagen linearization through the induction of WISP1, and of lysyl oxidase and metalloproteases [33]. Platelet derived growth factor (PDGF) remodels tumor ECM through the activation of the cancer associated fibroblast [34]. In contrast, VEGF/VEGFR2 axis contribution to ECM dynamics in solid tumors is largely unexplored. Our findings reveal that loss of fine VEGFR2 regulation in cancer cells profoundly alters ECM composition and structure, promoting tumor progression. Of note, the ECM structure of VEGFR2R1032Q -Sk-Mel-31-derived tumors mirrors the architecture observed in human melanoma samples derived by patients harboring VEGFR2R1032Q (TCGA-FW-A3R5; TCGA-FR-A7U9; TCGA-EE-A2MD; available on cBioportal 8/11/2025) [35]. These lesions are characterized by dense, widely distributed ECM. While alternative pathways cannot be excluded, aberrant VEGFR2 likely contributes to this phenotype. The resulting chaotic collagen network supports cancer cell activation and induces a transition from solid to fluid state of tissue. Tumors, traditionally considered rigid, space-occupying-solid mass, can acquire soft behavior [36, 37]. In a tumor, malignant cells are not just a solidified lumped mass but are embedded into a fibrotic matrix. Evidence suggests that tumor softening involves a rigid backbone of non-motile, jammed cells that physically support the mass, interspersed with fluid regions of unjammed, motile cells capable of escaping the tumor [38, 39].

The ECM remodeling not only provides mechanical cues but also may act as a barrier that impedes the effective penetration and distribution of therapeutic agents. Preclinical models have demonstrated that irregular collagen architecture can hinder the infiltration by T cells and other effector cells, thereby fostering immunosuppressive niches within the tumor microenvironment [40]. In colorectal cancer, for example, desmoplastic tumors characterized by dense ECM deposition, reduced expression of PROX1, and altered collagen crosslinking show increased resistance to chemotherapy, and exhibit features of immune exclusion and aberrant angiogenesis. Similar immune-silent and hyper vascular phenotypes have been observed in colon rectal carcinoma models harboring VEGFR2 mutation, where enhanced ECM remodeling contributes to immune-evasive microenvironments. However, the role of ECM remodel in immunological activation is still controversial. Several studies demonstrate that the bioactive ECM fragments, known as matrikines, modulate immune response either positively or negatively, further illustrating the complex and context-dependent interplay between ECM and immunity [41, 42].

We can conclude that a fine characterization of ECM remodeling and its regulators may enhance immunotherapy and chemotherapy by restoring immune cell infiltration. Strategies to normalize the ECM, including inhibition of hyaluronidase, lysyl oxidase, LOXL2, and matrix metalloproteinases, are under investigation. Although early trials were limited by low efficacy or toxicity, improved understanding of their context-dependent regulation has reinvigorated interest [43, 44]. For instance, in hepatocellular carcinoma, the EGFR inhibitor Erlotinib reduced liver fibrosis and prevented malignant transformation in pre-neoplastic lesions with minimal effects on cancer cells [45].

Collectively, our results demonstrate that aberrant VEGFR2 phosphorylation leads to remodel ECM, potentially contributing to disease progression by affecting both structural protein deposition and transcriptional regulation. Notably, these ECM alterations can be attenuated or partially reversed not only by pathway-specific inhibitors targeting ERK and PI3K, but also by multi-kinase inhibitors such as lenvatinib. Thus, the so-called “field effect” therapy whereby targeting ECM-related signaling pathways may be combined with chemo- and immunotherapy to enhance treatment efficacy in solid tumors.

Materials and methods

Cell cultures

Human melanoma Sk-Mel-31 cells, provided by Memorial Sloan Kettering Cancer Center (MSK00005207), were grown in RPMI (Thermo Fisher Scientific, Carlsbad, CA, USA) supplemented with 10% Fetal Bovine Serum (FCS) (Thermo Fisher Scientific), 1% non-essential amino acids (NEAA) (Thermo Fisher Scientific) and 1% Pen/Strep (Thermo Fisher Scientific). Sk-Mel-31 stably expresses VEGFR2WT and VEGFR2R1032Q were generated using polyethylenimine (PEI) (Sigma-Aldrich, St. Louis, MO, USA) transfection reagent and selected by 0.5 mg/mL geneticin. OVCAR3 was purchased from the European Collection of Authenticated Cell Cultures (ECACC). OVCAR3 cells were maintained in RPMI medium (Thermo Fisher Scientific) supplemented with 20% FBS, and 0.01 mg/mL bovine insulin. For VEGFR2 silencing, cells were infected with lentiviral particles harboring Mission® VEGFR2-targeting shRNAs as published in Grillo et al. [9]. Cells transduced with non-targeting lentiviral particles (SCH202V) were used as controls in all experiments. Transduced cells were maintained in 1 μg/mL puromycin. Cells were tested monthly for mycoplasma contamination.

Mutagenesis

pBE_hVEGFR2 plasmid encoding for wild-type hVEGFR2 [NM_002253.2] was kindly provided by Prof. Kurt Ballmer-Hofer (Paul Scherrer Institut, PSI, Villigen, Switzerland). pBE_hVEGFRR1032Q plasmid was generated using the QuikChange Lightning Site-directed Mutagenesis Kit (Agilent Technologies, Santa Clara, CA, USA). To introduce R1032Q point mutation the following primers were used: forward 5’-GGGACCTGGCGGCACAAAATATCCTCTTATCG-3’; reverse 5’-CGATAAGAGGATATTTTGTGCCGCCAGGTCCC-3’.

Mouse tumor generation

In total, 4 × 106 VEGFR2WT Sk-Mel-31 or VEGFR2R1032Q Sk-Mel-31 cells were subcutaneously injected (s.c.) into the flanks of 6 weeks old NOD/SCID mice (Envigo, Udine, Italy). All animals were purchased at the same age, with males and females represented in similar proportions. at the same age, with males and females represented in similar proportions. Tumor volumes were measured using calipers and calculated according to the formula V = (D × d2)/2, where D and d are the major and minor perpendicular tumor diameters, respectively. Lenvatinib (Sigma-Aldrich) was administered at 20 mg/kg in 8% ethanol by oral gavage every day, after mice randomization once tumor volume reached 100 mm3. At the endpoint of the experimental procedure, tumors were harvested, weighed, and processed for downstream analyses. Animals were randomly allocated to experimental groups using a random number generator to ensure unbiased distribution. No blinding analysis was performed. In accordance with our institutional guidelines, tumor size did not exceed 1000 mm3 in volume or 2 g. All in vivo experiments were approved by the local animal ethics committee (OPBA, Organismo Preposto al Benessere degli Animali, Università degli Studi di Brescia, Brescia, Italy) and Italian “Ministero della Salute” (Authorization n. 266/2016) and conducted in accordance with national guidelines.

Histological staining

Formalin-fixed paraffin-embedded (FFPE) tissue sections were stained with hematoxylin and eosin (H&E), Masson’s trichrome, and Periodic Schiff acid. Nuclei were stained with 4’,6-diamidino-2-phenylindole (DAPI) (Sigma-Aldrich) or TO-PRO-3 (Molecular Probes, Eugene, OR, USA). Images were captured using LSM880 confocal microscope (Carl Zeiss, Oberkochen, Germany) and analyzed by ImageJ software. For Second Harmonic Generation (SHG), collagen bundles were collected using LSM880 two-photon microscope associated with Chameleon IR Laser (Ex λ = 860, Em λ = 430/10) equipped with a Plan-Neofluar 20×/0.5 NA and 40×/0.75 objective (Carl Zeiss).

Microarray data processing and analysis

To profile gene expression, total RNA was converted to cRNA subsequently into cDNA and hybridized, onto a Human Clariom S GeneChip (Thermo Fisher Scientific) following the manufacturer’s guidelines. Gene-level expression of over 20,000 well-annotated genes was assessed. A 3000 7 G Scanner (Thermo Fisher Scientific) was used in conjunction with GeneChip Operation Software (Thermo Fisher Scientific) to generate a single CEL file for each hybridized cDNA. Filtered datasets were further processed for pathway analysis and gene set enrichment using Gene Set Enrichment Analysis (GSEA) and Gene Ontology (GO) gene-set lists.

Gene expression

Total RNA was extracted using TRIzol Reagent (Thermo Fisher Scientific) according to the manufacturer’s instructions. Complementary DNA (cDNA) was made from 2 μg of total RNA using MML-V (Thermo Fisher Scientific). Real-time PCR was performed using ViiA7 Real-Time PCR System (Thermo Fisher Scientific), and data was analyzed with Viia7 Real-Time Software (Thermo Fisher Scientific).

The oligonucleotide primers used are listed in Table 1.

Table 1 List of human primers used in this research.
Full size table

Immunofluorescence

VEGFR2WT Sk-Mel-31 and VEGFR2R1032Q Sk-Mel-31 were grown for 10 days in complete medium, fixed with PFA 4% in PBS for 20 min at 4 °C, and maintained in PBS 2% BSA. Then, samples were incubated with anti-CollIV antibody (HEYL, Germany) or with anti-Laminin 1 (L9393 -Sigma-Aldrich) followed by Alexa Fluor 594 anti-rabbit IgG (A-11012 -Molecular Probes) or Alexa Fluor 488 anti-mouse IgG (A11028-Molecular Probes). Nuclei were counterstained with TO-PRO-3 iodide (T3605-Molecular Probes). Formalin-fixed paraffin-embedded (FFPE) tissue sections were stained with anti-phospho-p44/24 MAPK antibody (pThr202/Thr204, #9101- Cell Signaling Technology, Danvers, MA, USA) antibody or pVEGFR2 (#2478.-Cell Signaling Technology) when indicated. Antigen retrieval was performed in Citrate Buffer solution (0.1 M and pH 6.0) at 95 °C for 20 min before immunostaining. Nuclei were counterstained with TO-PRO-3 iodide (Molecular Probes). Images were captured using Axio Observer (Carl Zeiss) equipped Apotome.2 and with Plan-Apochromat 63×/1.4 Oil DIC objective (Carl Zeiss) and analyzed by Zen software (Carl Zeiss).

Sk-Mel-31 spheroid

In all, 2000 cells aggregated in spheroids in 20% methylcellulose RPMI medium, were plated in a low attachment round-bottom 96-well plate for 48 h. On day 3, spheroids were transferred in a 24-well and treated with 4 µM LY294002 (Sigma-Aldrich), 4 µM PD98059 (Sigma-Aldrich), and 40 µM Lenvatinib (Sigma-Aldrich) every 2 days. Spheroids were photographed every 24 h using an Primovert microscope equipped with a Plan-Apochromat 10X/0,25PH1 objective (Carl Zeiss).

Matrix decellularization

In total, 3 × 105 cells/cm2 Sk-Mel-31 VEGFR2WT and VEGFR2R1032Q were seeded in complete medium and grown for eight days. Decellularized matrices were obtained with gently washed monolayers in PBS/EDTA 4 mM until the complete removal of seeded cells.

Tissue fluidity

Tissue fluidity was assessed by time-lapse video microscopy. Cells were seeded at 100,000 cells/cm2 in 24-well plates overnight. Cells were observed using Axio Observer (Zeiss Axiovert), and phase-contrast snap photographs (1 frame every 10 min) were digitally recorded for 1200 min. Constant temperature (37 °C) and pCO2 (5%) were maintained throughout the experimental period by means of a heatable stage and climate chamber. The videos obtained were analyzed using particle image velocimetry (PIV) with the MATLAB application PIVlab (https://it.mathworks.com/matlabcentral/fileexchange/27659-pivlab-particle-image-velocimetry-piv-tool-with-gui) to compute the velocity vectors of each frame [46]. The velocity vectors were generated with an interrogation area of Pass1 100 × 100 px [56 µm2] and Pass 2 of 50 × 50 px [28 µm2]. Mean and standard deviation were determined from two independent experiments.

Mitochondria network

Cells were seeded at 100,000 cells/cm2 in eight-well into ibidi plates overnight and stained with MitoTracker (Thermo Fisher Scientific). Images were captured using LSM880 confocal microscope (Carl Zeiss) and analyzed by ImageJ software.

Western blot

Cells were lysed in lysis buffer [50 mM Tris-HCl buffer (pH 7.4), 150 mM NaCl, 1% Triton X-100, 1 mM Na3VO4, and protease and phosphatase inhibitors (Sigma-Aldrich)]. Next, total proteins were separated by SDS-PAGE and probed with anti-phospho-AKT antibody (pSer473, #4060- Cell Signaling Technology), anti-phospho-p44/24 MAPK antibody (pThr202/Thr204, #4370-Cell Signaling Technology), anti-phospho-p85 (pTyr458, #4228-Cell Signaling Technology). Phospho-protein levels were normalized using anti-p44/42 MAPK (#9102- Cell Signaling Technology), anti-b-actin Clone AC-74 (A2228-Sigma-Aldrich), or anti-AKT (#4691-Cell Signaling Technology) antibodies. The chemiluminescent signal was acquired by ChemiDocTM Imaging System (BioRad, Hercules, CA, USA) and analyzed with ImageLab software from BioRad.

Statistical analyses

Statistical analyses were performed using the statistical package Prism10 (GraphPad Software, San Diego, CA, USA). Two-tailed Student t test or ordinary one-way ANOVA or two-way ANOVA were used to determine statistical significance. *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001. Error bars denote ± SD.
