Fig. 1: PARP1 and PARylation are dynamic during myogenesis. | Cell Death Discovery

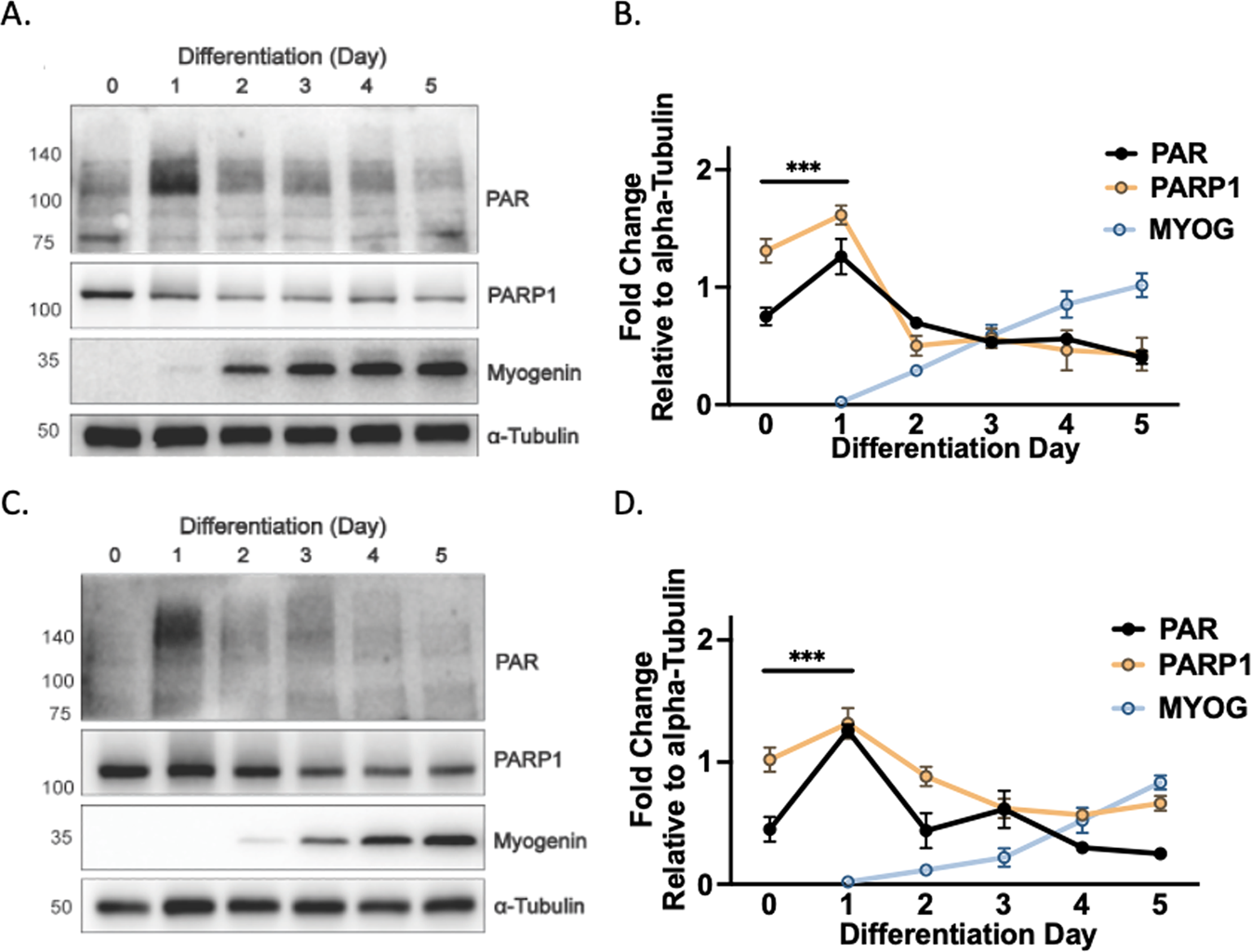

Fig. 1: PARP1 and PARylation are dynamic during myogenesis.

From: PARP1 mediated PARylation contributes to myogenic progression and glucocorticoid transcriptional response

Fig. 1: PARP1 and PARylation are dynamic during myogenesis.The alt text for this image may have been generated using AI.

A Western immunoblotting of differentiating C2C12 myoblasts probed for PARylation (PAR), PARP1, Myogenin, and Alpha-Tubulin (representative of n = 4). B Quantification of MYOG, PAR, and PARP1 present over differentiation. Each bar represents means ± S.D (n = 4) ***P < 0.001. C Western immunoblotting of differentiating LHCN-M2 human myoblasts probed for MYOG, PAR, PARP1, Myogenin, and Alpha-Tubulin (representative of n = 4). D Quantification of PAR and PARP1 present over differentiation. Each bar represents means ± S.D (n = 4) ***P < 0.001.
