Fig. 8
From: A metasurface with bidirectional hyperbolic surface modes and position-sensing applications

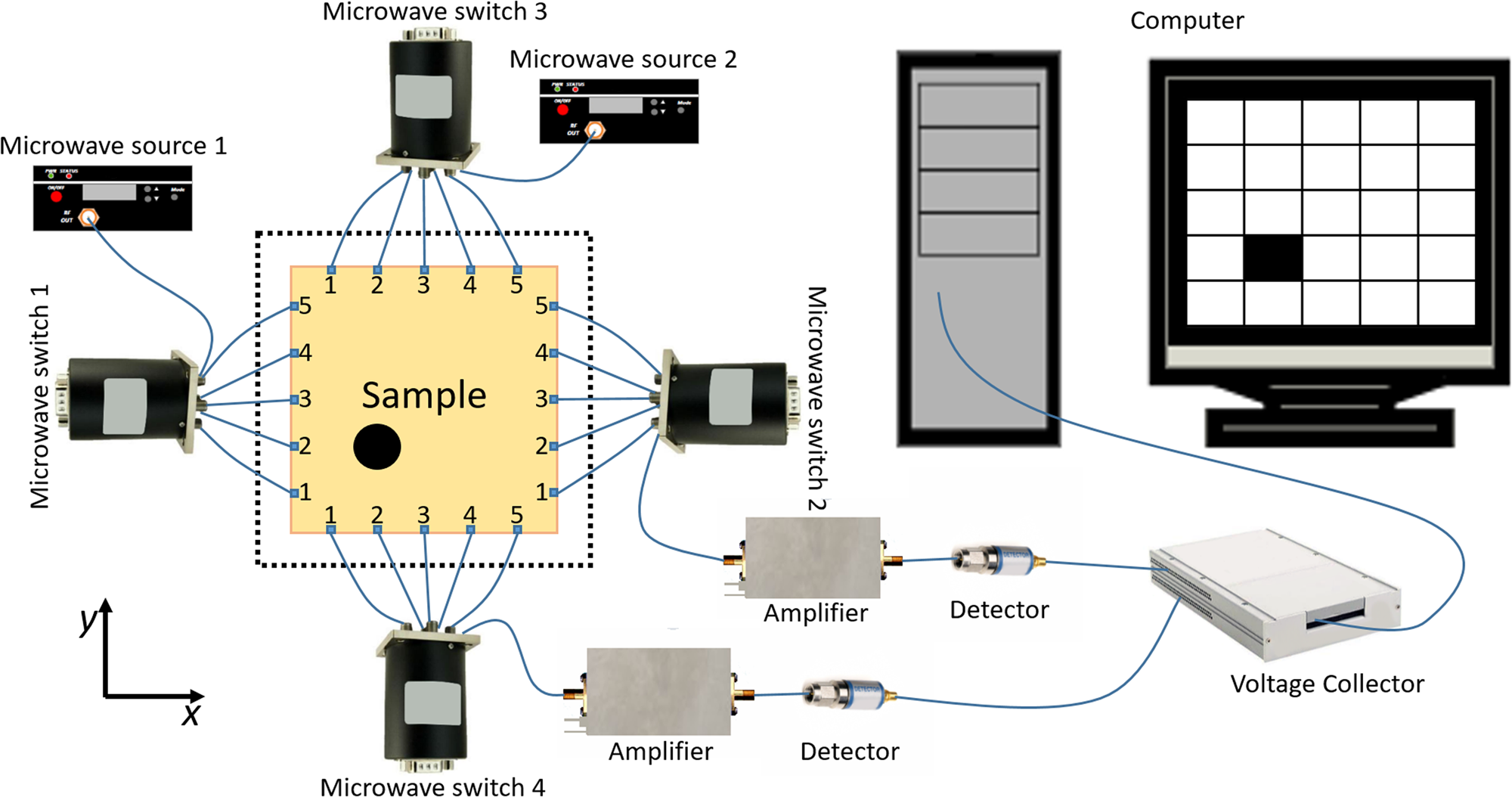

Schematic diagram of the position-sensing prototype, where the black disk on the sample represents the perturbation of the environment, and the coordinates of the perturbation position are analyzed on the computer screen (a real-time demo is shown in Supplementary Video)
