Fig. 7: In vivo evaluation of sciatic nerve regeneration. | NPG Asia Materials

Fig. 7: In vivo evaluation of sciatic nerve regeneration.

From: Polydopamine-modified hydrogel nanofibers for sustained SFRP2 release: synergistic promotion of angiogenesis and nerve regeneration

Fig. 7

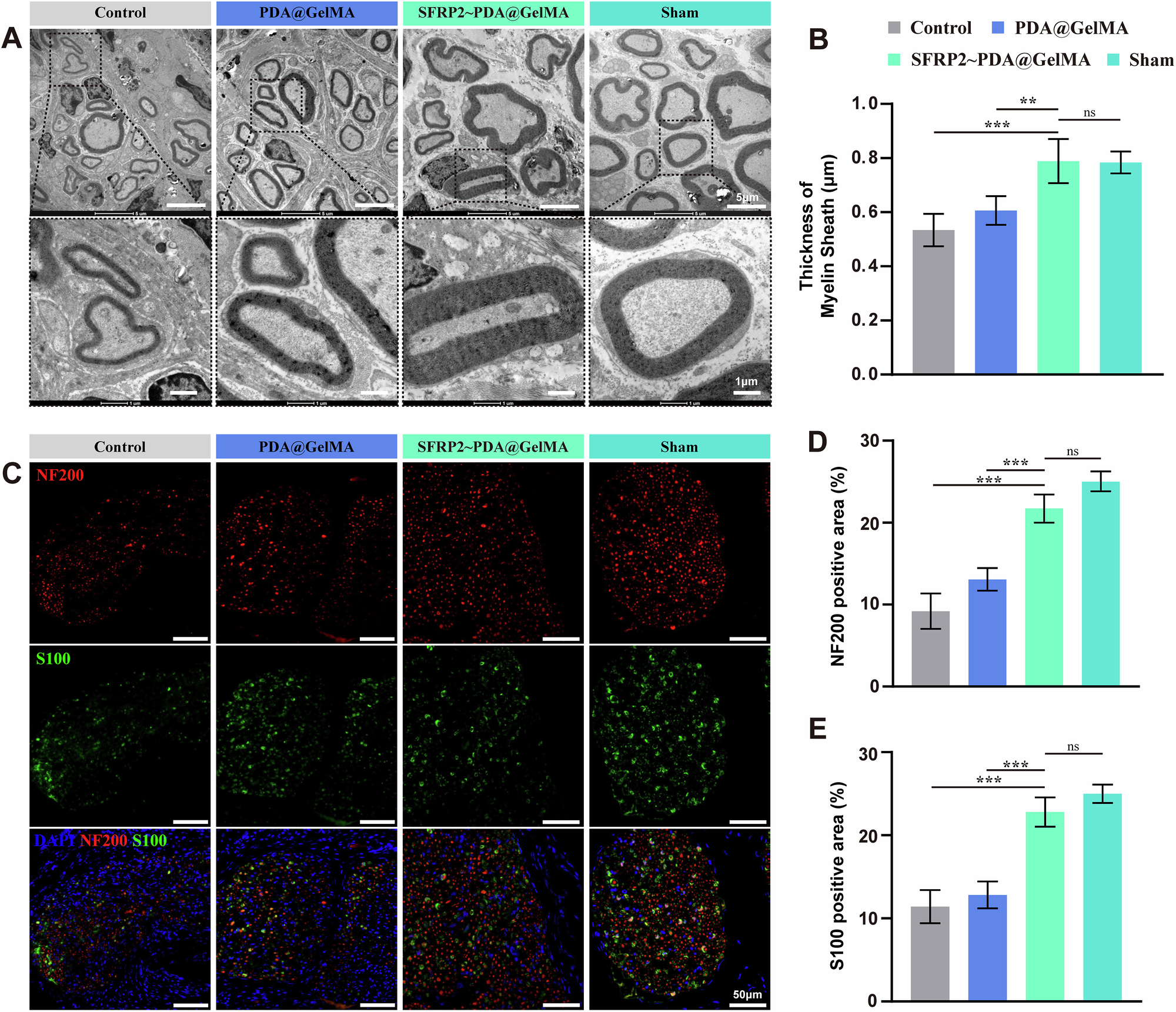

A Representative TEM images of sciatic nerves in different groups. B Quantitative analysis of myelin sheath thickness in different groups. C Representative images of myelin sheath and axon of sciatic nerves in different groups by immunofluorescence staining. S100 (green) and NF200 (red). Scale bar: 50 μm. D Quantitative analysis of NF200 positive area in different groups. E Quantitative analysis of S100 positive area in different groups. *p < 0.05, **p < 0.01, ***p < 0.005, ns not significant.
