Fig. 5
From: Direct observation of topological surface-state arcs in photonic metamaterials

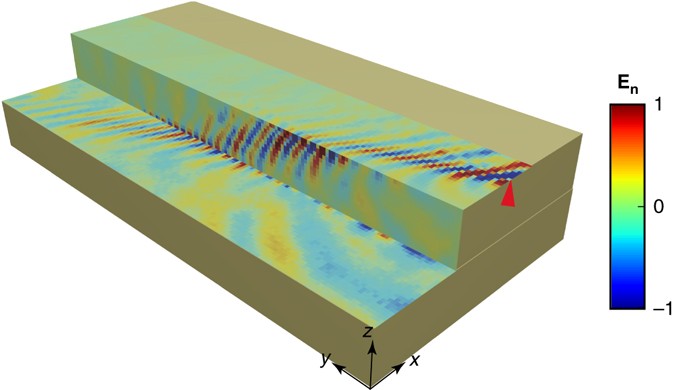

Topologically protected surface waves propagating on a step. A backscattering-immune surface wave propagates on a three-dimensional step geometry. The source (red triangle) is set with x-polarization, whereas the normal component of the electric field is probed for all surfaces. The step width, height, and length are 104 mm (both for upper and lower surfaces), 60 and 600 mm, respectively. The normal electric field is normalized with respect to its maximum value. (See real experimental setup in Supplementary Fig. 1).
