Fig. 4
From: Electronic components embedded in a single graphene nanoribbon

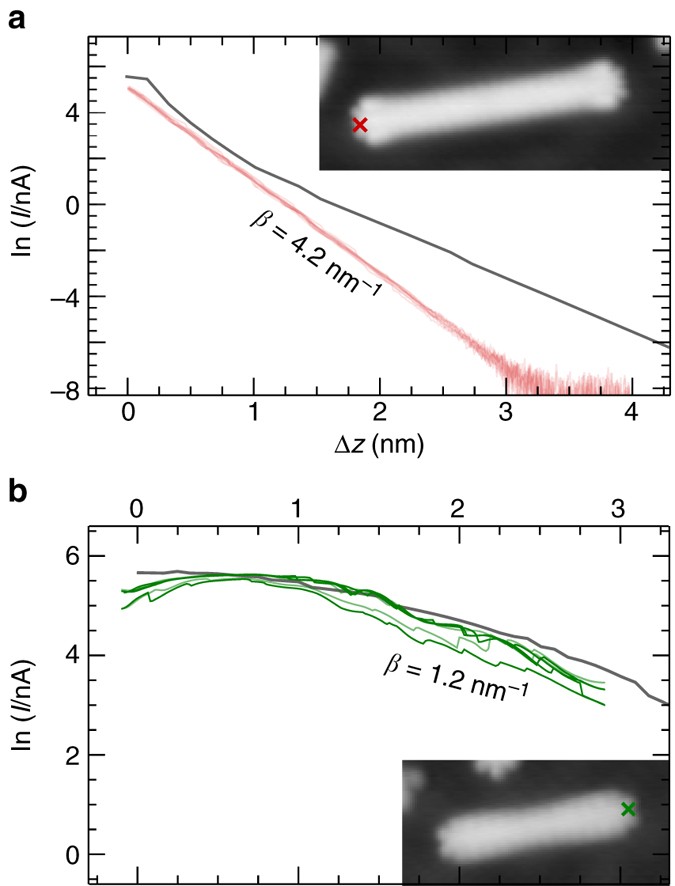

Conductance measurements on mono-component ribbons. a Experimental (red) and theoretical (gray) ln(I/nA)(z) curves for the 7-GNR(10) shown in the inset. The position from which the GNR was lifted is indicated by a red cross. b Experimental (green) and theoretical (gray) ln(I/nA)(z) curves for 5-GNR(6) shown in the inset. The position from which the GNR was lifted is indicated by a green cross
