From: Time-lapse crystallography snapshots of a double-strand break repair polymerase in action

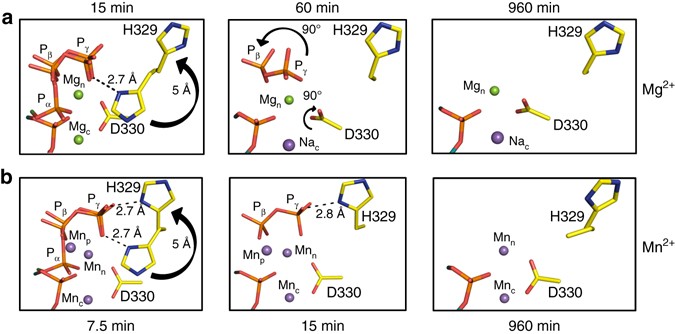

Active site conformational adjustments during single-nucleotide gap-filling by pol μ. a Mg2+-mediated insertion, and b Mn2+-mediated insertion. Black arrows indicate movement compared to the previous panel from left to right
