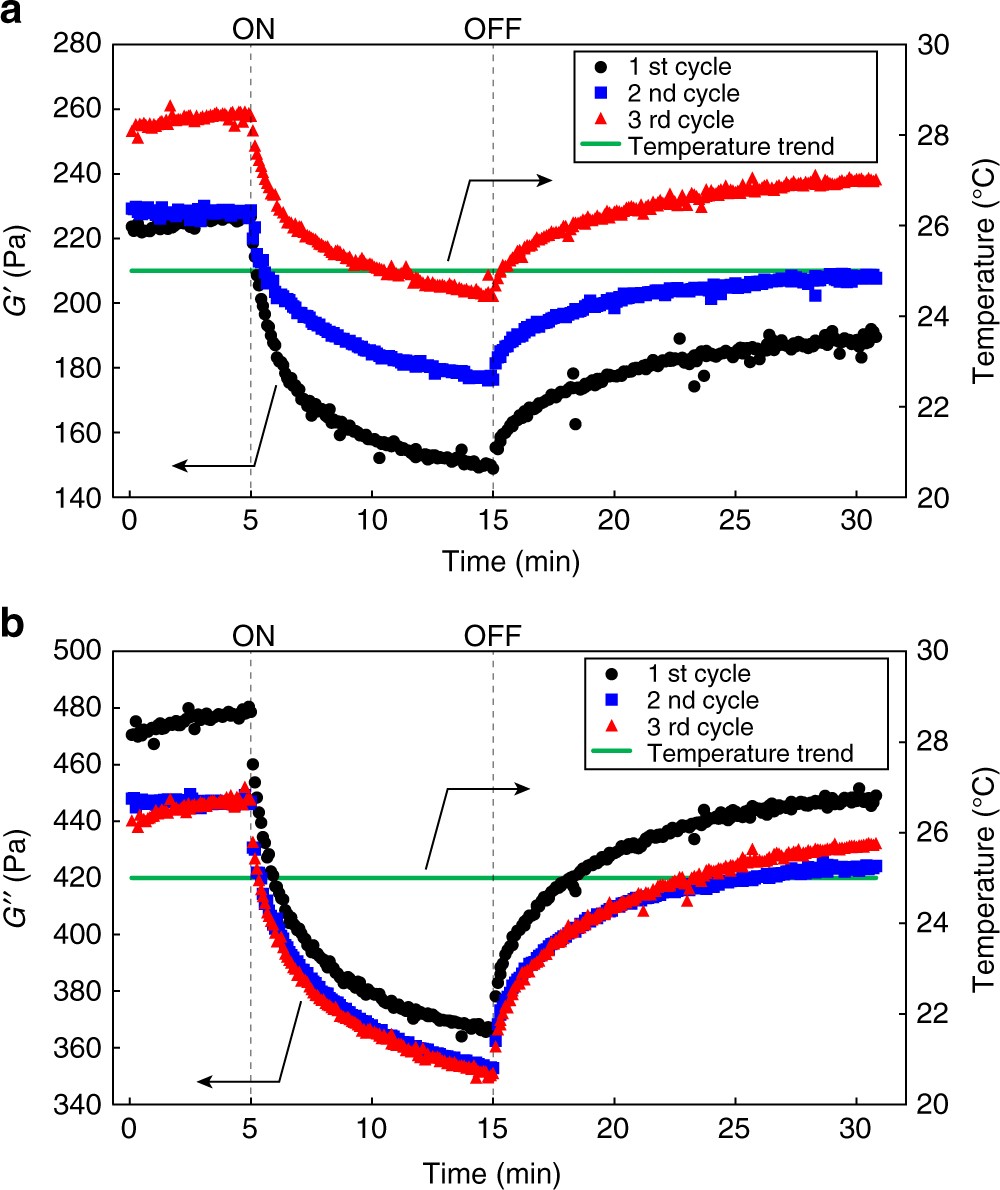

Fig. 5
From: Photo-triggered solvent-free metamorphosis of polymeric materials
Rheological properties upon repetitive UV irradiations. Time-dependent plots of a G‘ and b G“ for network-PDMS HABI upon repeating UV irradiation cycles (1st cycle: black circle, 2nd cycle: blue square, and 3rd cycle: red triangle) with monitoring temperature (green line). The starting (ON) and terminating (OFF) times of UV irradiation were indicated with dashed lines
