Fig. 2
From: Tricritical wings and modulated magnetic phases in LaCrGe3 under pressure

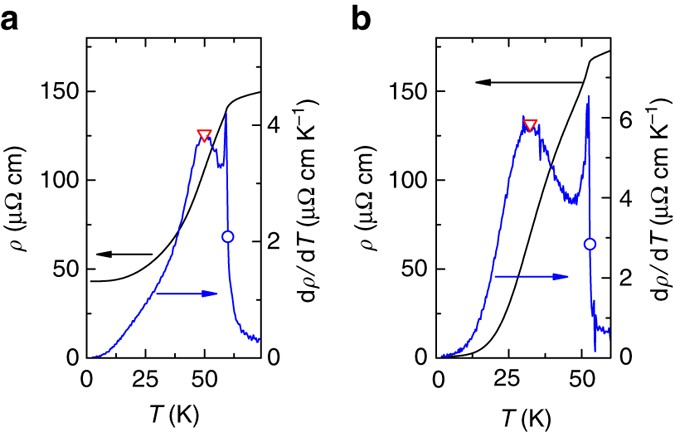

Comparison of ρ(T) and its dρ(T)/dT between LaCrGe3 and UGe2. Temperature dependence of the resistivity (black line, left axis) and its derivative (blue line, right axis) of a LaCrGe3 at 1.14 GPa and b UGe2 at 0 GPa from ref. 28. The crossover between the two ferromagnetic phases (FM1 and FM2) is inferred from the maximum in dρ/dT (T x ) and marked by a red triangle, whereas the paramagnetic-ferromagnetic transition is inferred from the middle point of the sharp increase in dρ/dT (TC) and indicated by a blue circle
