Fig. 3

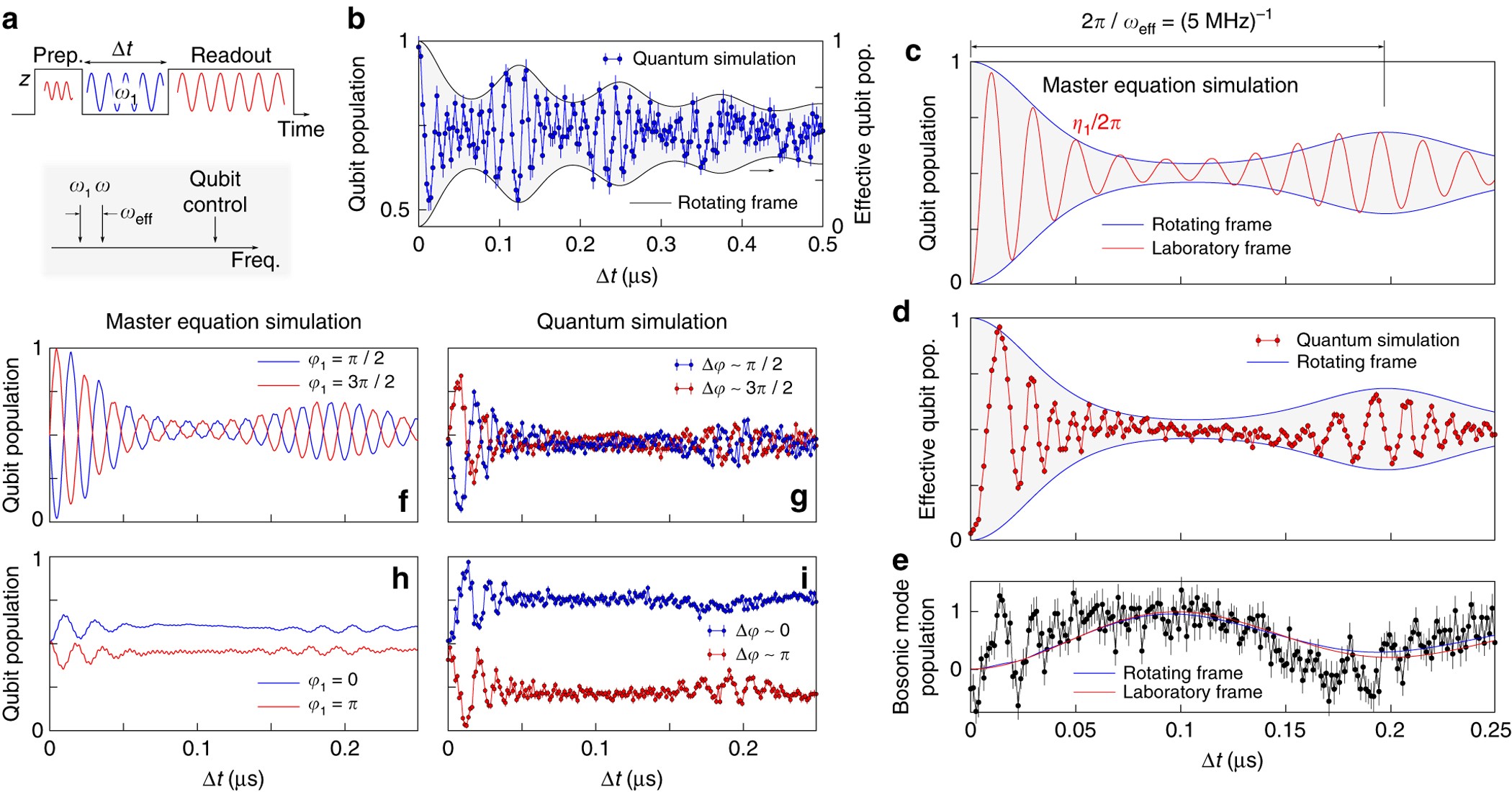

Quantum state collapse and revival with only the dominant Rabi drive applied. a Schematic pulse sequence and overview on the relative frequencies used in the experiment. b Quantum simulation of the periodic recurrence of quantum state revivals for ω _eff/2π = 8 MHz. The blue line corresponds to a master equation simulation of the qubit evolution in the rotating frame. c, d Master equation and quantum simulation of the qubit time evolution for initial qubit states \(\left| {\rm{g}} \right\rangle\), \(\left| {\rm{e}} \right\rangle\) and ω _eff/2π = 5 MHz, corresponding to \({g_{{\rm{eff}}}}{\rm{/}}{\omega _{{\rm{eff}}}}\sim 0.5\). The red line shows the qubit population evolution of the driven system in the laboratory frame, Eq. (2), while the blue lines follow the qubit evolution in the synthesized Hamiltonian Eq. (4), likewise extracted from a classical master equation simulation. The deviation between the envelope of the laboratory frame data and the rotating frame data in c reflects the approximations of the simulation scheme. Experimental data shows the difference between two measurements for the qubit prepared in \(\left| {\rm{g}} \right\rangle\), \(\left| {\rm{e}} \right\rangle\), respectively, in order to isolate the qubit signal. e Measured population evolution of the bosonic mode, extracted from the sum of the two successive measurements and fitted to classically simulated data. f–i Qubit time evolution for varying relative phase φ ₁ of the applied drive. The initial qubit state is prepared on the equator of the Bloch sphere \(\left| {\rm{g}} \right\rangle\) ± \(\left| {\rm{e}} \right\rangle\). Dispersive shifts induced by the bosonic mode are subtracted based on its classically simulated population evolution. Error bars throughout the figure denote a statistical s.d. as detailed in the Methods
