Fig. 3

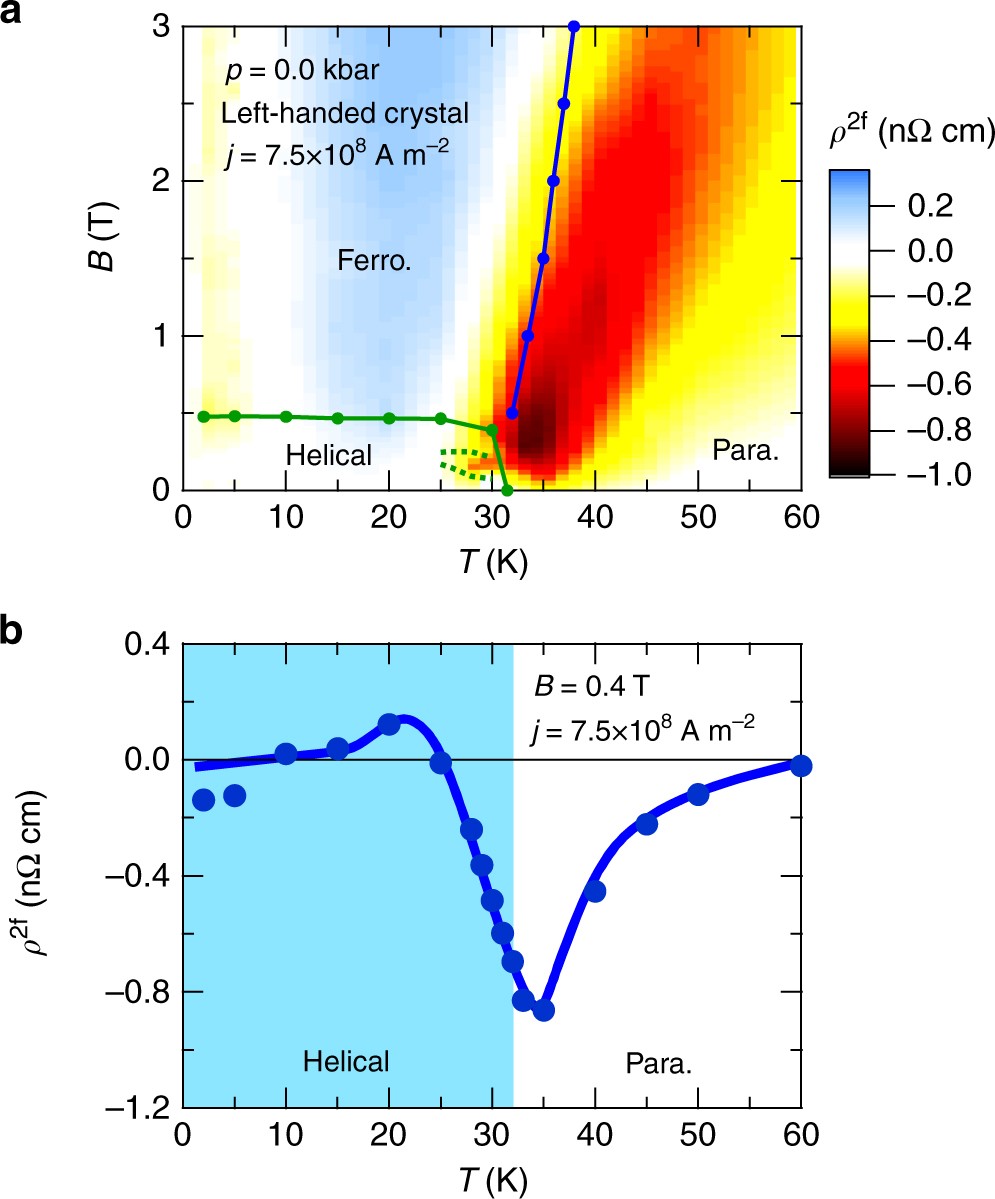

Temperature dependence of electrical magnetochiral effect. a Contour mapping of second harmonic resistivity (ρ 2f) in left-handed MnSi in T-B plane. The green and blue lines denote the phase boundary enclosing the helical phase and the crossover line between the induced ferromagnetic and paramagnetic phases, respectively. For the ρ 2f anomaly around the narrow skyrmion-lattice phase region (denoted by a dotted green line), see Supplementary Fig. 4 and Supplementary Note 5. b Temperature dependence of ρ 2f at B = 0.4 T
