From: Mitigating oxygen loss to improve the cycling performance of high capacity cation-disordered cathode materials

Fig. 2

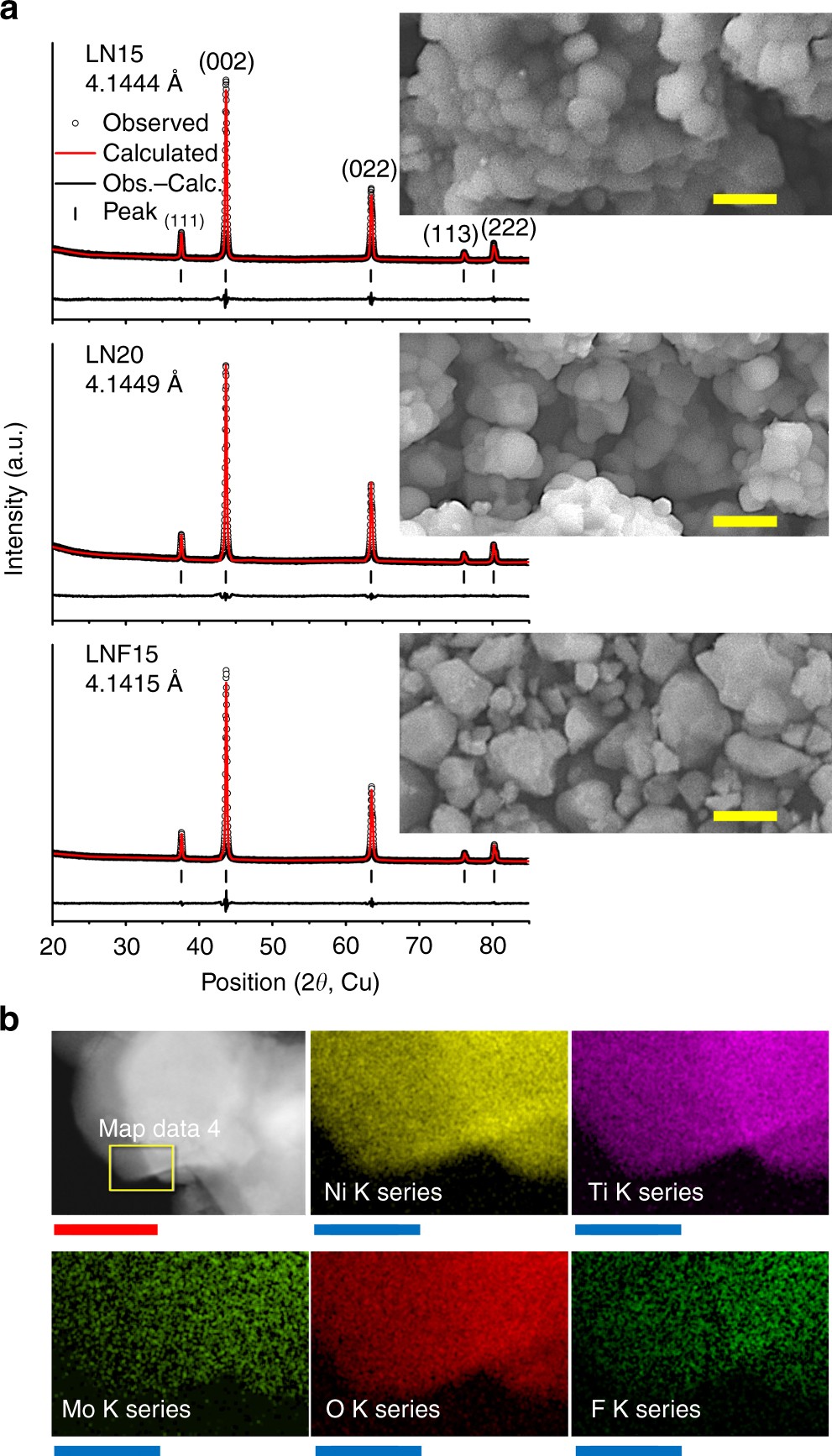

Structure characterization of Li1.15Ni0.375Ti0.375Mo0.1O2 (LN15), Li1.2Ni0.333Ti0.333Mo0.133O2 (LN20), and Li1.15Ni0.45Ti0.3Mo0.1O1.85F0.15 (LNF15). a X-ray diffraction patterns and refinement results of LN15, LN20, and LNF15. The inset shows the scanning electron microscopy image of each material. Scale bars, 200 nm. b Energy dispersive spectroscopy mapping (Ni, Ti, Mo, O, F) on one area (yellow square) of a LNF15 particle. Scale bars, red: 100 nm, blue: 25 nm
