Fig. 4

From: Microbial mineralization of cellulose in frozen soils

Fig. 4

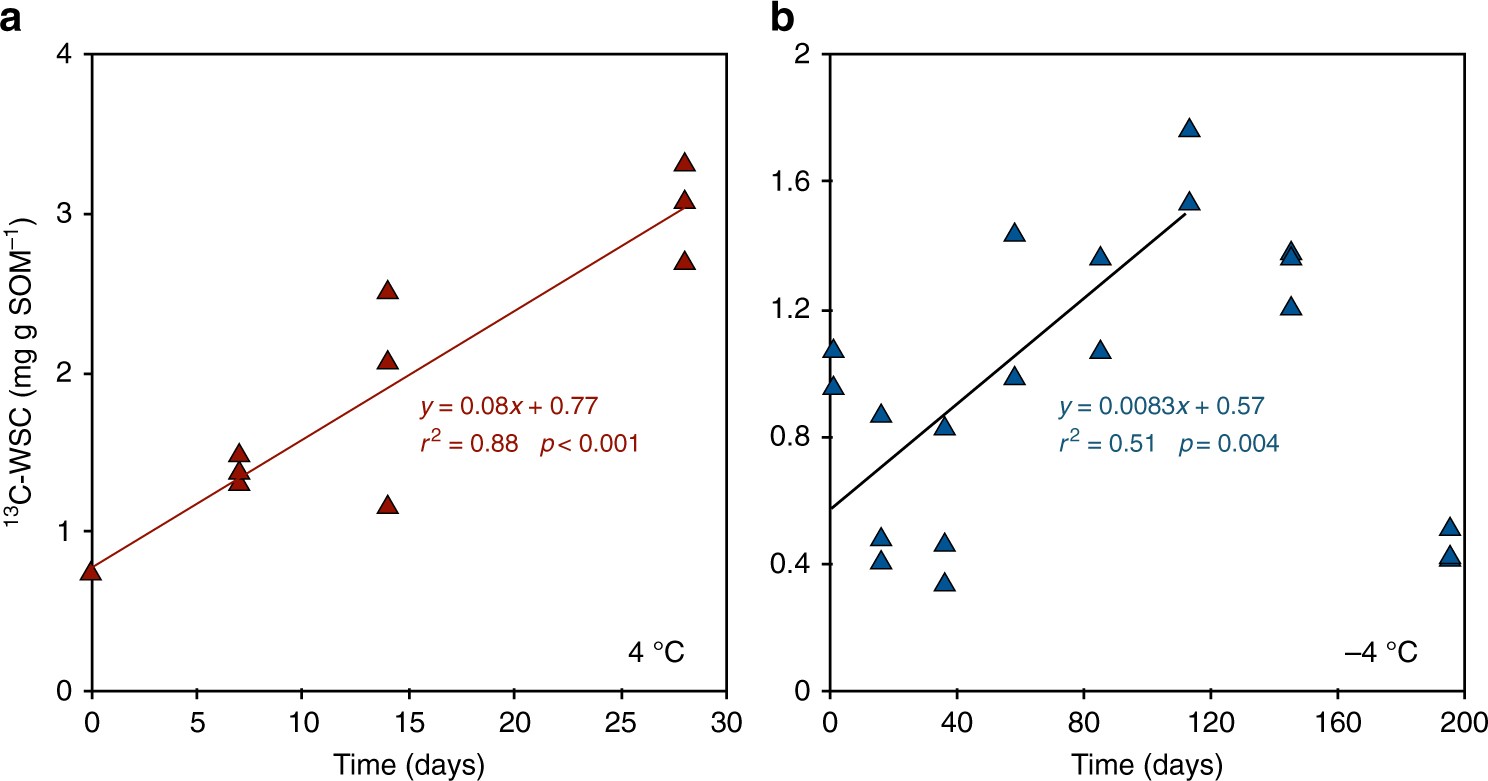

13C-labeled water-soluble carbohydrates were form from hydrolysis of the added 13C-cellulose in both unfrozen and frozen soil samples. Changes with time (and fitted linear functions, p < 0.005) in concentrations of 13C-labeled water-soluble carbohydrates (13C-WSC) in the samples incubated at 4 °C (panel a, red triangles) and −4 °C (panel b, blue triangles)
