From: Bottom-up precise synthesis of stable platinum dimers on graphene

Fig. 5The alternative text for this image may have been generated using AI.

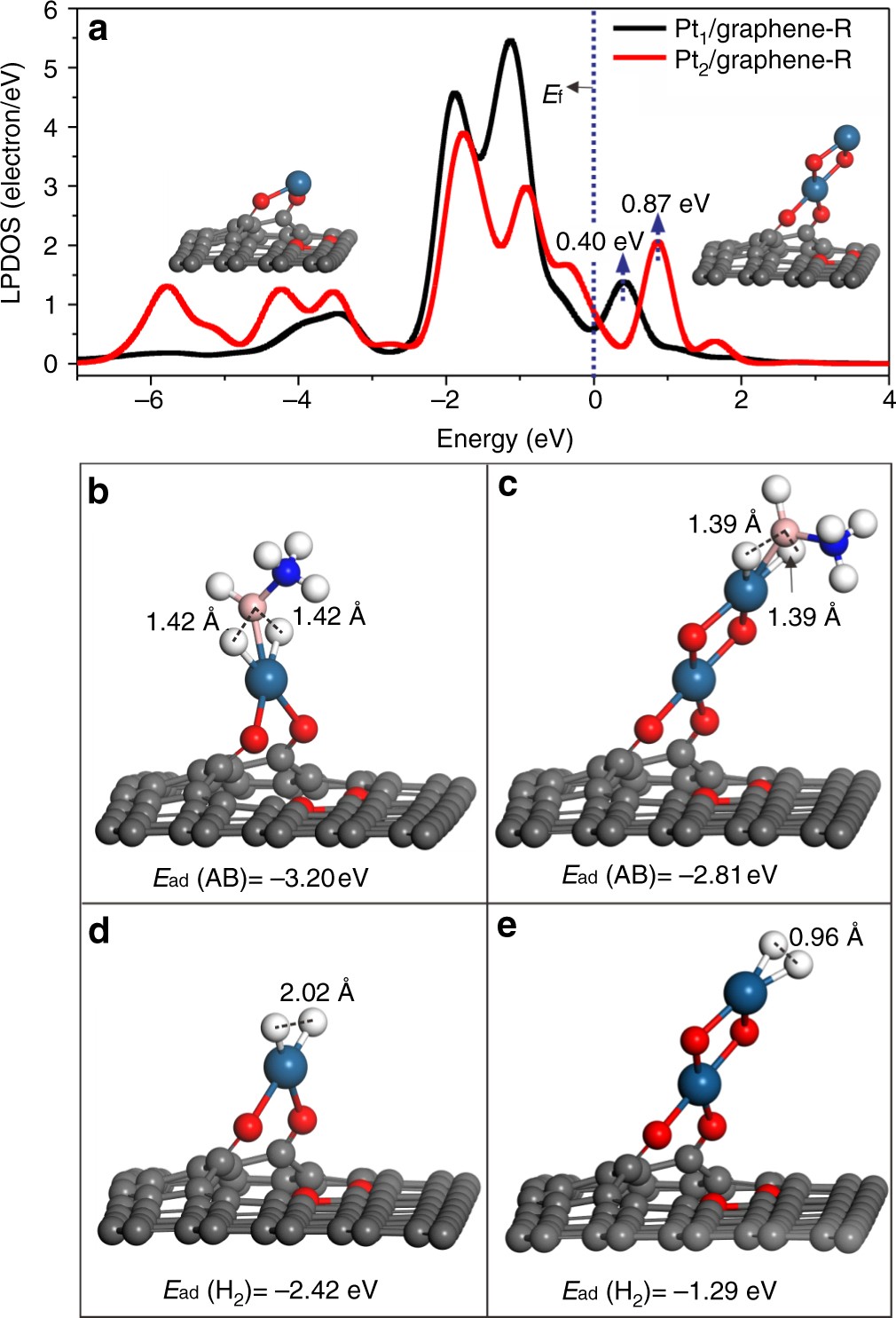

Electronic properties as well as AB and H2 adsorptions. a The local partial density of state (LPDOS) projected on the Pt 5d orbitals of Pt1/graphene-R and the top Pt atom in Pt2/graphene-R. The local configurations for AB adsorption on Pt1/graphene-R (b), Pt2/graphene-R (c). The local configurations for H2 adsorption on Pt1/graphene-R (d), Pt2/graphene-R (e). The ball in gray, white, pink, blue, red, and dark blue represent carbon, hydrogen, boron, nitrogen, oxygen, and platinum, respectively
