From: Timing anthropogenic stressors to mitigate their impact on marine ecosystem resilience

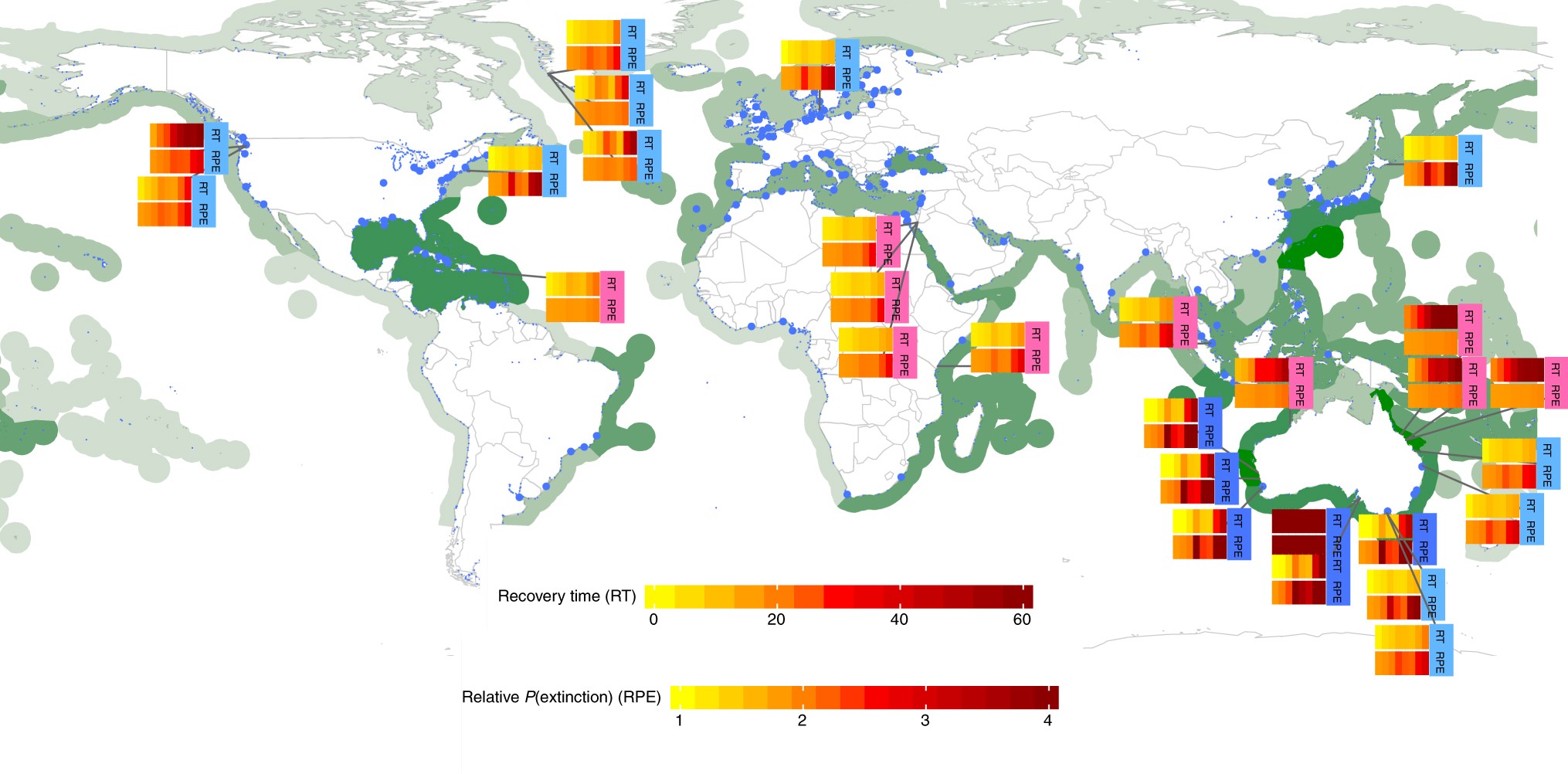

Global distribution of seagrasses and ports showing resilience to dredging. Seagrass density28 is shaded green and ports29 are indicated by blue dots, where larger dots indicate larger harbours (generated using R software30 and maps package). For 28 seagrass sites in the vicinity of ports and dredging, one-dimensional heat maps are shown of average recovery time (RT; top panels) and average relative probability of extinction (RPE; bottom panels). Each heat map has eight vertical bars, corresponding to dredging periods denoted as <dredge duration>−<alternating dredge/rest duration> of 1–0, 2–0, 3–0, 6–0, 6–3, 6–2, 9–0 and 12–0 months. Heat map labels are coloured by genus—pink for colonising Halophila light blue for opportunistic Zostera, and dark blue for persistent Amphibolis
