Fig. 5
From: Anaerobic microsites have an unaccounted role in soil carbon stabilization

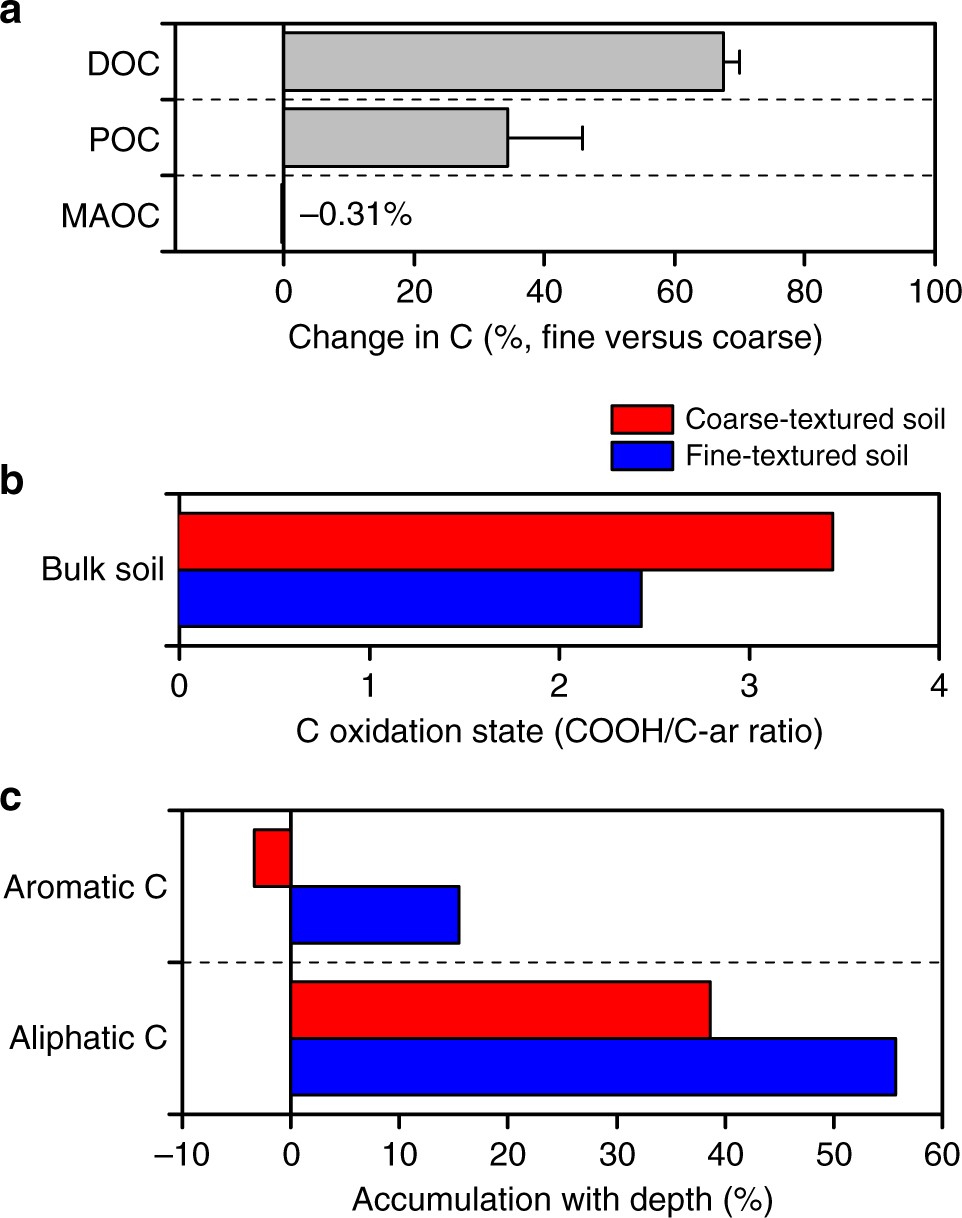

Impact of soil particle size distribution, and the associated variations in anaerobic soil volume, on carbon bioavailability and chemistry. a Differences in the dissolved (DOC), particulate (POC), or mineral-associated organic carbon (MAOC) pools between coarse- and fine-textured soil. DOC, POC, and MOAC are shown as the relative differences between the two soils. b Differences in carbon oxidation state between fine- and coarse-textured soil. Carbon oxidation state is calculated as the ratio of the NEXAFS absorbance of carboxyl (288.35 eV) to that of aromatic C (285.05 eV). c Differences in the abundance of reduced carbon functional groups between fine- and coarse-textured soil and their accumulation with depth. Changes in the abundance of NEXAFS-detectable aromatic and aliphatic C in the subsoil (100 cm) are shown relative to subsoil horizons (20 cm) (see the “Methods” section for details on NEXAFS analysis). Error bars denote the standard error of the mean calculated from the analysis of three replicate soil cores
