Fig. 5

From: An extracellular matrix-related prognostic and predictive indicator for early-stage non-small cell lung cancer

Fig. 5

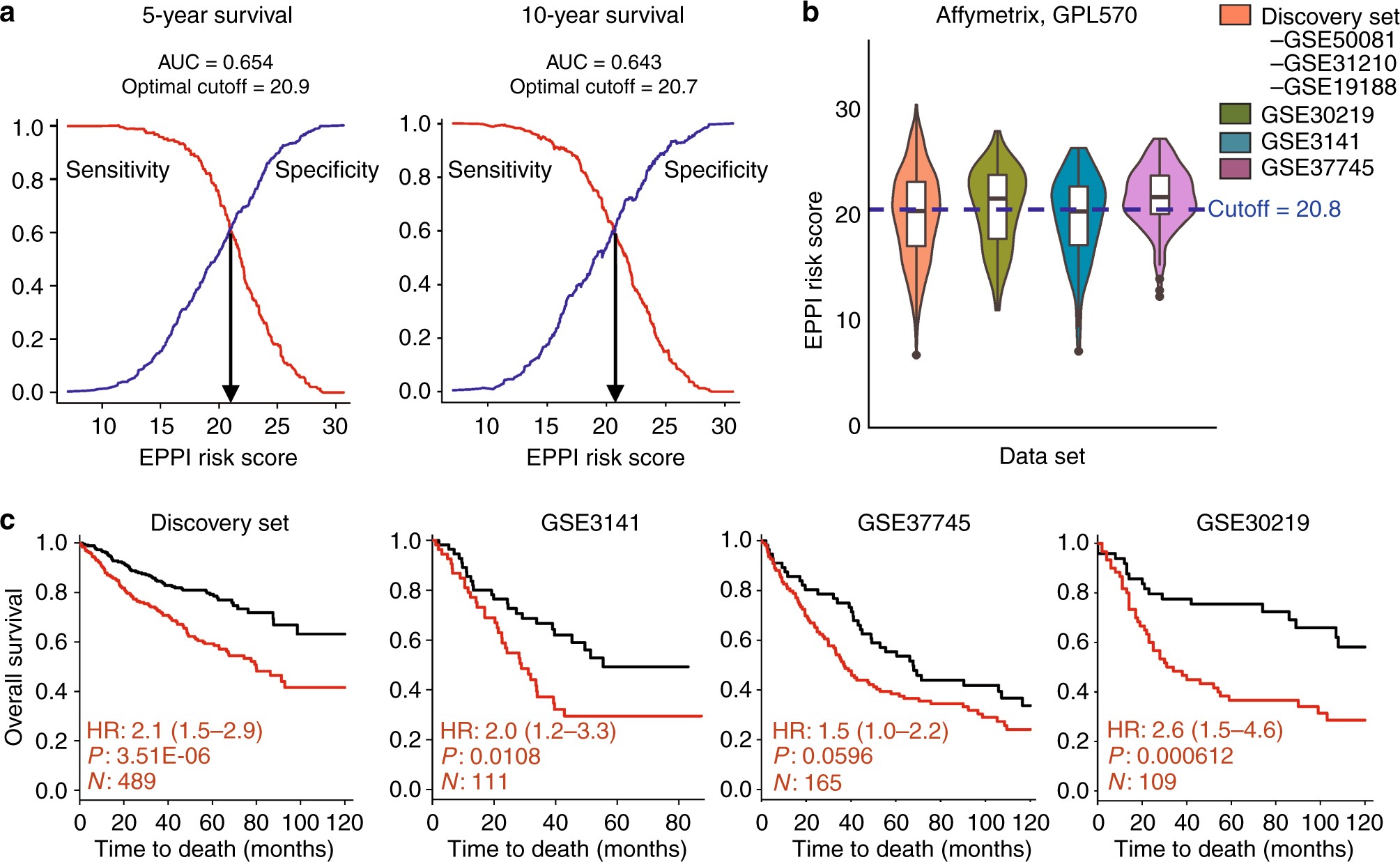

Identification and validation of a common cutoff score using AUC analyses. a Time-dependent survival ROC curves at 5-year and 10-year from the discovery set are shown with best trade-off between sensitivity and specificity. b Violin plot depicting the score distribution in each data set probed with Affymetrix-GPL570 platform; a cutoff score of 20.8 was used to stratify patients into 2 groups. c Validation of prognostic performance in multiple data sets probed in Affymetrix-GPL570 platforms. The adjusted hazard ratio (HR), p-value (P), and the number of patients successfully stratified (N) determined from univariate Cox regression analyses are shown on each survival KM curve. Black and red KM curves represent predicted low-risk and high-risk group, respectively
