Fig. 4
From: The effect of artificial selection on phenotypic plasticity in maize

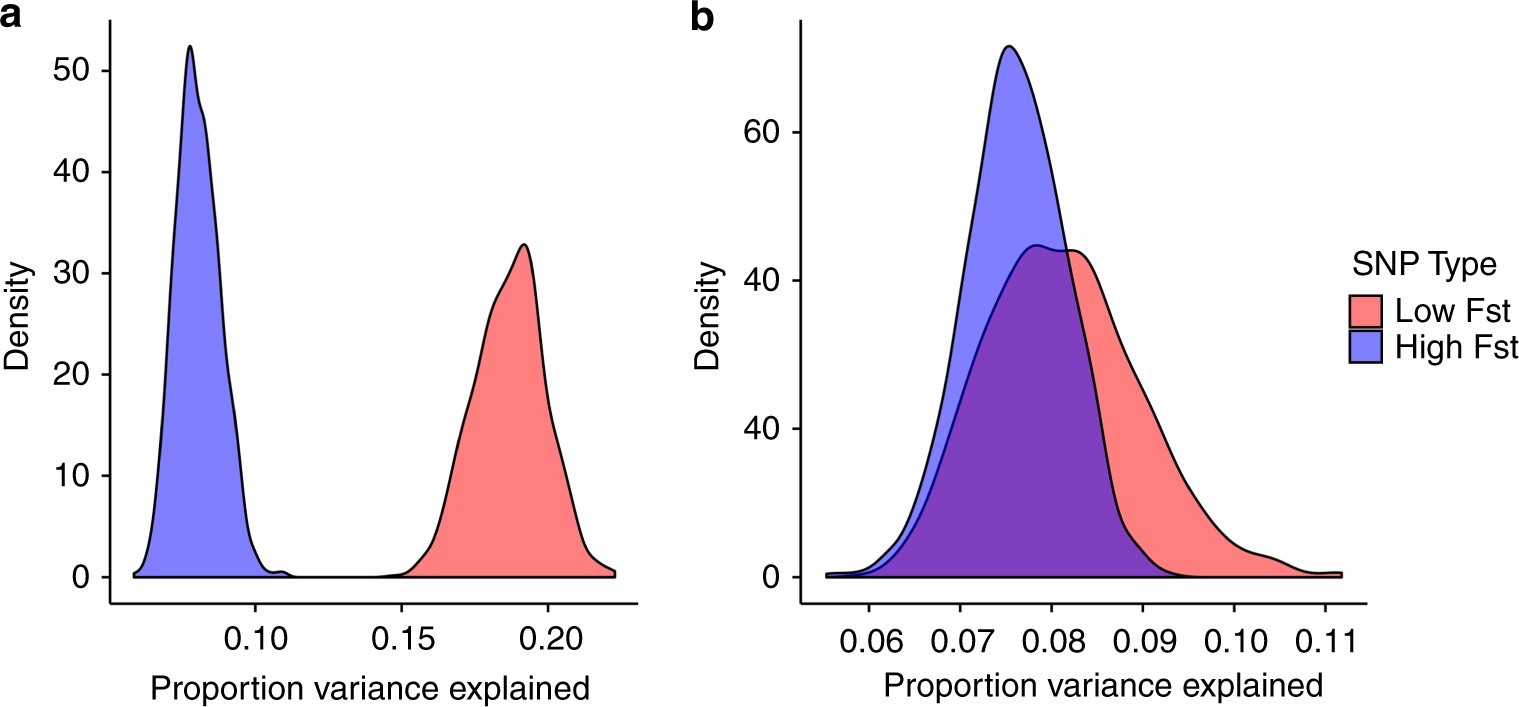

Empirical distribution of estimated variance components for high and low FST G × E interaction. Distributions of G × E variance attributable to high and low FST SNPs for grain yield (a) and plant height (b) from 1000 replicated model fittings. 1248 high FST SNPs were included, while each model fitting used a subsample of 1248 low FST SNPs chosen randomly from the full set of 263,243 low FST SNPs. Proportion variance explained represents non-environmental model variance, i.e., was calculated using only genotype, G × E for high and low FST SNPs, and residual variances
