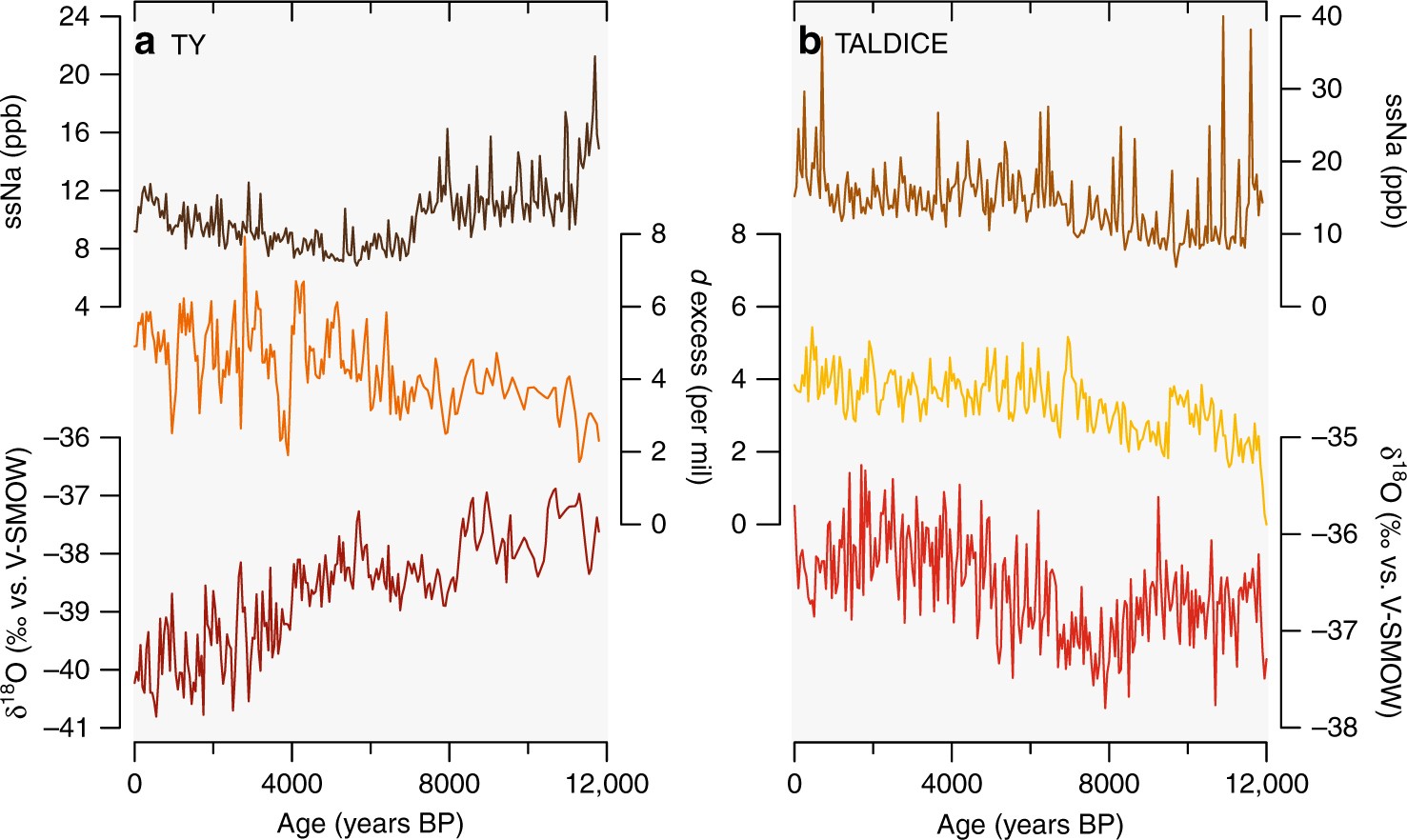

Fig. 3
From: Holocene sea ice variability driven by wind and polynya efficiency in the Ross Sea
Holocene ice core records. a sea salt sodium concentration in part per billion (dark brown line), deuterium excess in ‰ vs. V-SMOW (orange line) and δ18O in ‰ vs. V-SMOW (dark red line) in Taylor Dome ice core33,34,35. b sea salt sodium concentration in part per billion (brown line), deuterium excess in ‰ vs. V-SMOW (yellow line) and δ18O in ‰ vs. V-SMOW (red line) in TALDICE ice core. All ice core records were resampled on a 50-year time step
