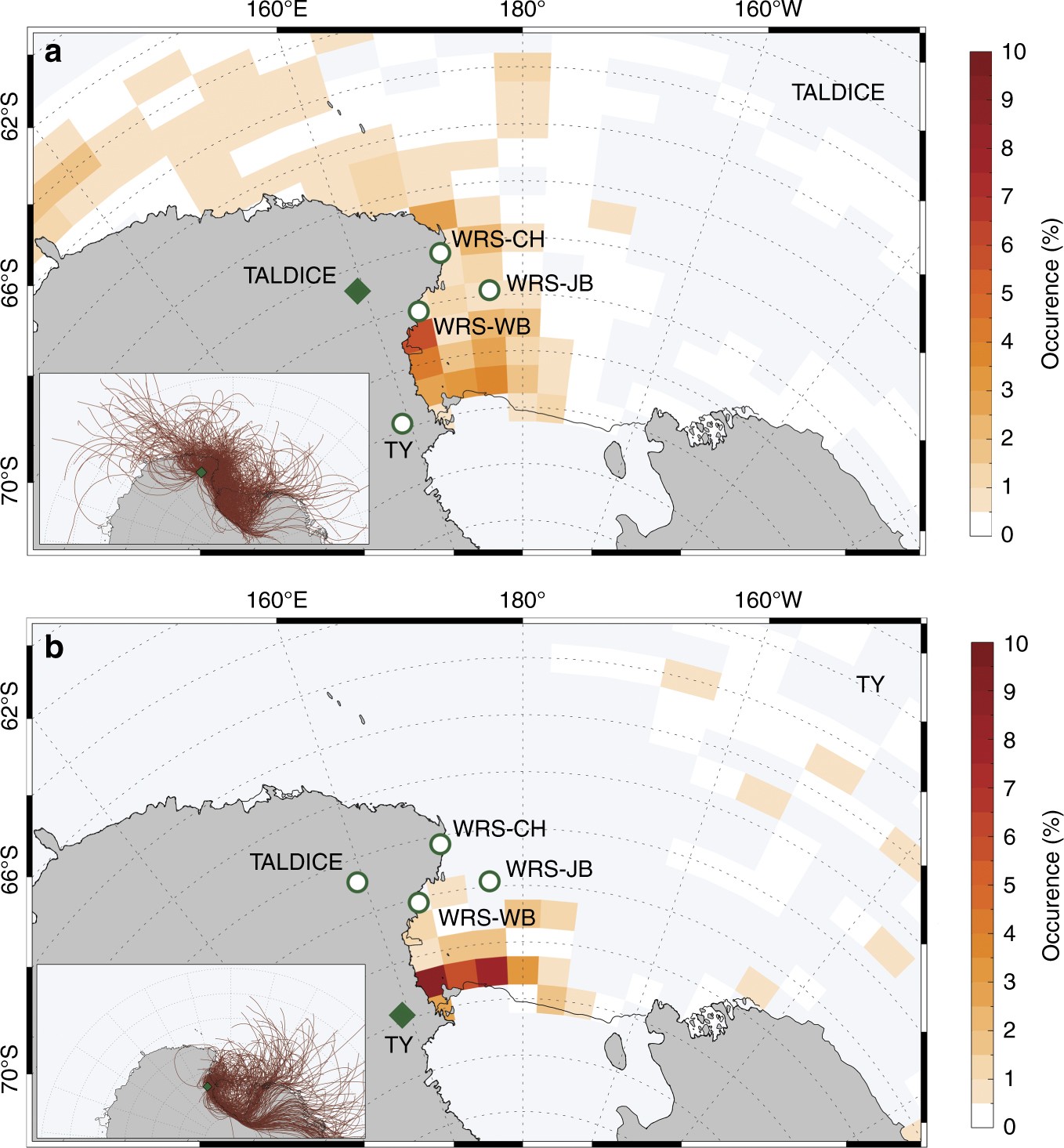

Fig. 4
From: Holocene sea ice variability driven by wind and polynya efficiency in the Ross Sea
Sea salt aerosol source regions and paths from sea ice area toward ice core using model air mass trajectories. a, b occurrence (%) of loading condition for selected back trajectories. Back trajectories can be considered loaded above the sea ice if they flow above an area with sea ice values between 15 and 75% and wind speed >3 m s−1. The occurrence of events is spatially cumulated for a regular grid of 5°×1° of longitude and latitude (the number of occurrences for each site is in percentage in respect to the total number of occurrences for the entire domain. The entire domain is defined as: 80°S<latitude<50°S; 0°<longitude<180°E−180°W. a, b Insets: 3 days back trajectories ending at 1000 m over TALDICE (a inset) and TY (b inset) and spending more than 10% of their path over the sea and <40% over the continent (red lines). Only trajectories related to March, April, May, June, July, August, September, October and November for the period 1979–2012 are considered. Among the selected trajectories, only those with a permanence of at least three consecutive hours over sea ice concentration>15% are considered. The green open diamond represents the location of TALDICE (a) and TY (b), whereas open circles indicate the location of the three marine cores (Cape Hallett WRS_CH; Wood Bay WRS_WB and Joides Basin WRS_JB) and the other ice core
