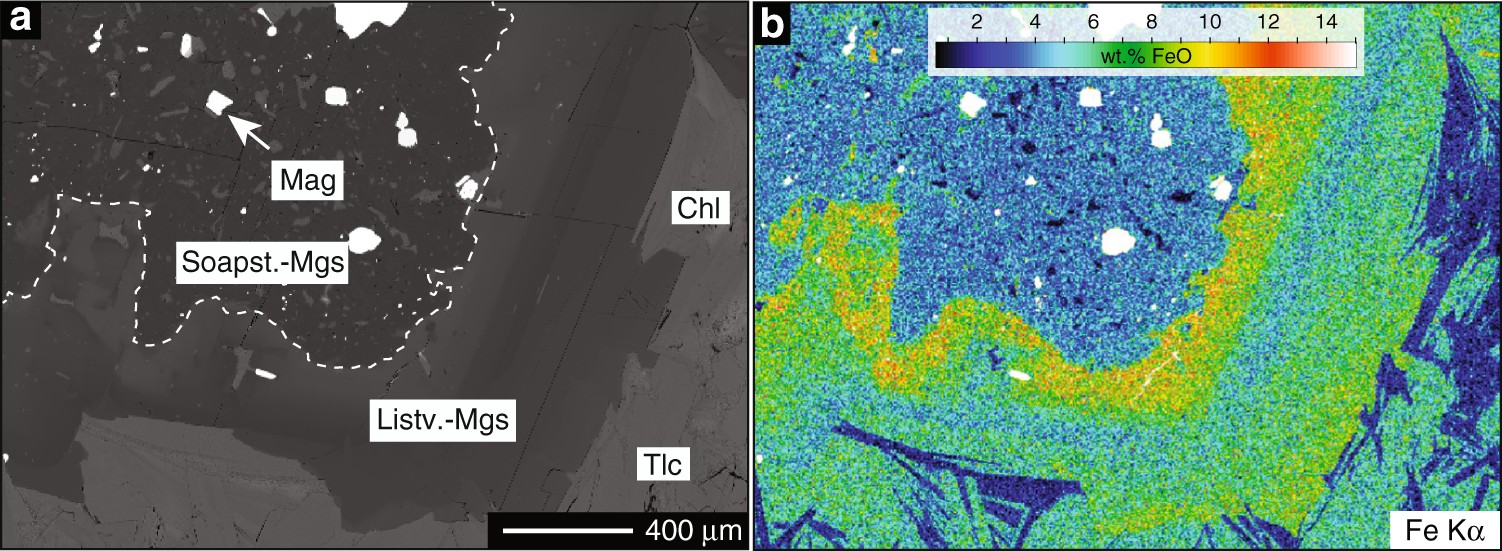

Compositional zoning in listvenite magnesite BSE image. a and quantitative element map of zoned magnesite b in the listvenite showing the increase in FeO in the euhedral magnesite rim overgrowing a low FeO, magnetite inclusion rich, anhedral magnesite core related to earlier soapstone formation
