From: Global role of the bacterial post-transcriptional regulator CsrA revealed by integrated transcriptomics

Fig. 4

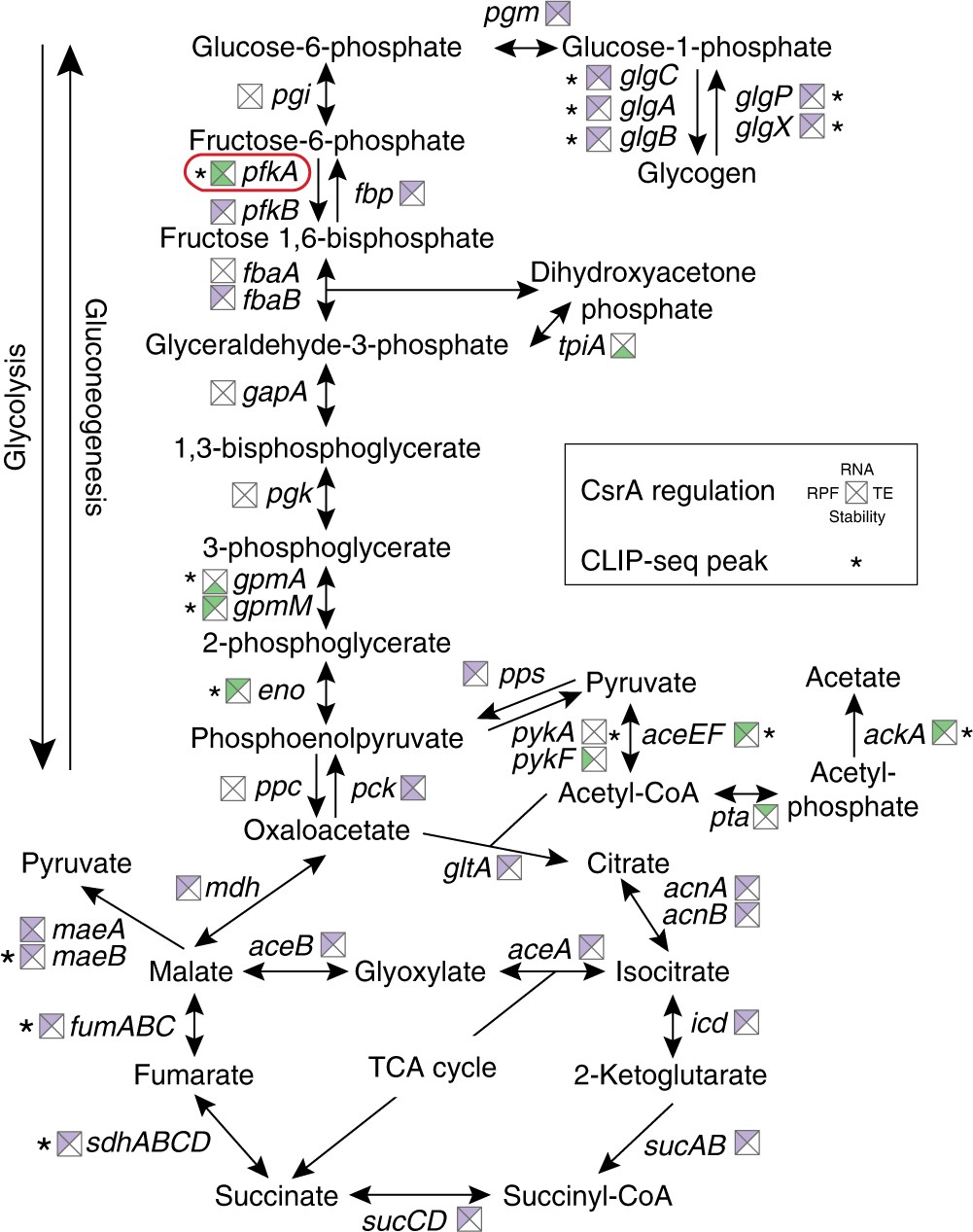

CsrA activates glycolysis and represses gluconeogenesis and the tricarboxylic acid cycle. Effects of CsrA on gene expression in central carbon metabolism. Squares near gene names show effect of CsrA on translation (RPF, left), RNA abundance (RNA, top), RNA stability (stability, bottom), and/or translation efficiency (TE, right). Purple indicates repression by CsrA and green indicates activation. Asterisks indicate that a CsrA CLIP-seq peak is associated with the gene. A red box highlights the key role of pfkA on CsrA-dependent effects on glycolysis
