From: Volcanism in slab tear faults is larger than in island-arcs and back-arcs

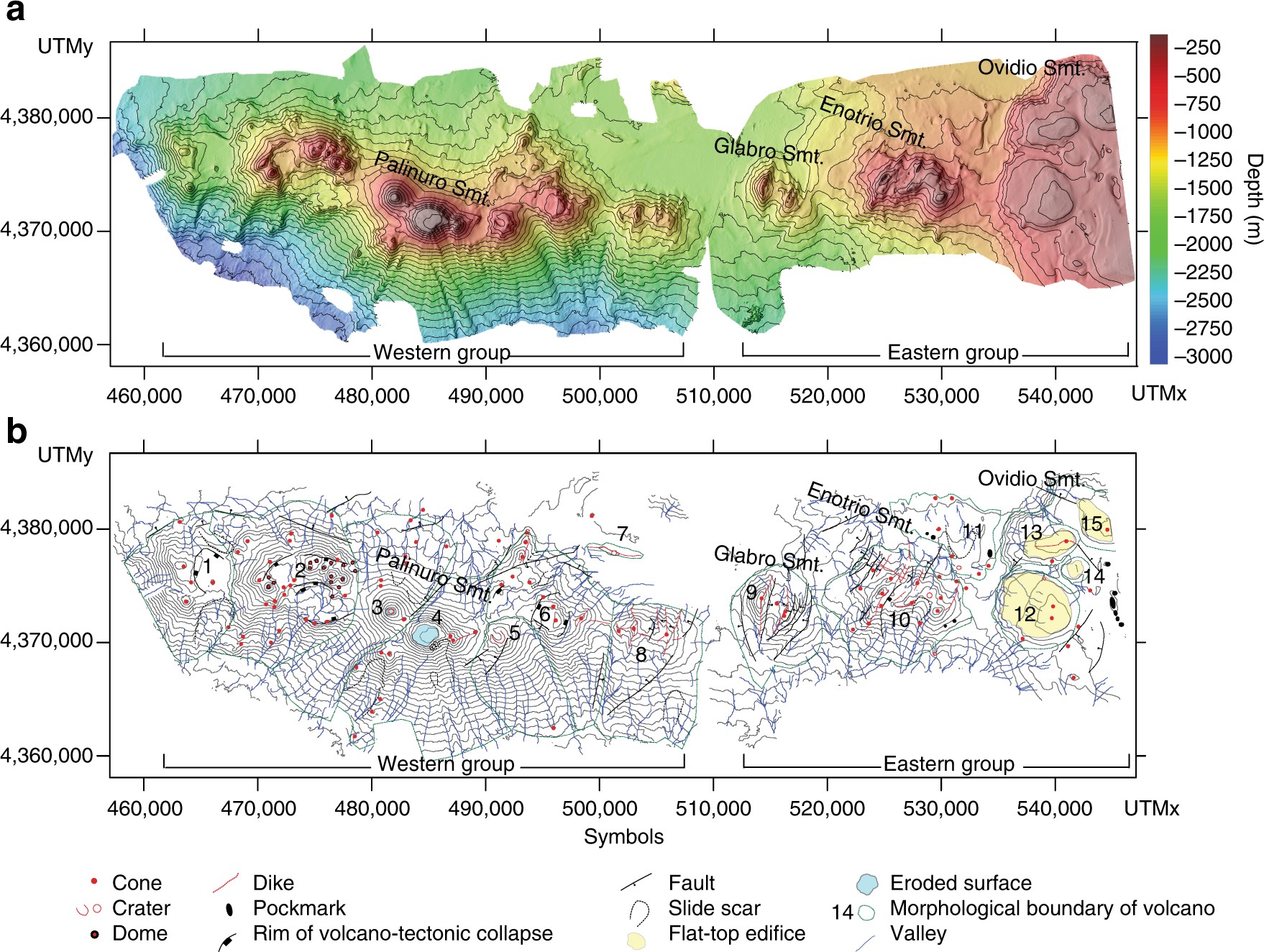

Bathymetry and morphostructural setting of the Palinuro STEP volcanic chain. a Shaded relief and bathymetry of the 25 m × 25 m STEP Volcanic Chain Digital Terrain Model (WGS85, UTM Zone 33N; see auxiliary material); the contour lines are 100 m spaced. b Morphological map of the STEP volcanic chain with the main volcanoes marked by numbers
