Fig. 3
From: Volcanism in slab tear faults is larger than in island-arcs and back-arcs

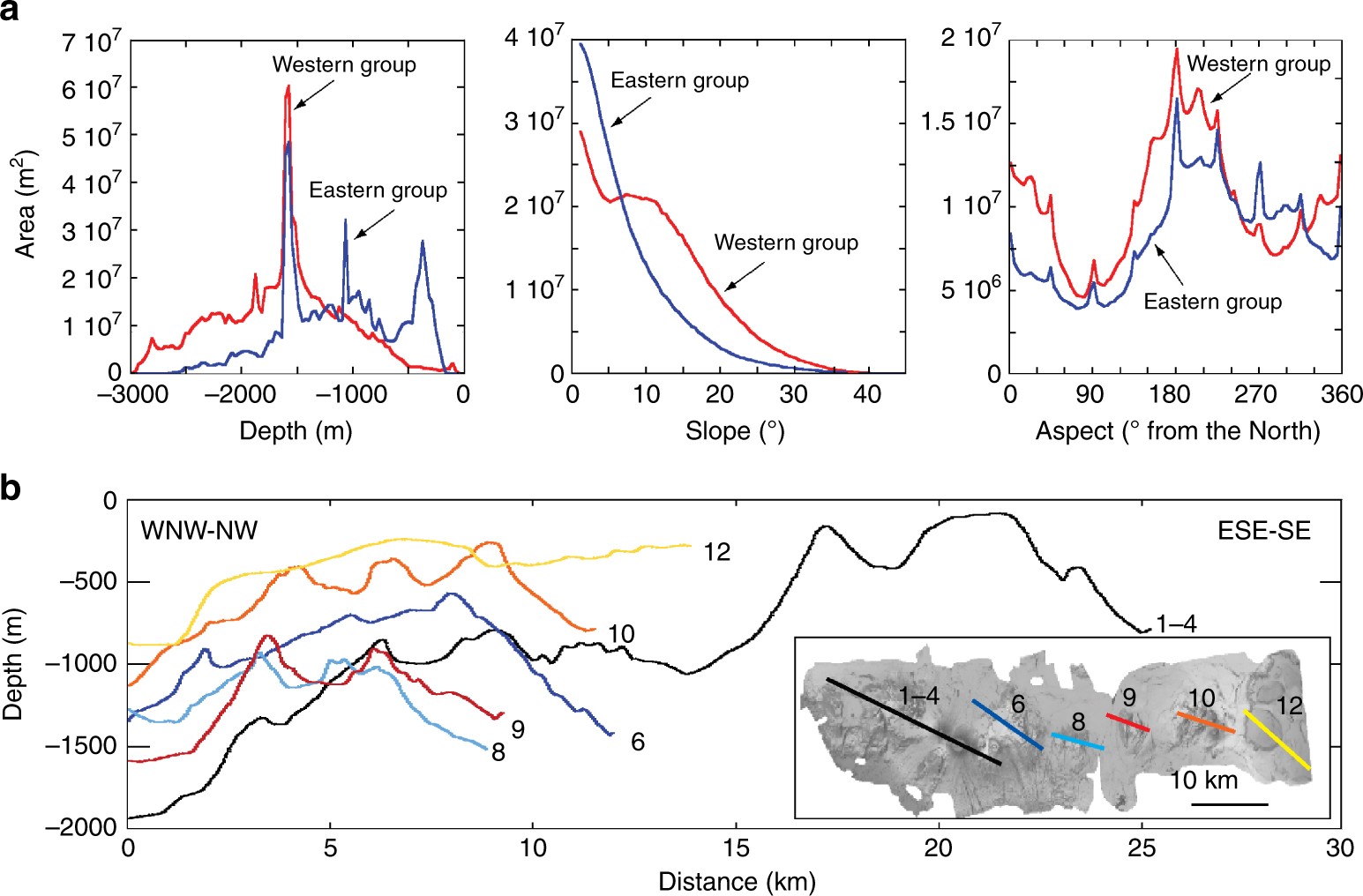

Morphometry of the Palinuro STEP volcanic chain. a Depth vs. area, slope vs. area, and aspect vs. area plots of the STEP volcanic chain as calculated from the morphometric parameters of the DTM in Fig. 2a (see auxiliary material). b Bathymetric profiles of the volcanoes 1–4, 6, 8, 9, 10, and 12 (location in b)
