Fig. 3 | Nature Communications

Fig. 3

From: Dengue virus-reactive CD8+ T cells mediate cross-protection against subsequent Zika virus challenge

Fig. 3

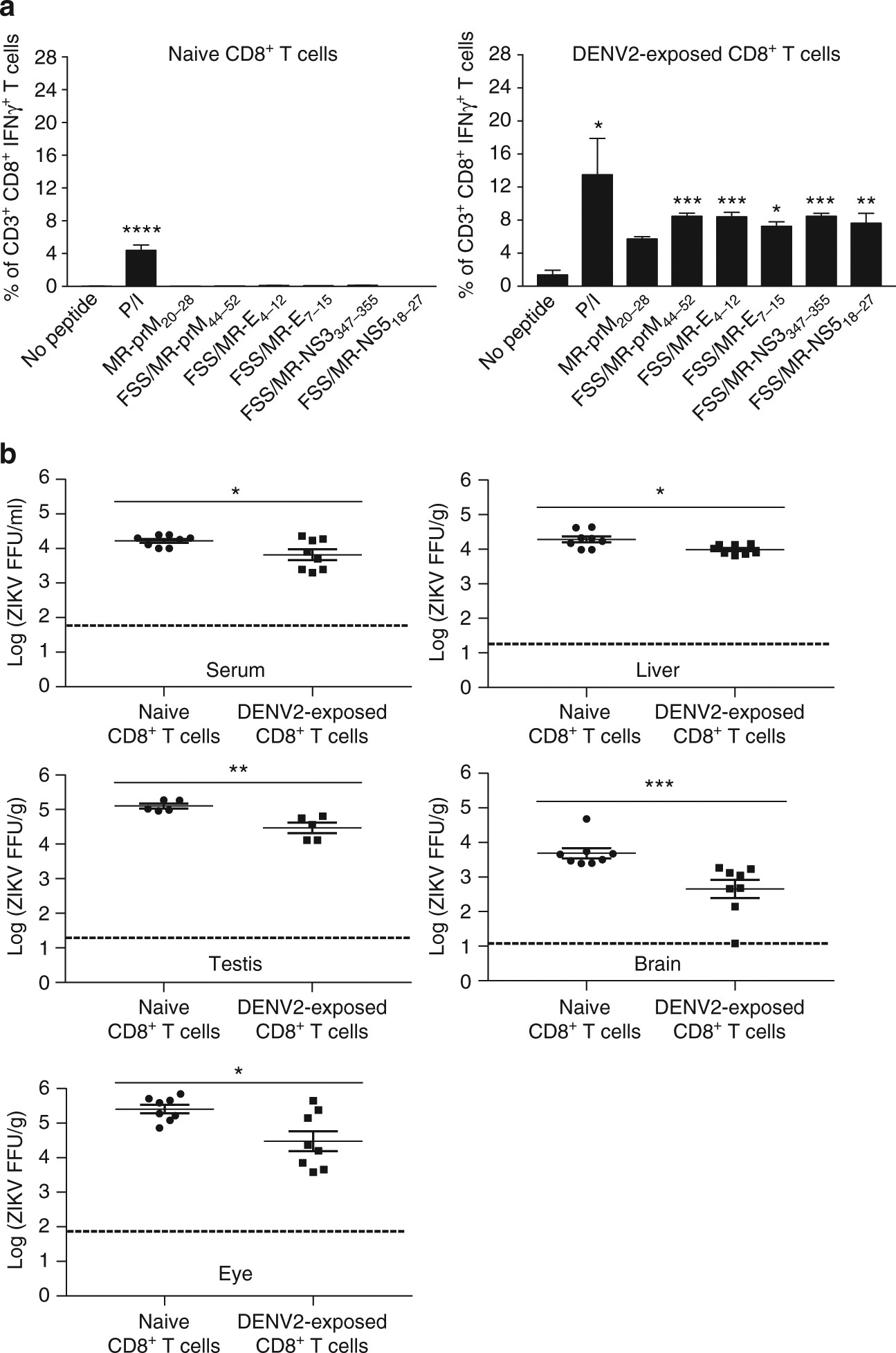

Reduced ZIKV burden in Ifnar1 −/− mice adoptively transferred with DENV2-exposed CD8+ T cells. Naive (1 × 107) and DENV2-exposed CD8+ T cells (1 × 107) from Ifnar1 −/− mice were adoptively transferred to naive recipient Ifnar1 −/− mice. Three days post ZIKV challenge (1 × 104 FFU of ZIKV FSS13025, retro-orbital route), cross-reactive peptide-specific CD8+ T cell responses (a) and ZIKV levels in sera and indicated organs (b) were detected by ICS assay and FFA, respectively. Data are pooled from two independent experiments (n = 3–4 mice per group per experiment) and expressed as mean ± SEM. *p < 0.05, **p < 0.01, ***p < 0.001,****p < 0.0001. a A Kruskal–Wallis one-way ANOVA. b Two-tailed Mann–Whitney test. Supplementary Tables 1 and 2 provide exact values of n and p
