Fig. 5

From: Hourglass Dirac chain metal in rhenium dioxide

Fig. 5

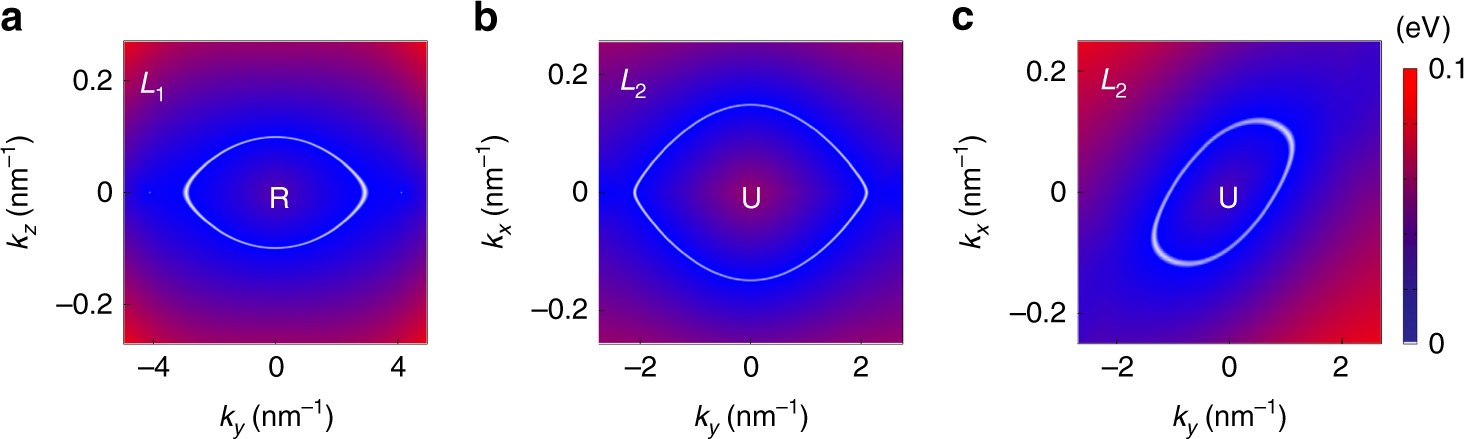

Dirac chain under lattice deformation. a, b Dirac chain is maintained under lattice distortion that preserves the symmetry. The figures show the two loops when lattice parameters are increased by 5%. c By changing the angle between a and b axis (here to 80°), symmetry is reduced and only L 2 loop is preserved
