Fig. 6
From: Broad modulus range nanomechanical mapping by magnetic-drive soft probes

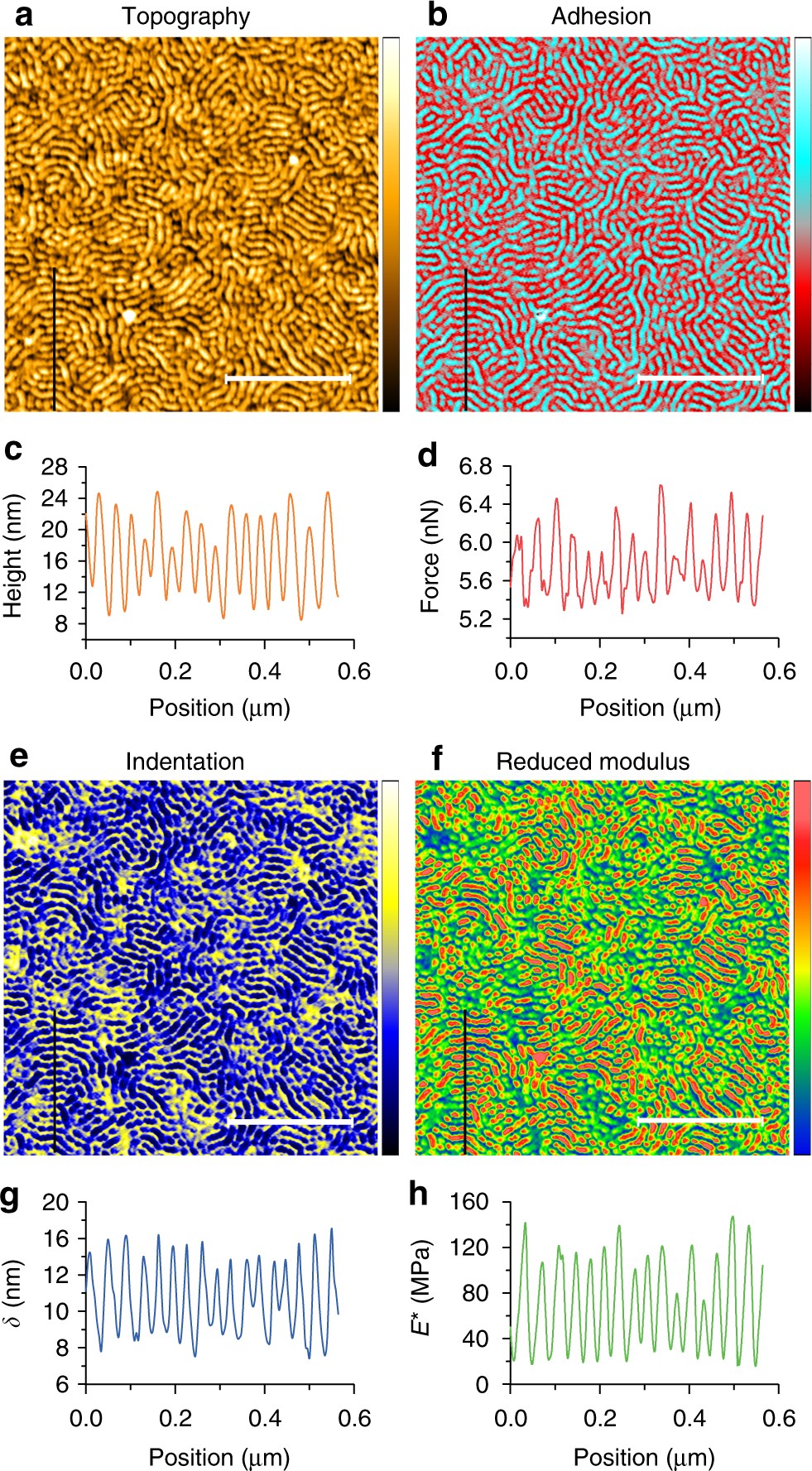

High spatial resolution NM of a SEBS polymer. The same probe was used to map a SEBS polymer. a Topography. b Map of the adhesion force. c Height profile obtained from a. d Profile of the adhesion forces obtained from b. e Map of the indentation depth (δ). f Map of the reduced elastic modulus calculated from DMT theory. g Profile of δ obtained from e. h Profiles of the elastic modulus obtained from f. Scale bar, 500 nm
