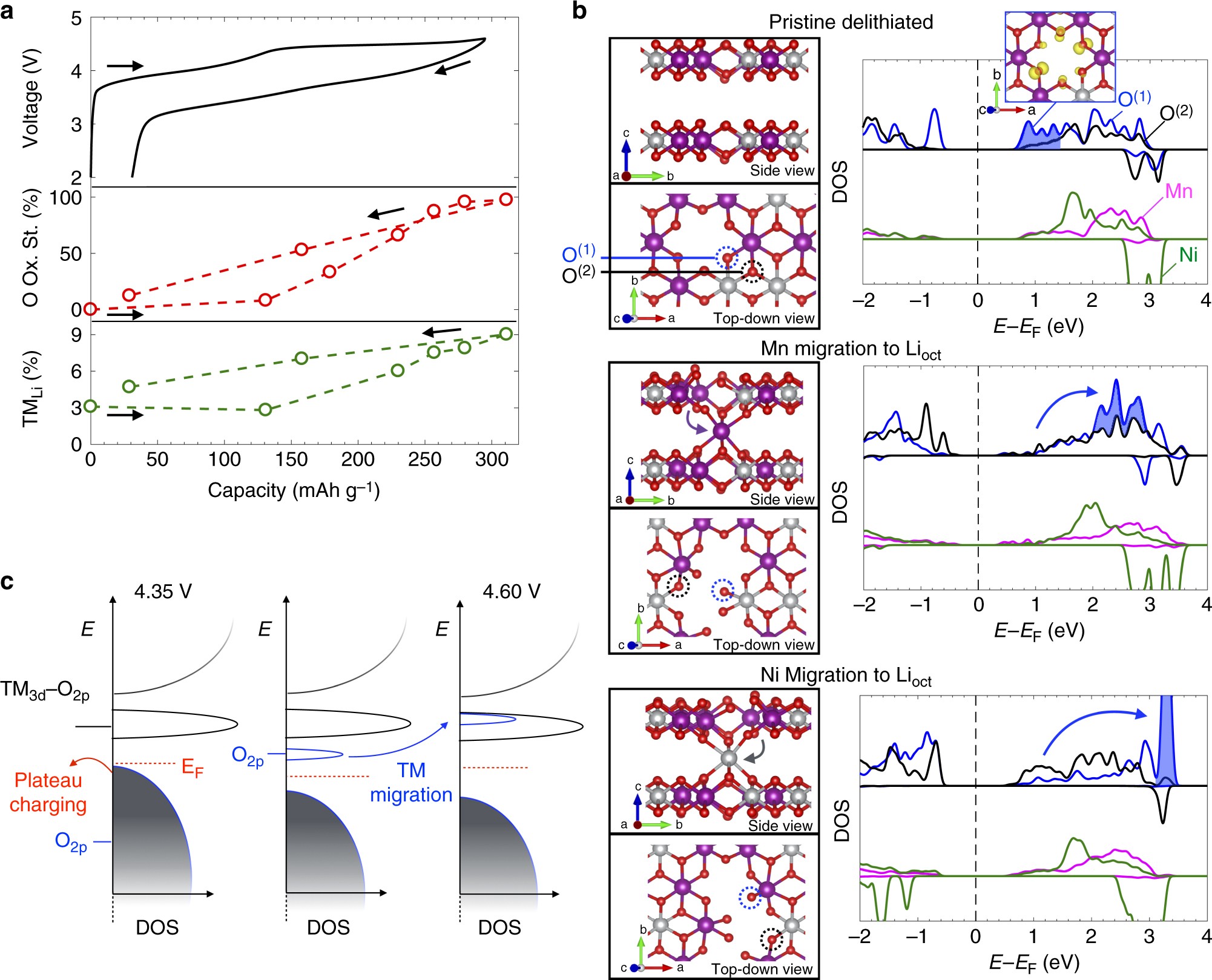

Fig. 6

Effect of TM migration on electronic structure. a Plot of the O fractional oxidation state (red) and the migrated TM fraction (green) as a function of capacity, showing the clear link between hysteresis in the TM migration and voltage hysteresis in the O redox. Error bars indicating fitting residual and refinement error for the O oxidation state and TM migration fraction, respectively, are smaller than the data symbols and are therefore not shown. b pDOS for the TMs and the two-coordinate (O⁽¹⁾, blue) and three-coordinate (O⁽²⁾, black) oxygen environments in the pristine delithiated state (top), and after Mn (middle) and Ni (bottom) migration into octahedral sites in the Li layer. The integrated charge density for the lowest unoccupied states in the pristine delithiated structure (blue shaded area of the pristine DOS) is shown in the top right inset. The total TM pDOS is normalized by the number of TMs in the supercell for comparison with the single-site oxygen pDOS. Schematics of each supercell used to generate the pDOS are shown to the left, with the plotted O⁽¹⁾ and O⁽²⁾ oxygen environments circled. c Schematic of the reorganization of the electronic structure due to TM migration
