Fig. 5

From: Differentially evolved glucosyltransferases determine natural variation of rice flavone accumulation and UV-tolerance

Fig. 5

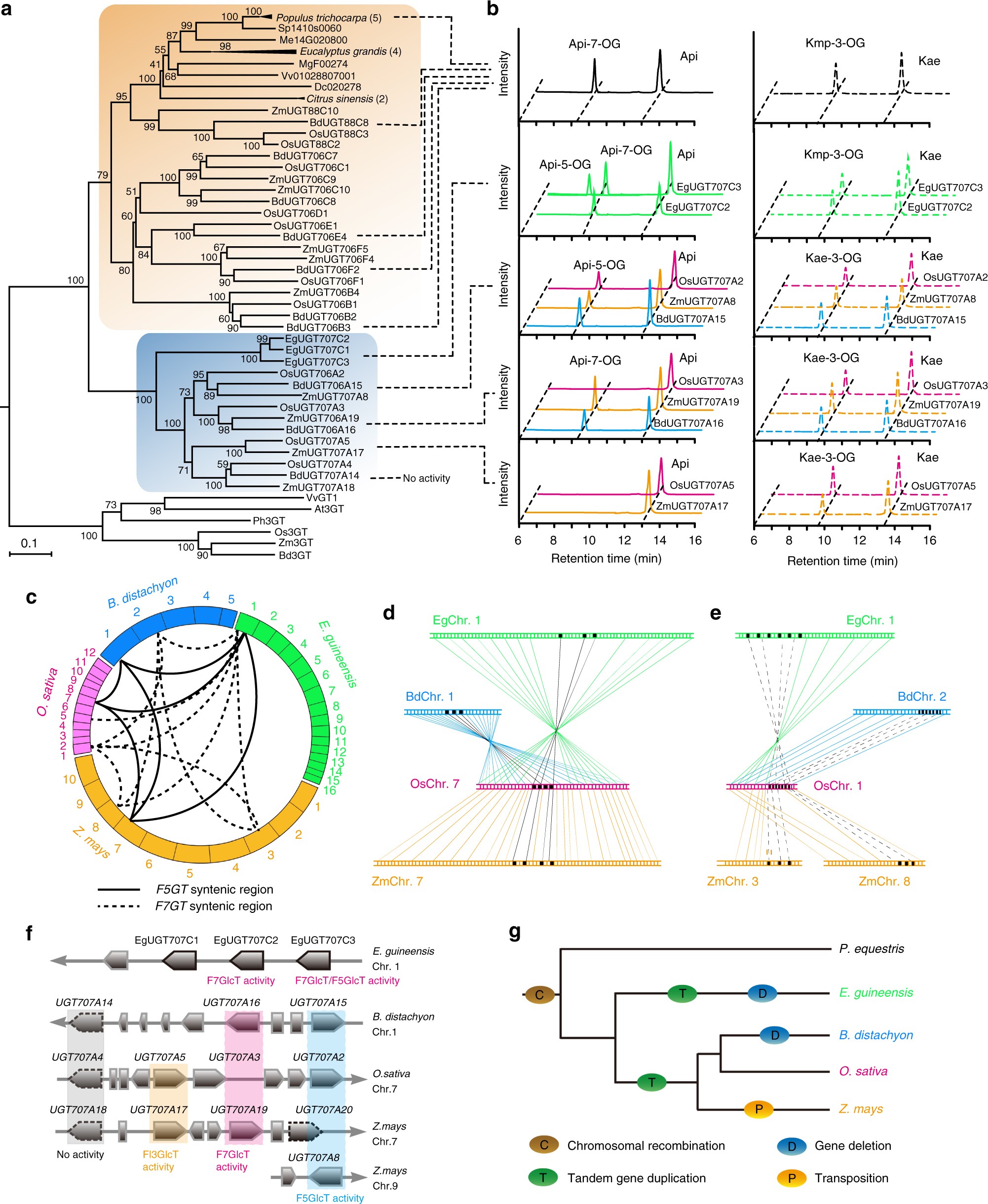

Genomic structure and function analysis of the F7GlcT and F5GlcT gene cluster region in plants. a Phylogenetic analysis using amino acid sequence of UGT genes obtained from different plant species. Scale implies amino acid substitutions per site. b In vitro biochemical assays of proteins from populus, palm, maize and Brachypodium. c Gene syntenic regions found in plant species. Solid line indicates F5GlcT syntenic regions and dashed line indicates F7GlcT syntenic regions. Syntenic gene linkage between plant species for F5GlcT (d) and F7GlcT (e). f Graphical map of F5GlcT cluster found among Commelinaceae species. EgUGT707C1 was not successfully cloned. g Hypothetical scheme of evolutional events in F5GlcT gene cluster region among monocot plants
