From: Single-cell genomics of multiple uncultured stramenopiles reveals underestimated functional diversity across oceans

Fig. 3

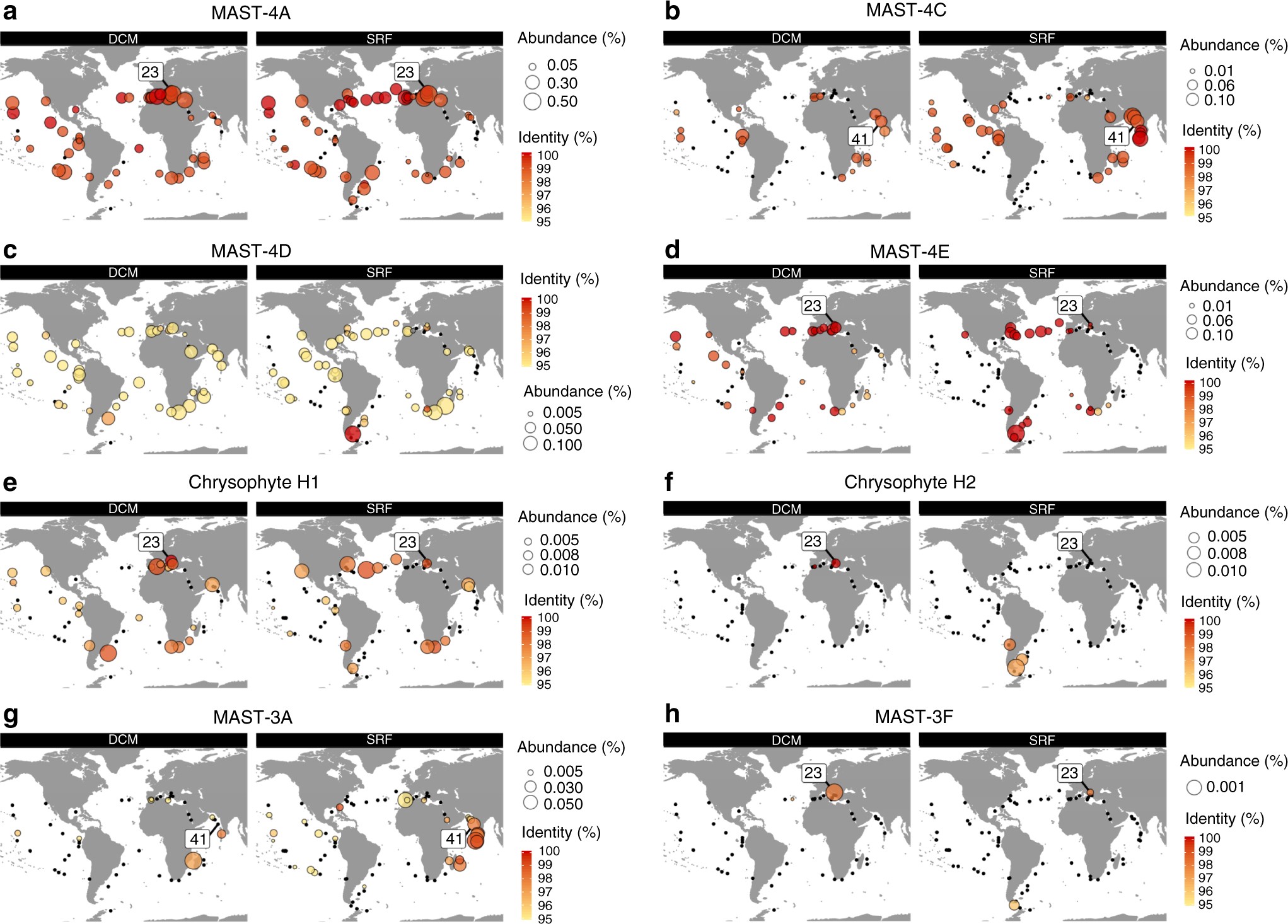

Biogeographic distribution of the SAG lineages based on metagenome read recruitment with separation between deep chlorophyll maximum and subsurface. Global maps showing the presence of the SAG lineages based on metagenomics read mapping at each Tara Oceans station either as a black dot (no signal detected) or as a circle whose diameter indicates the species relative abundance. Abundance in samples from deep chlorophyll maximum (DCM, left panel) often differs from surface samples (SRF, right panel): only MAST-4A shows the same pattern in DCM and SRF samples (a). The color inside each circle provides the median percentage similarity of the reads to the reference. The station from where the SAG originates is indicated by its number. a MAST-4A; b MAST-4C; c MAST-4D; d MAST-4E; e Chrysophyte H1; f Chrysophyte H2; g MAST-3A; and h MAST-3F
