Fig. 3

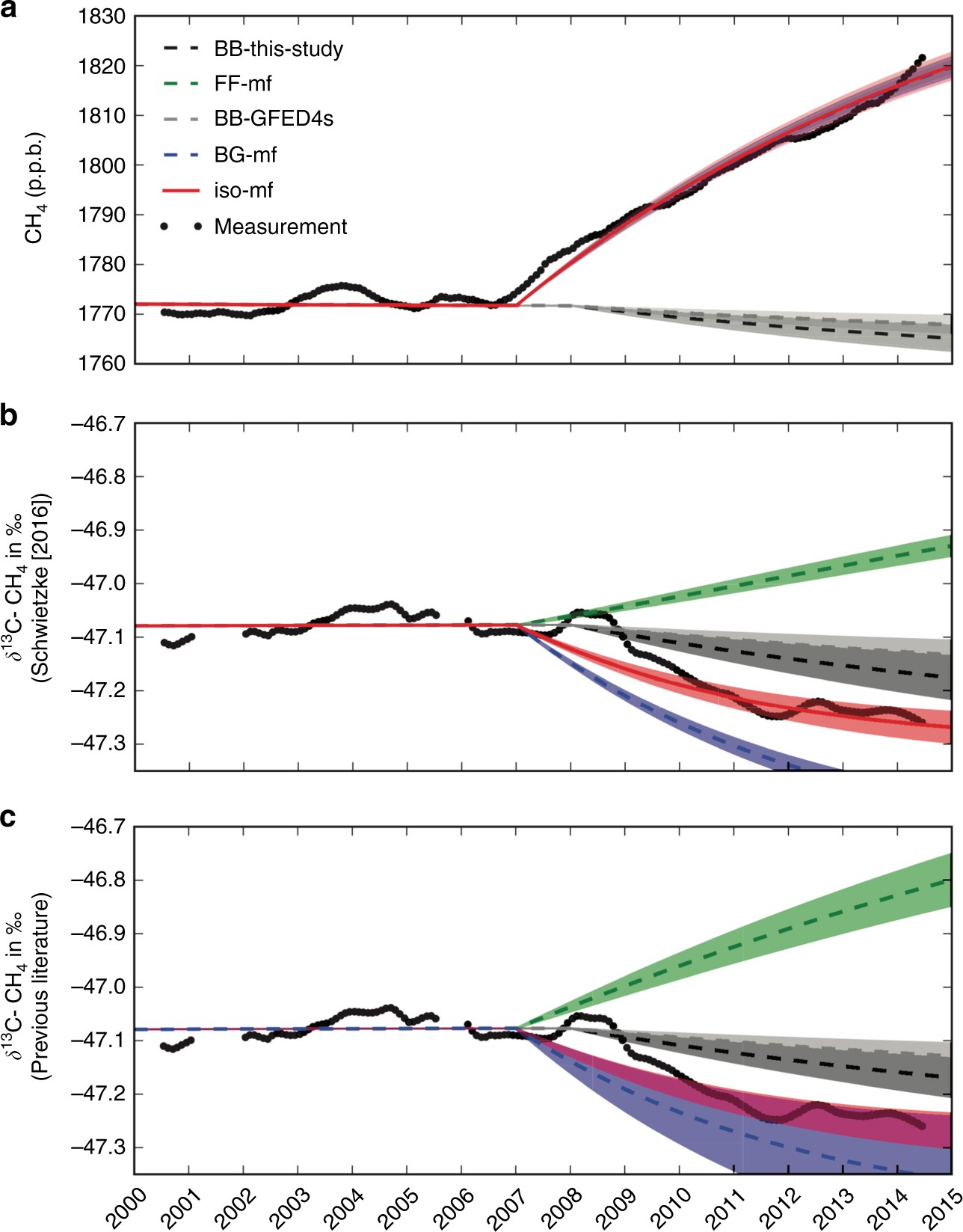

Simulated CH4 and δ13C-CH4 values. CH4 mixing ratios (a) and simulated by the box model for values shown in Table 1 and listed by model scenario in Table 2. b, c describe the simulated δ13C-CH4 using the updated values from Schwietzke et al.15 and from prior literature. The biomass burning changes are prescribed based on the estimates from this study (BB-this-study) and GFED4s (BB-GFED4s). For the BG-mf and FF-mf scenarios, the CH4 mole fractions growth is explained by an emission increase of only biogenic or only fossil fuel, respectively (BG-mf and FF-mf overlap in a). The iso-mf scenario shows the best fit to the isotope and mole fraction data, using an additional source of 24.7 ± 1.4 Tg CH4 per year with an isotopic signature of −56.1 ± 1.1‰. The required adjustments to the methane budgets for fossil fuel and biogenic sources are shown in Figs. 4 and 5. The 1-sigma error margins are the propagated uncertainties of isotopic source signatures and uncertainties of the perturbations. The measurements shown here are the calculated global average of NOAA-ESRL network measurements
