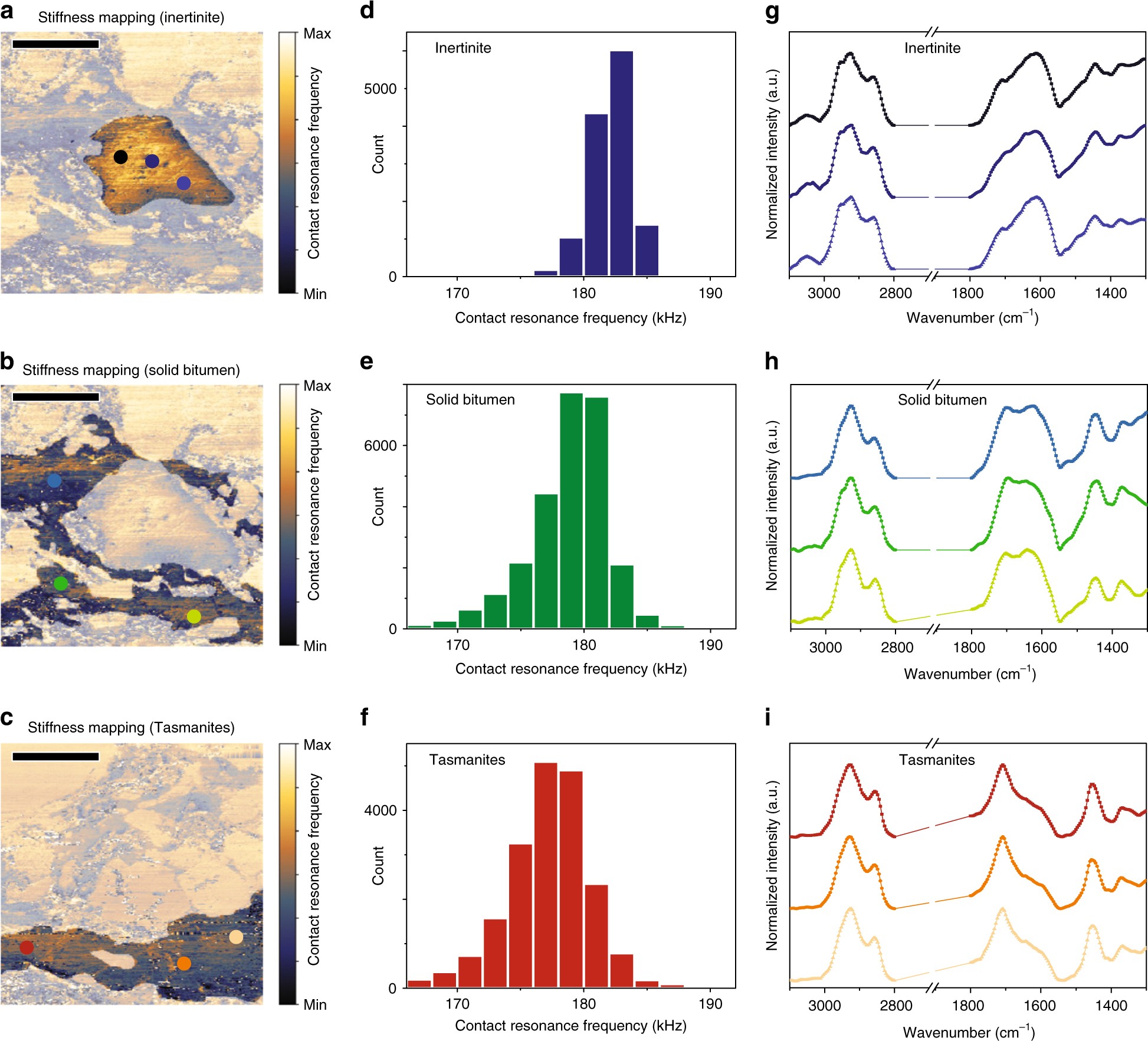

Nanoscale geochemical and geomechanical characterization. Inertinite (a), solid bitumen (b), and Tasmanites (c) in stiffness images are identified by comparison with photomicrograph of the same field (Figs. 1a and 2a). Areas outside of regions of interest are masked with opaque color to screen out irrelevant contact resonance (CR) frequency measurements. CR frequency histogram for 130.74 μm2 area of inertinite (d), 272.97 μm2 area of solid bitumen (e), and 201.67 μm2 area of Tasmanites (f). Localized IR spectra from different locations (colored points in corresponding stiffness images) in inertinite (g), solid bitumen (h), and Tasmanites (i)
