Fig. 2

From: Calcination does not remove all carbon from colloidal nanocrystal assemblies

Fig. 2The alternative text for this image may have been generated using AI.

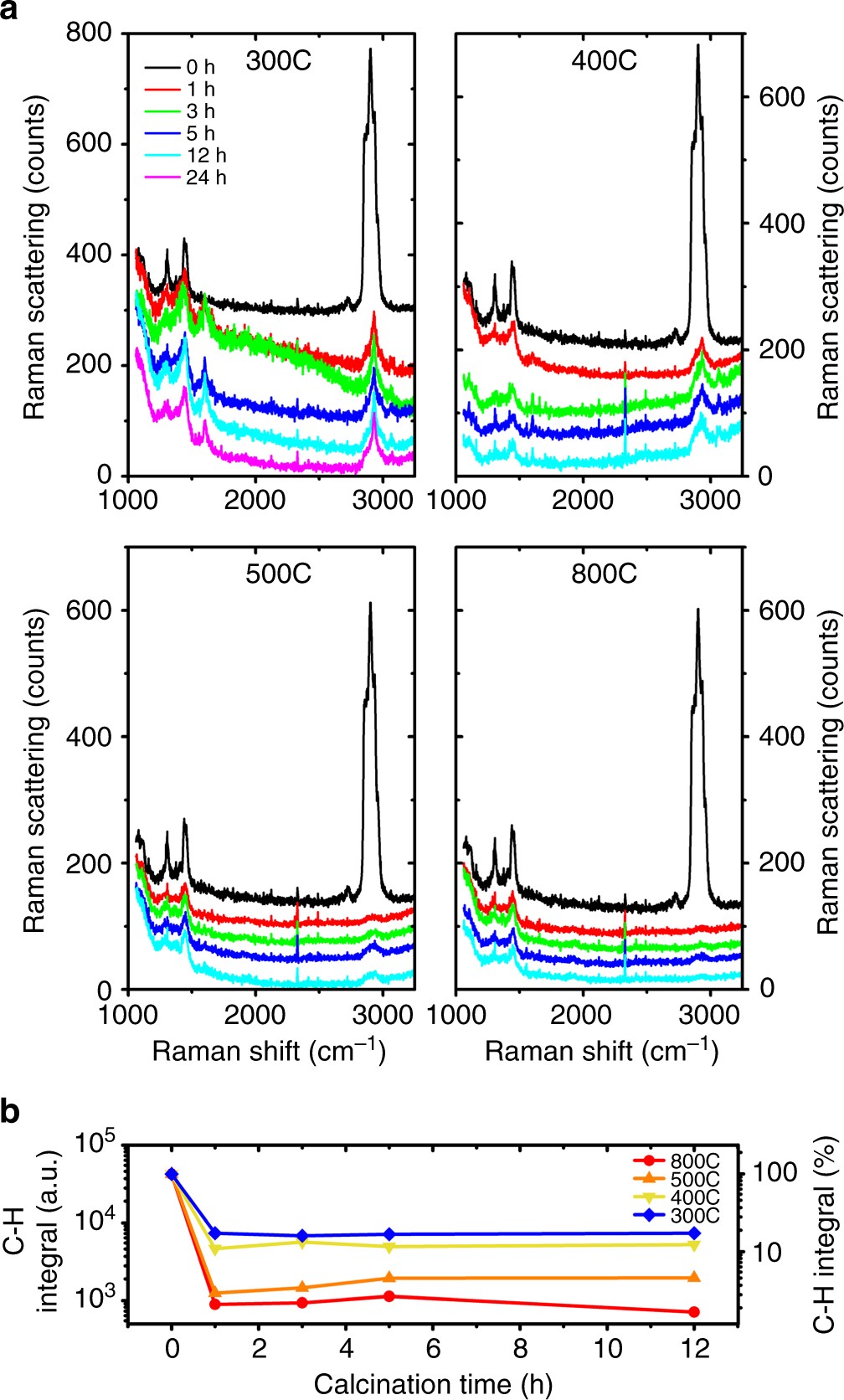

Effect of calcination on the C–H bond content. a Raman spectra of the ZrO2 CNAs before and after calcination at 300, 400, 500, and 800 °C for 1, 3, 5, and 12 h showing a reduction in the C–H content with increasing temperature. b The integral of the C–H Raman peaks for unprocessed and calcined CNAs with time, at different calcination temperatures. The plot shows a sharp decrease in the C–H content in the first 1 h of calcination followed by a plateau, at all temperatures
