Fig. 2

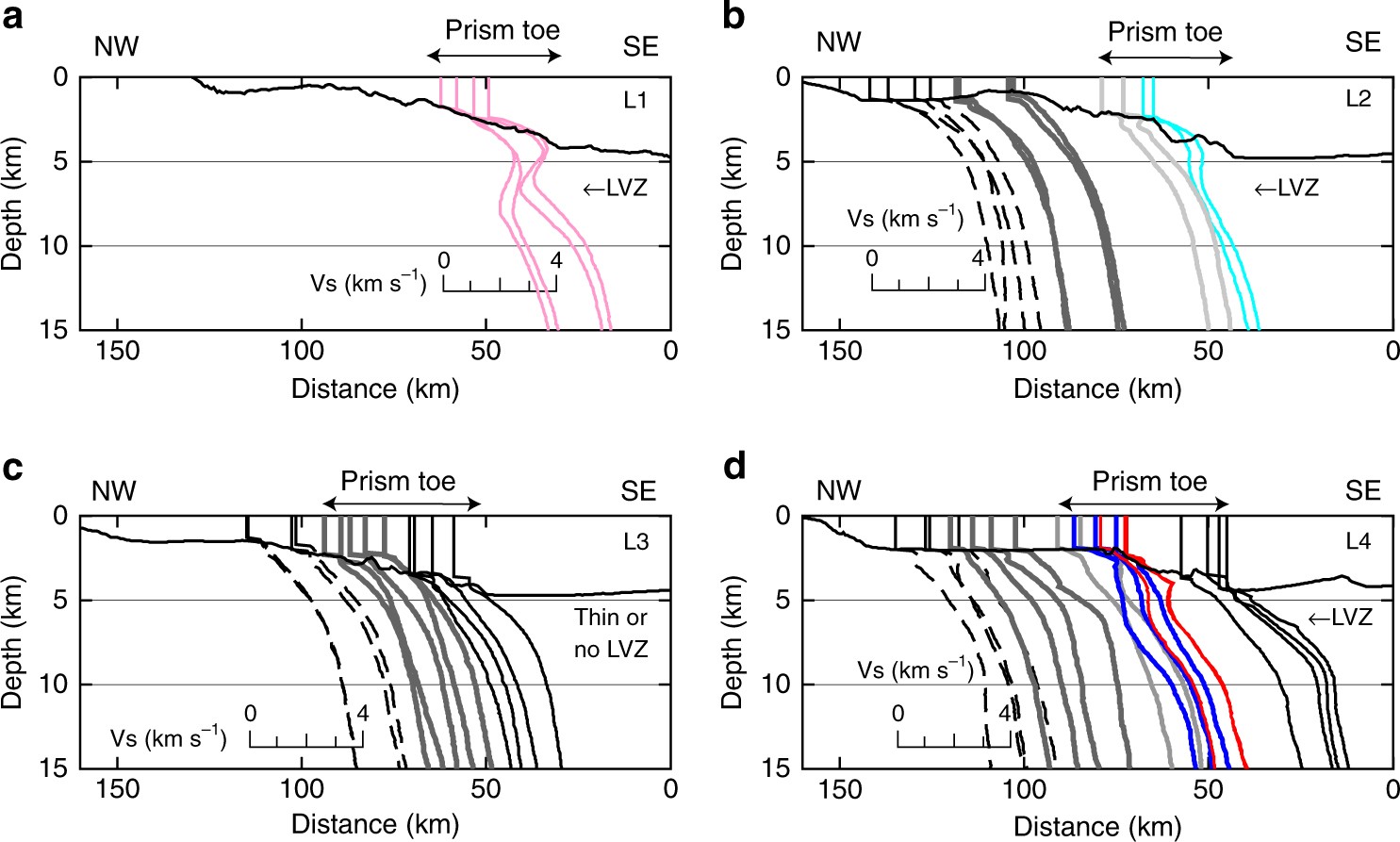

Vs profiles for each line. Vs profiles for a L1, b L2, c L3, and d L4 (Fig. 1). Station locations (Fig. 1) are projected onto L1–L4 and corresponding Vs profiles are plotted at the projected location. Pink, pale blue, blue, and red lines represent the LVZ feature at nodes MRG, MRF, KMB, and KMD, respectively. Black solid, dashed, and gray lines correspond to Vs profiles at stations belonging to the same nodes, but without the LVZ feature. Light gray lines in d correspond to Vs profiles at KMD16 (right) and KMB08 (left) (Supplementary Fig. 1), without the LVZ feature. Solid line at each panel indicates bathymetry along each line
