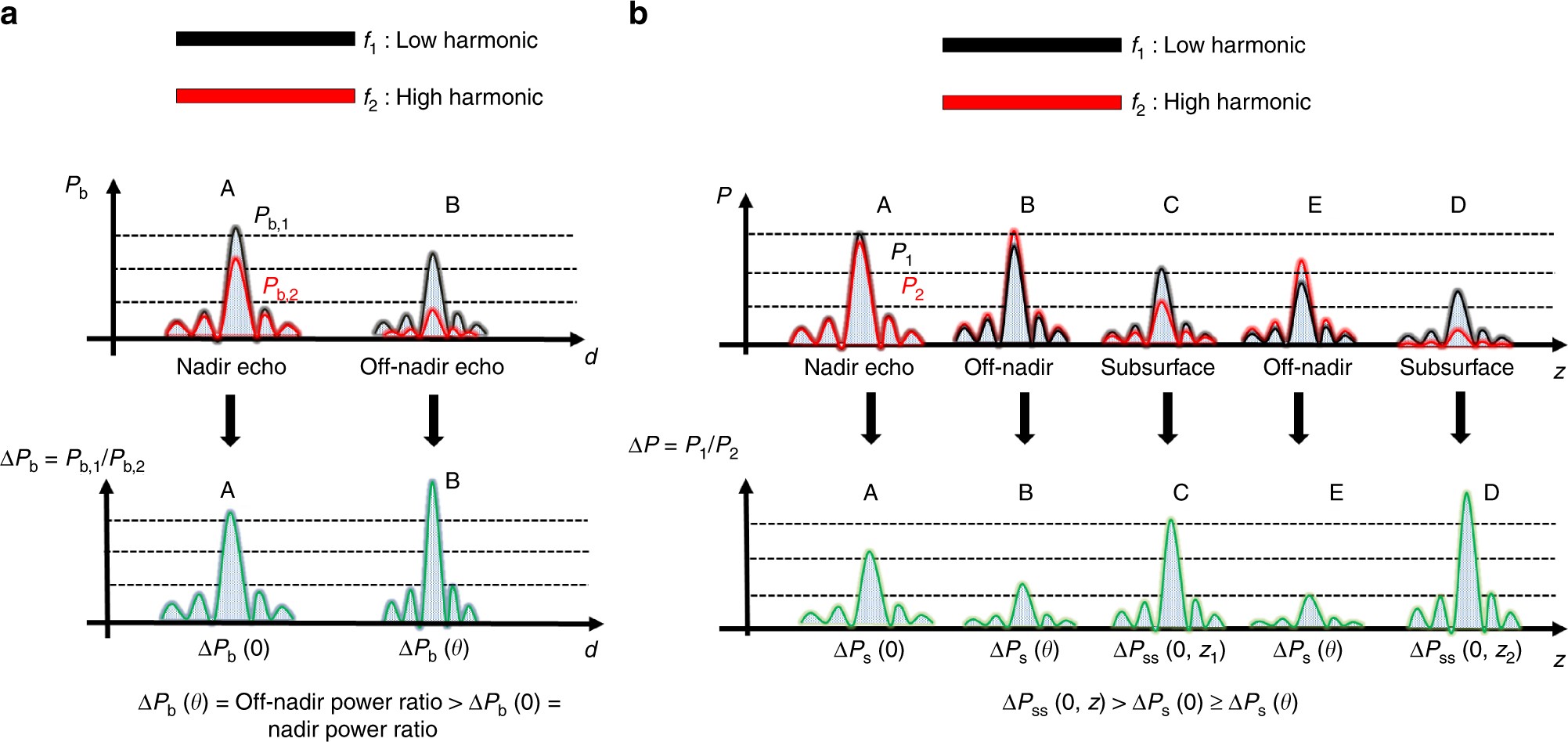

Fig. 5
Bats and radar sounder disambiguation strategy. Visual examples on how bats and radar sounders are able to disambiguate clutter on the power return at different harmonics. a For the bat case, P b,1 and P b,2 are the echo power received as a function of the distance at the two different harmonics. Points A and B are referred to Fig. 4a. b For the radar sounder case, P 1 and P 2 are the echo power received as a function of the distance at two different harmonics. Points A to E are referred to Fig. 4b
