Fig. 2
From: Optimal compressed representation of high throughput sequence data via light assembly

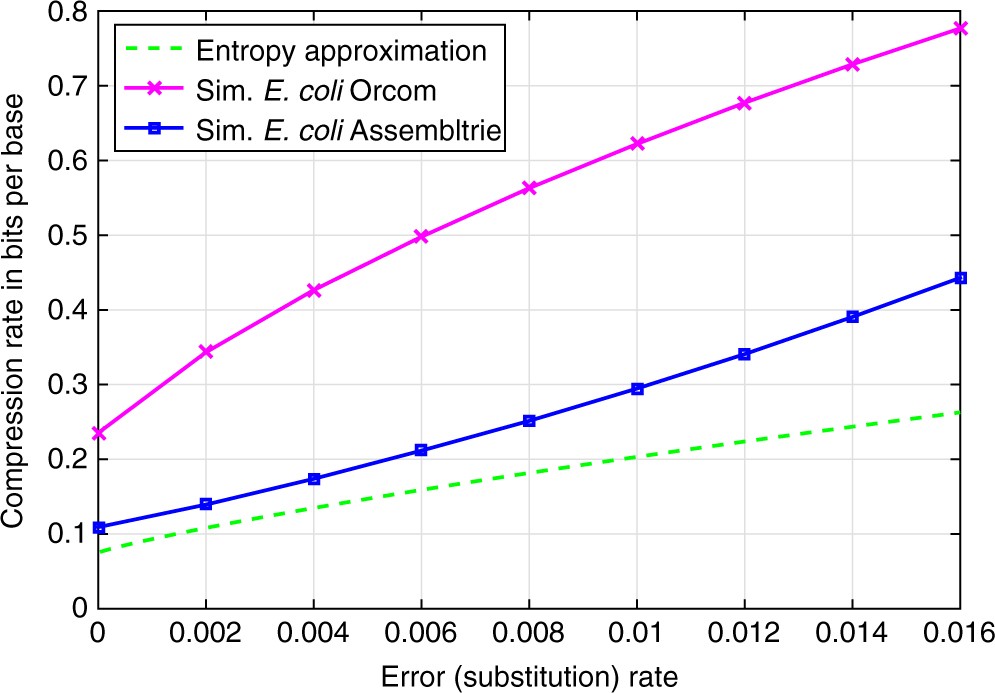

Compression performance of Assembltrie as a function of error rate. The compression ratio achieved by Assembltrie is close to our information theoretic approximation on simulated reads from E.coli K-12 DH10B genome (the data set involves 1.8 M “reads,” i.e., substrings of length L = 101, sampled uniformly with simulated errors)
